Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
1990
>>
MPV 2WD V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Computers and Control Systems
Computers and Control Systems
Engine Control. 3.0L:

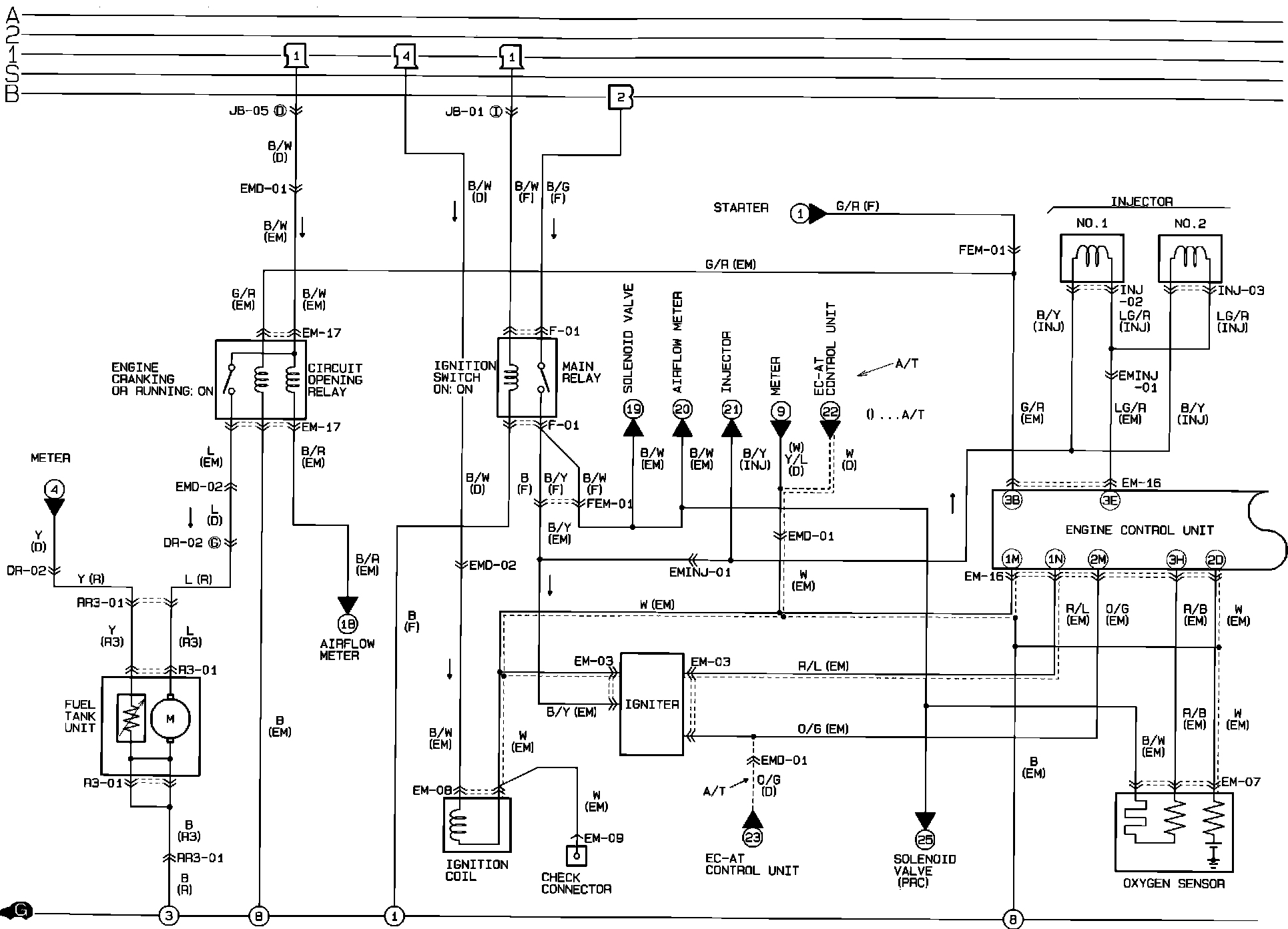

Engine Control. 3.0L:

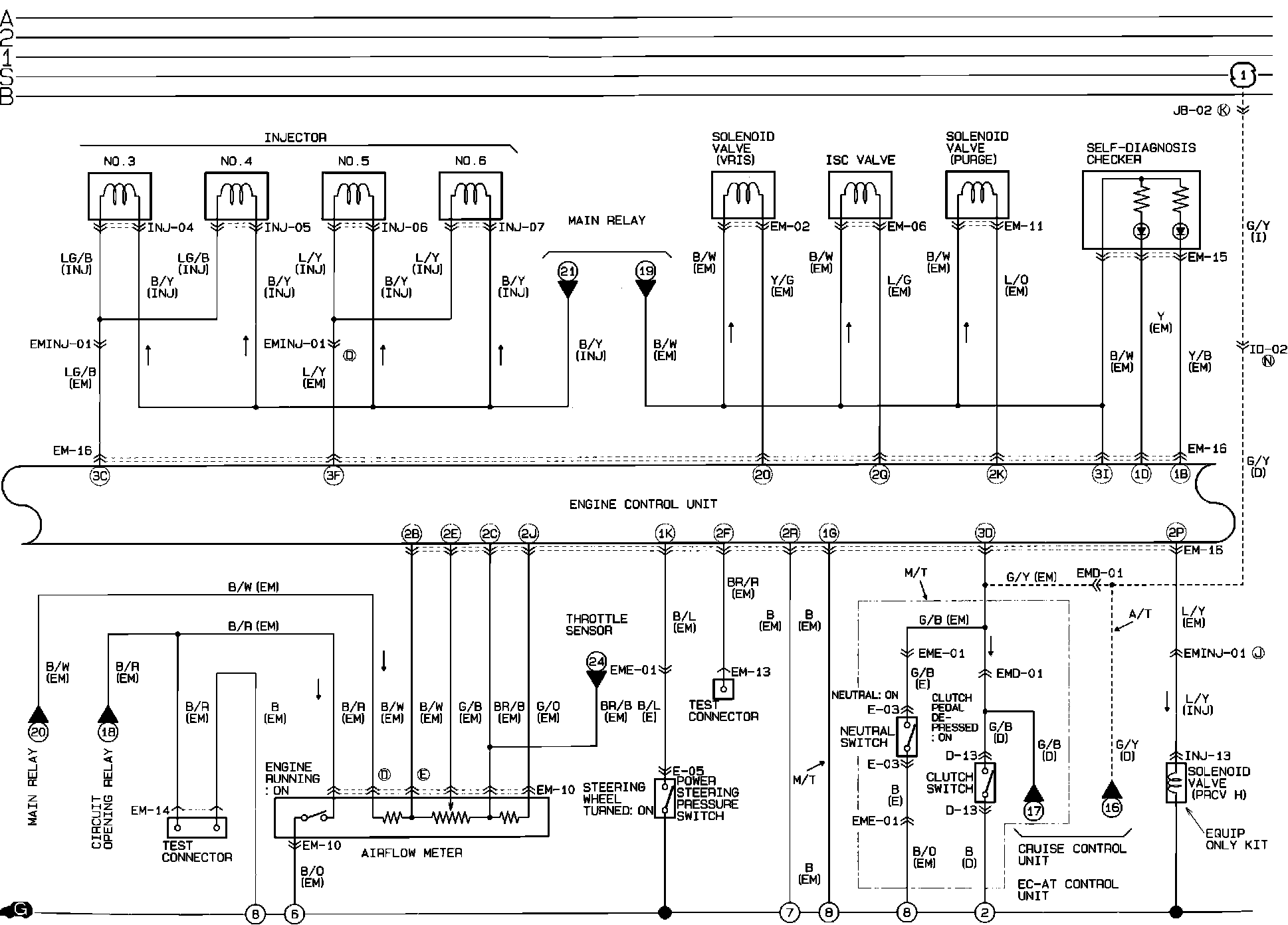

Engine Control. 3.0L:
