Connector Views

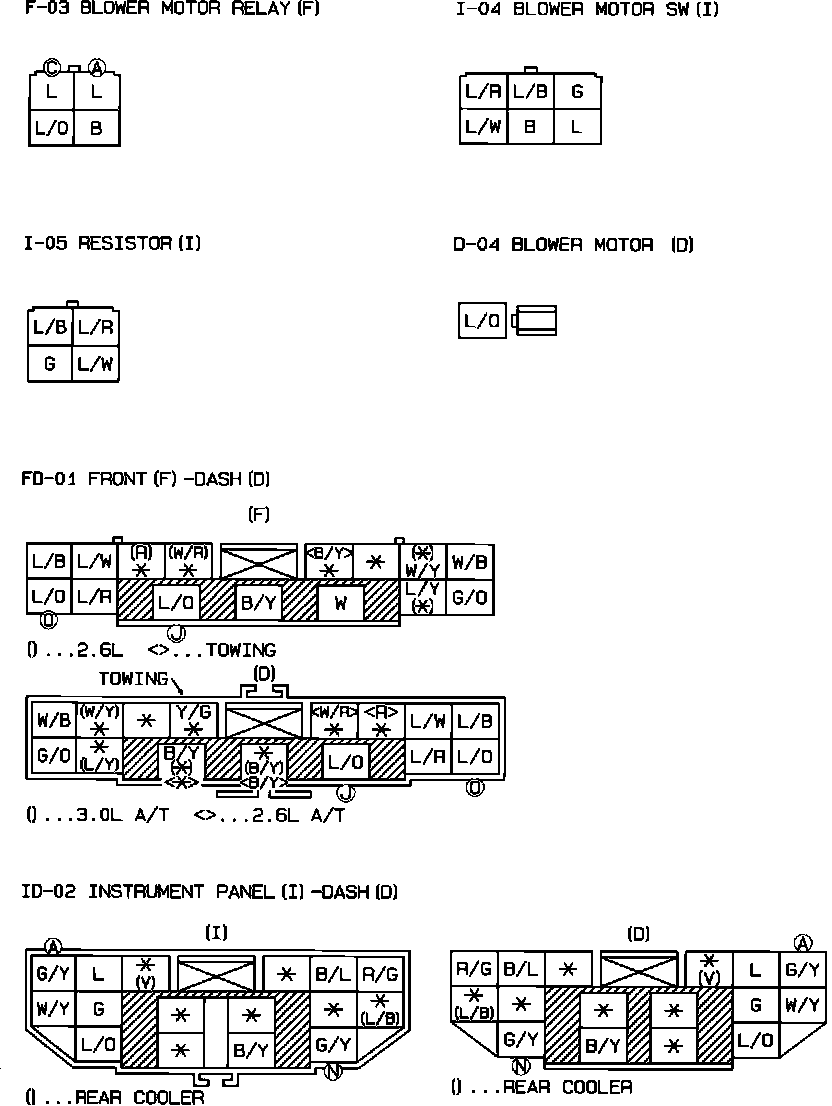

Blower Motor. Connector Identification:

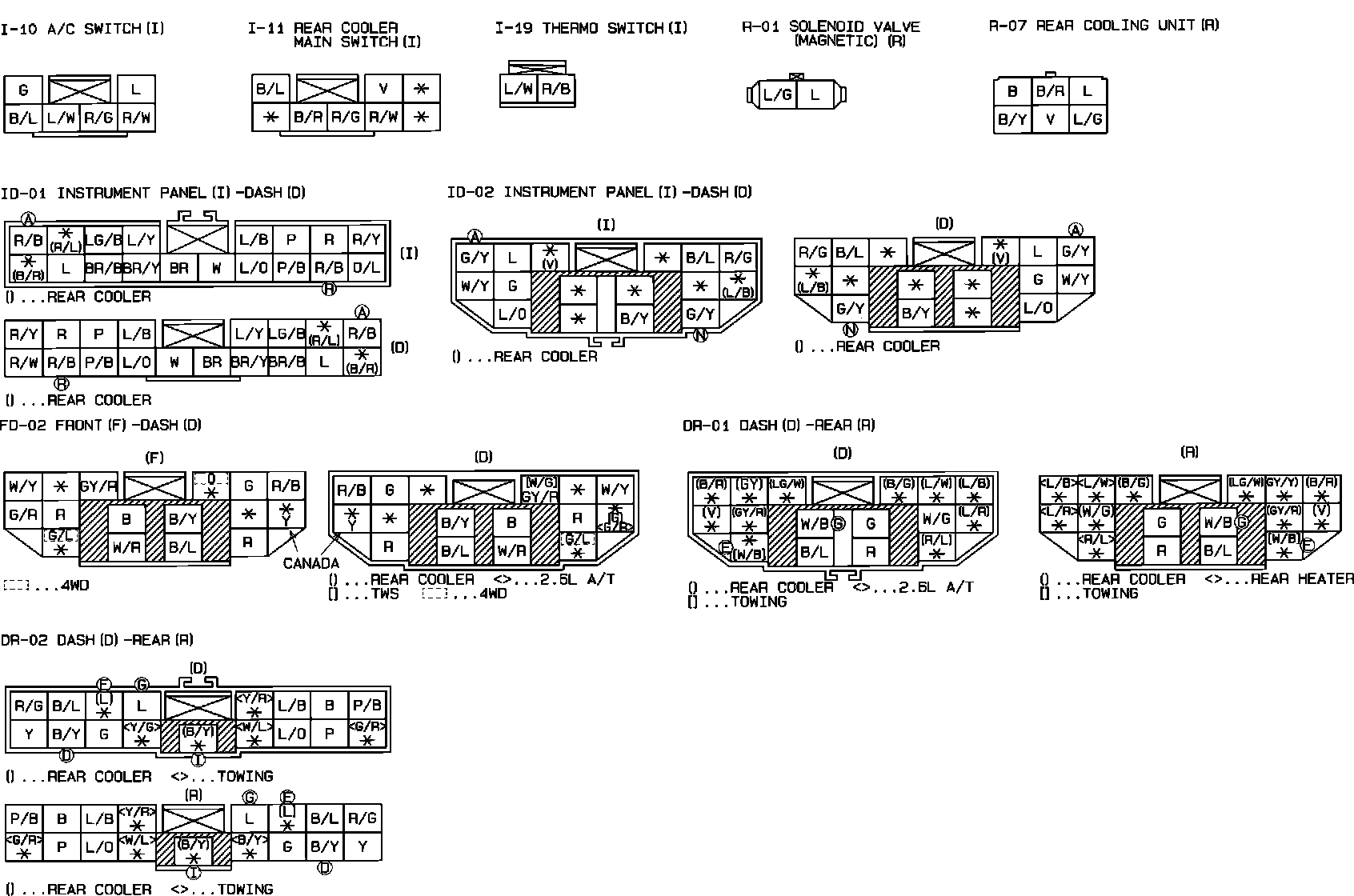

Rear Heater. Connector Identification:

Cooler. Connector Identification:

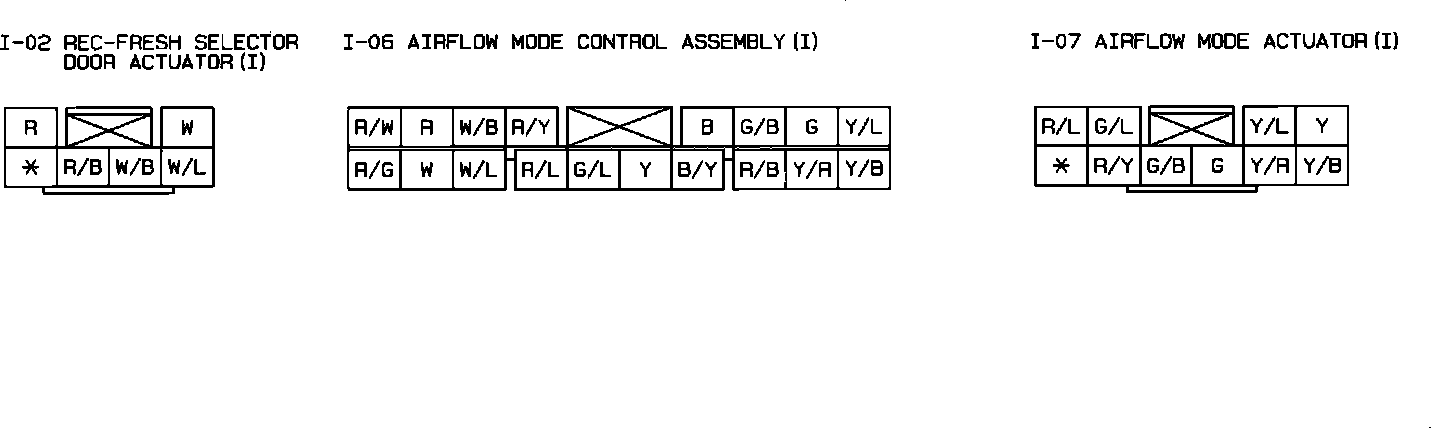

Logical Mode Control System. Connector Identification:
