Evaporator Temperature Sensor / Switch: Testing and Inspection

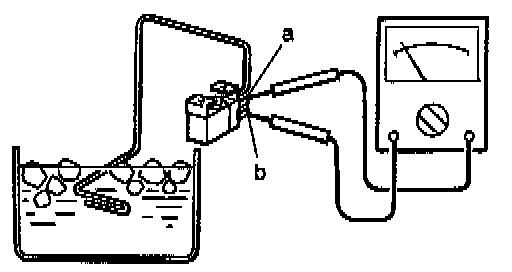

Thermoswitch Inspection1. Immerse the sensing bulb in a container of ice water.

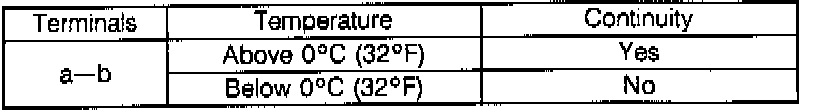

2. Check continuity between terminals of the switch as specified.
3. If not as specified, replace the thermoswitch.
