MPV 2WD V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>
Connector Locations
>>
4WD
4WD

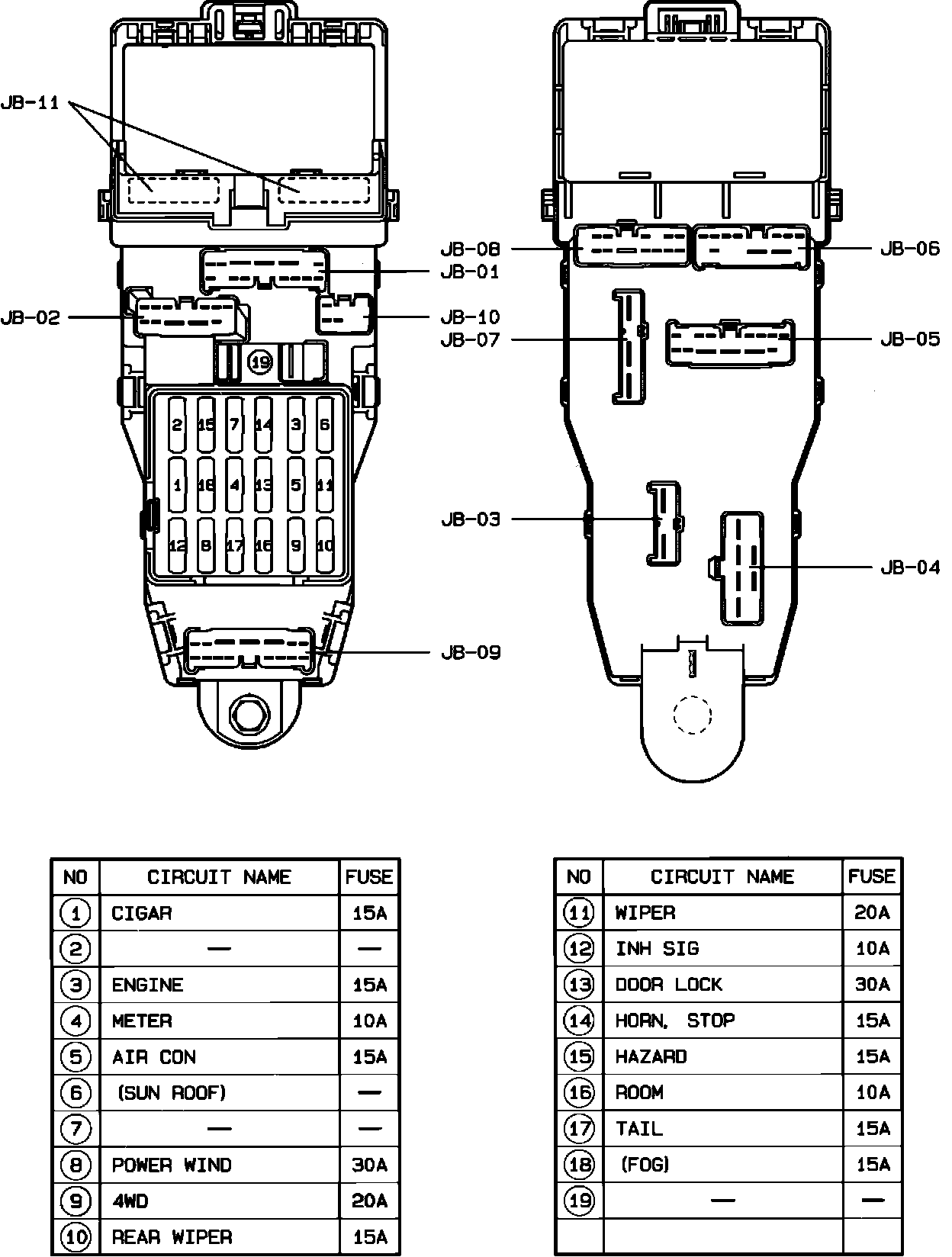

Fuse Panel. 4WD:
