Mazda
>>
1990
>>
MPV 2WD V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Control Module
>>
Locations
>>
Connector Locations
Connector Locations

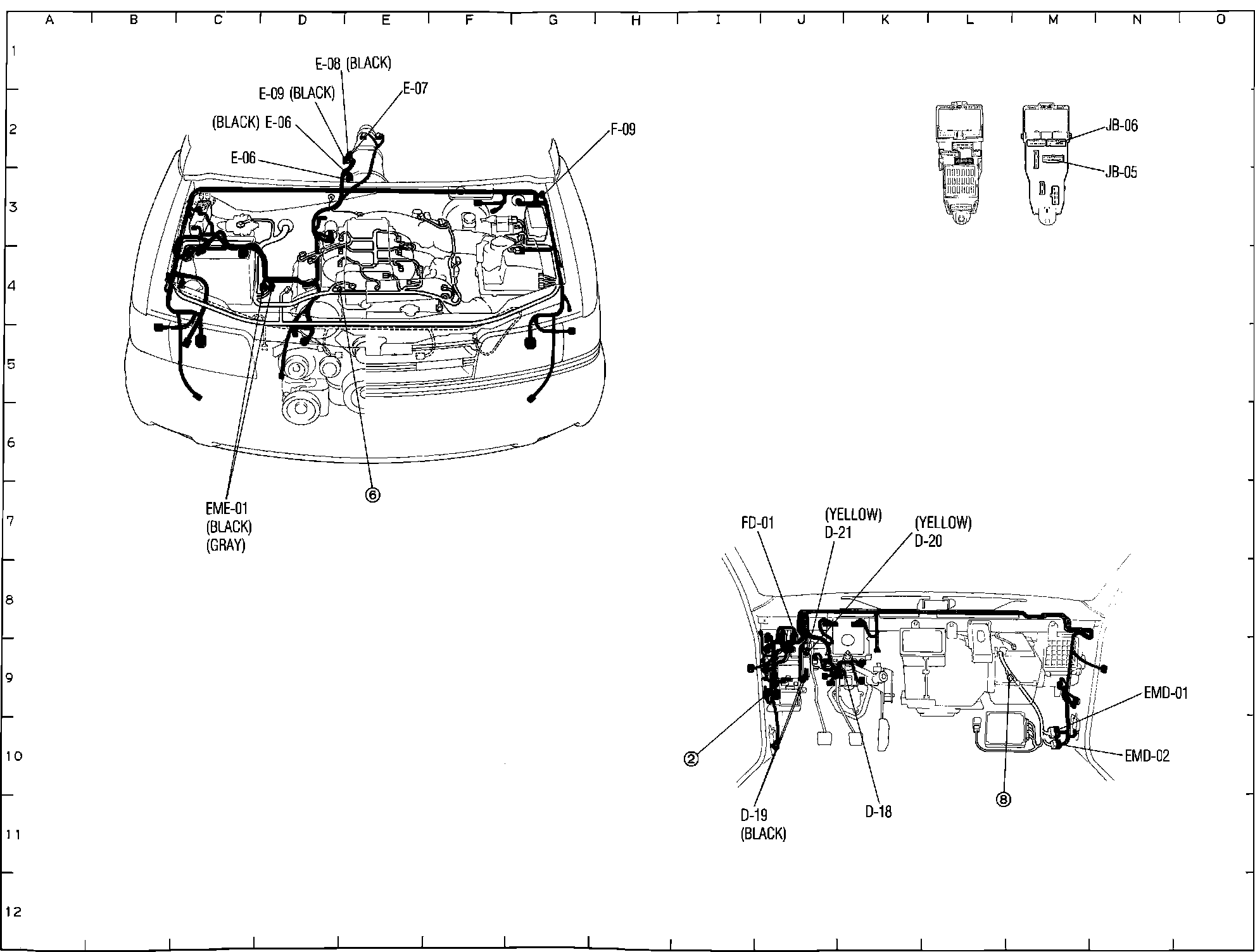

Multi Mode 4WD Control. Harness Locations:

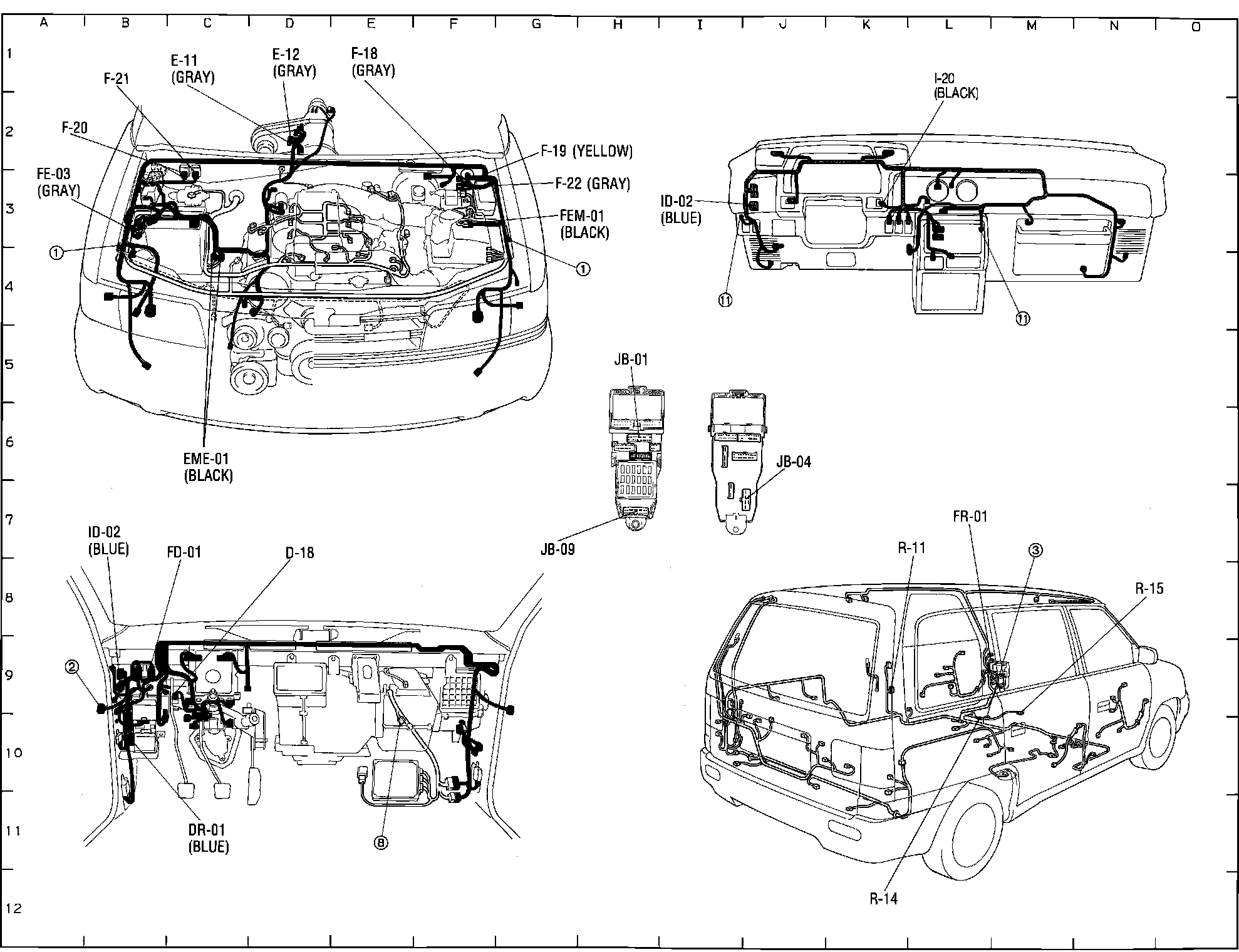

Automatic Transmission Control Unit. Harness Locations:
