Timer/Control Unit, Accessory Control
Timer/Control Unit, Accessory Control

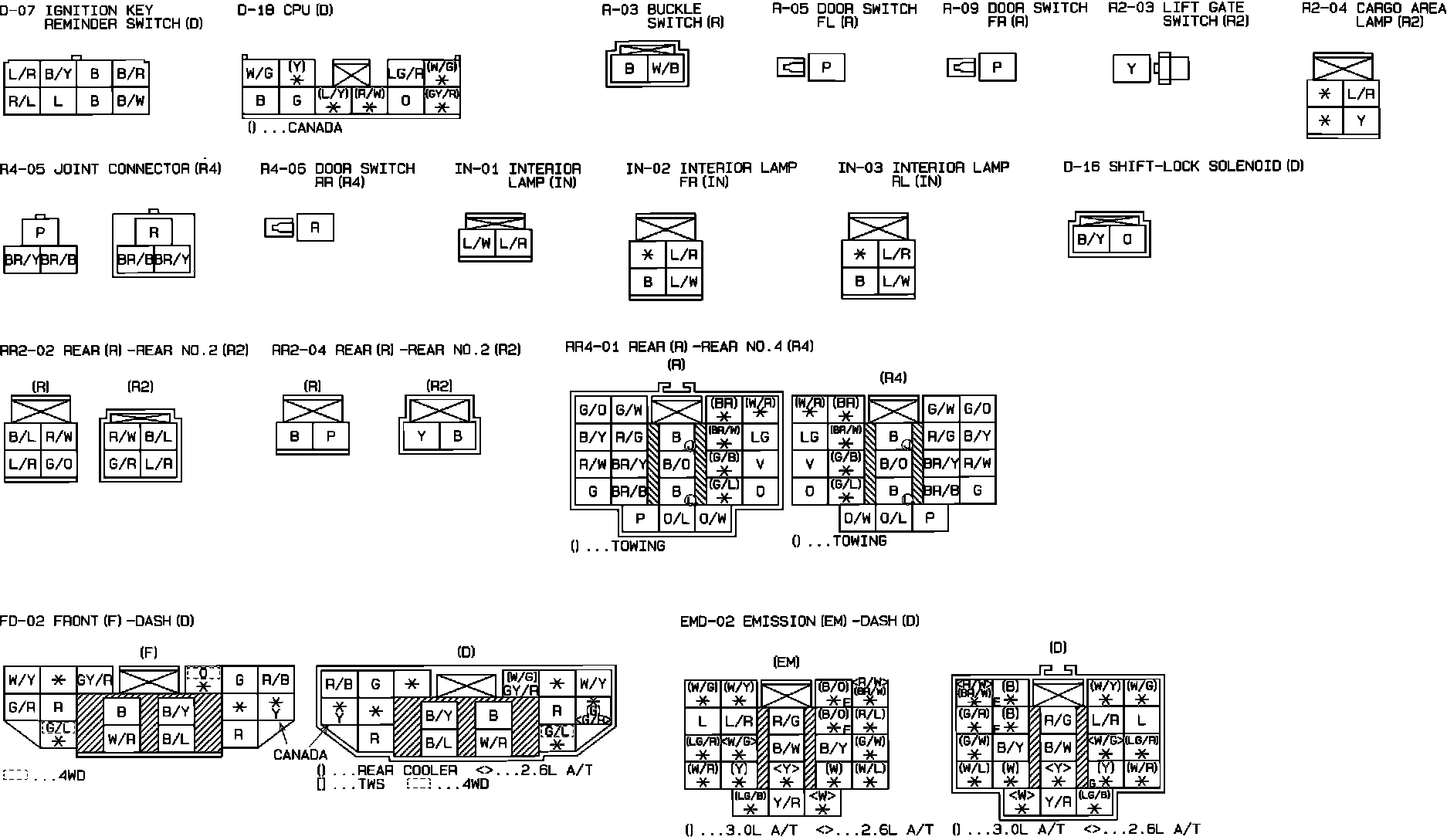

Interior Lamps, Shift-Lock System & Central Processing Unit. Connector Identification:
