Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
1990
>>
MPV 4WD V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Locations
>>
Connector Locations
Connector Locations

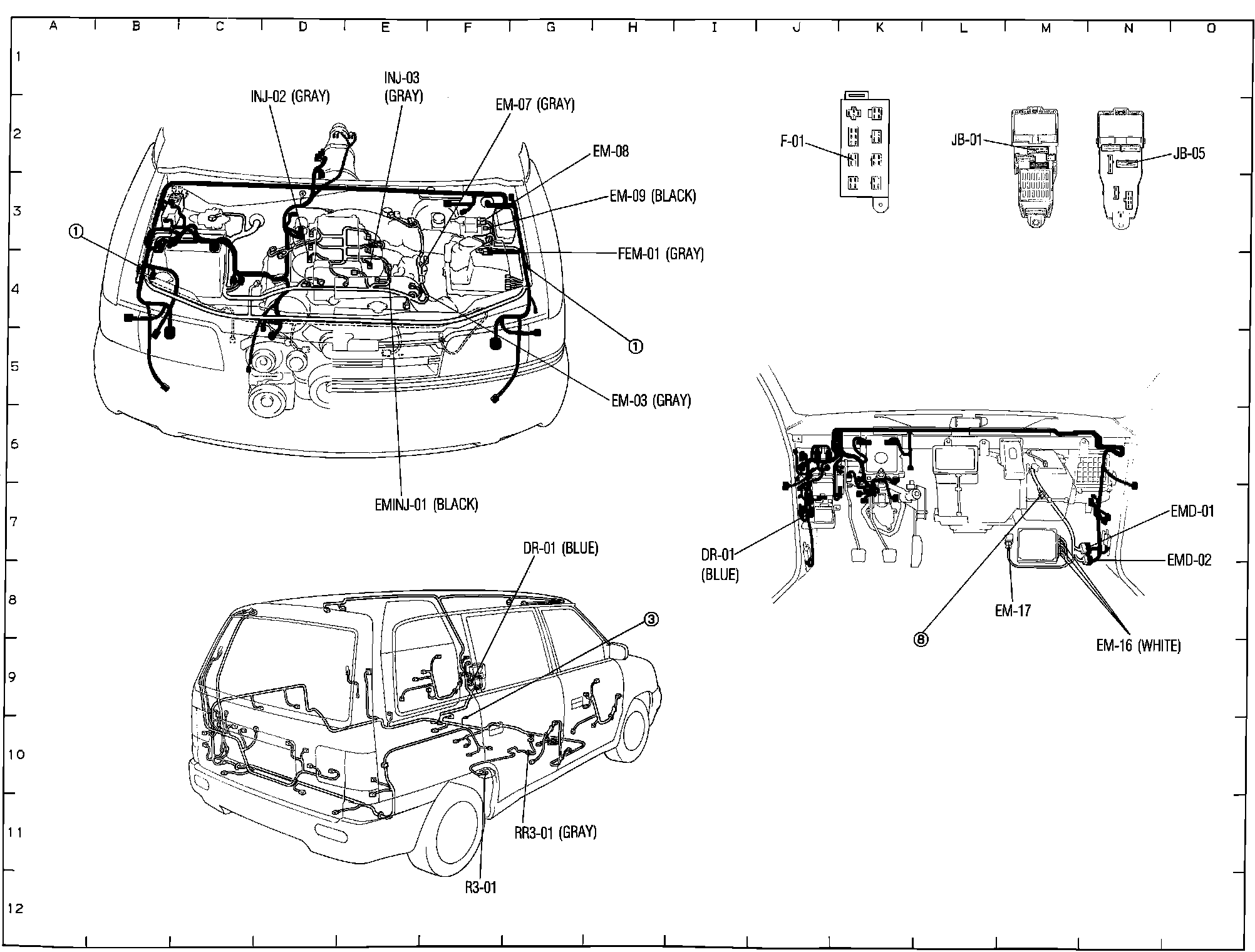

Engine Control. 3.0L. Harness Locations:

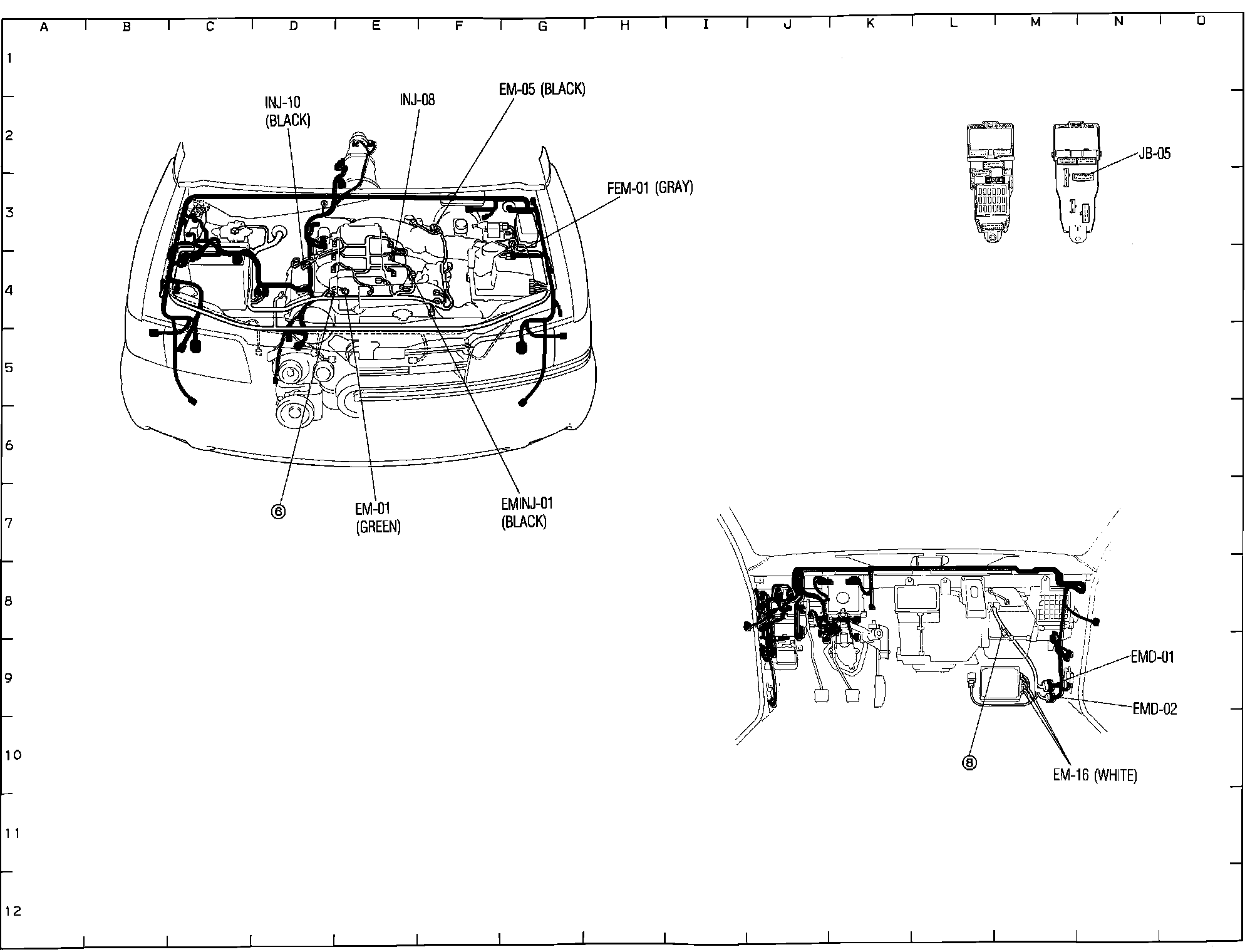

Engine Control. 3.0L. Harness Locations:

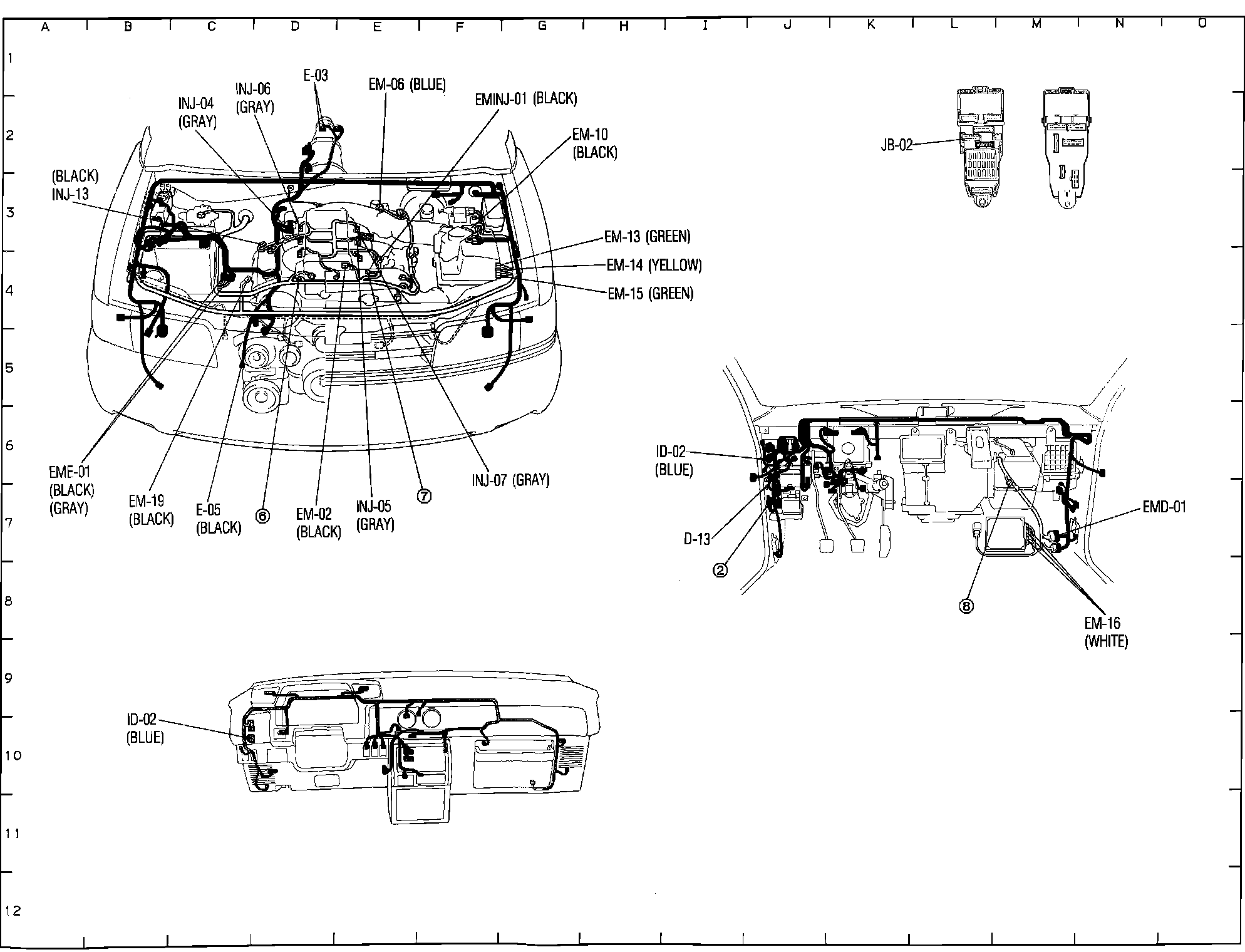

Engine Control. 3.0L. Harness Locations:
