Antilock Brakes / Traction Control Systems
Antilock Brakes / Traction Control Systems

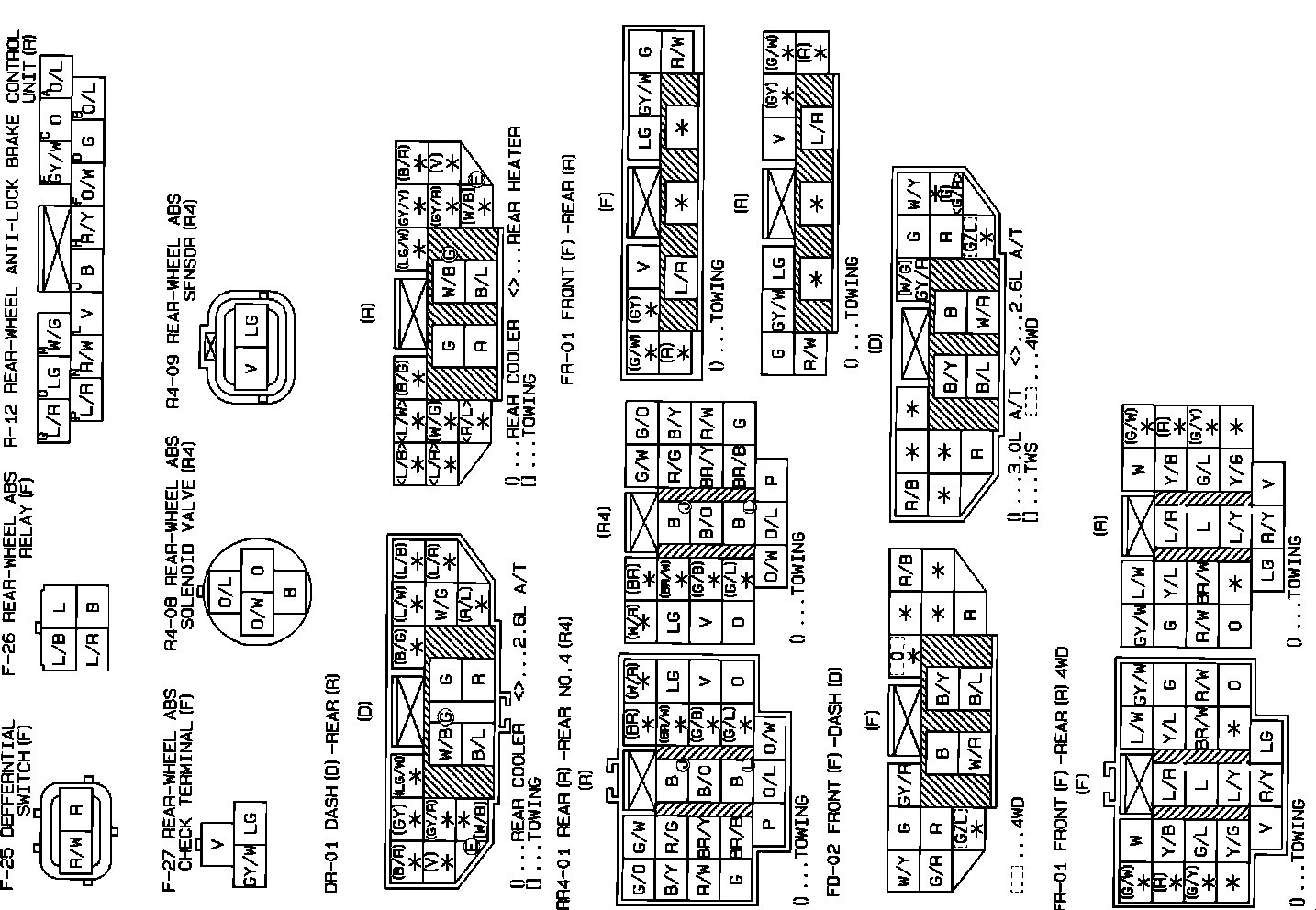

Rear-Wheel Anti-Lock Brake. Connector Identification:
