Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
1990
>>
MPV L4-2606cc 2.6L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Computers and Control Systems
Computers and Control Systems

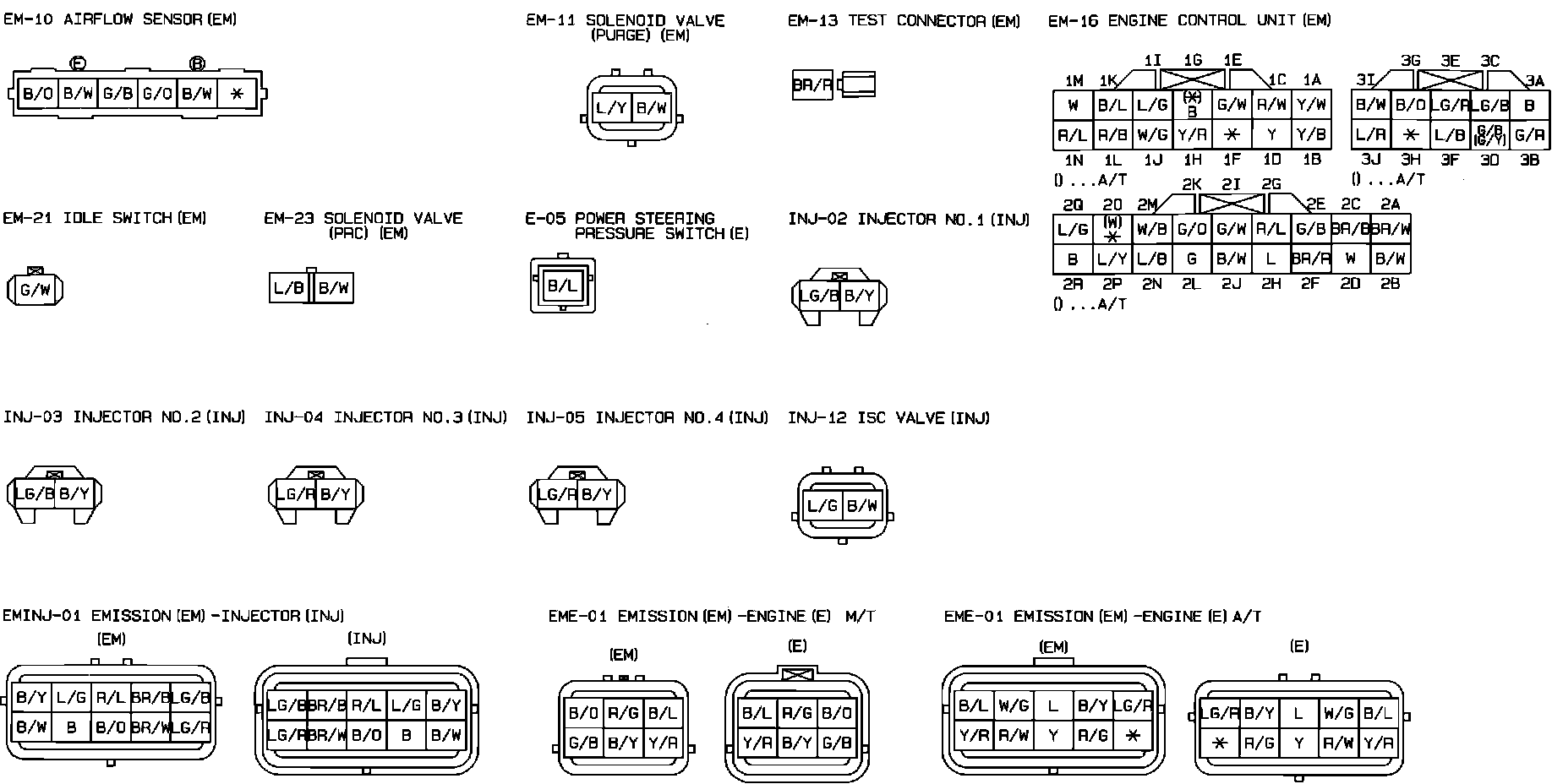

Engine Control. 2.6L. Connector Identification:

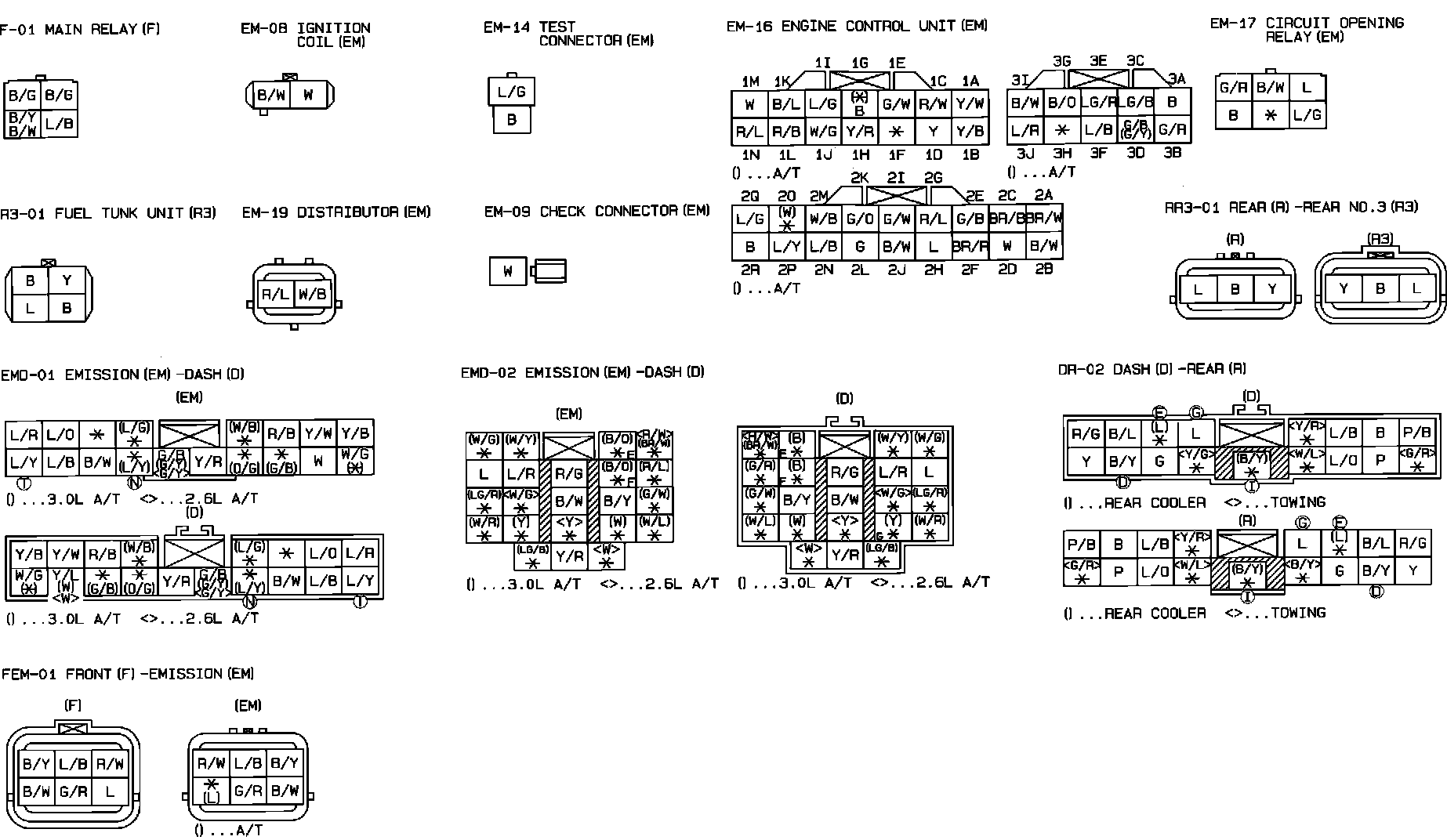

Engine Control. 2.6L. Connector Identification:

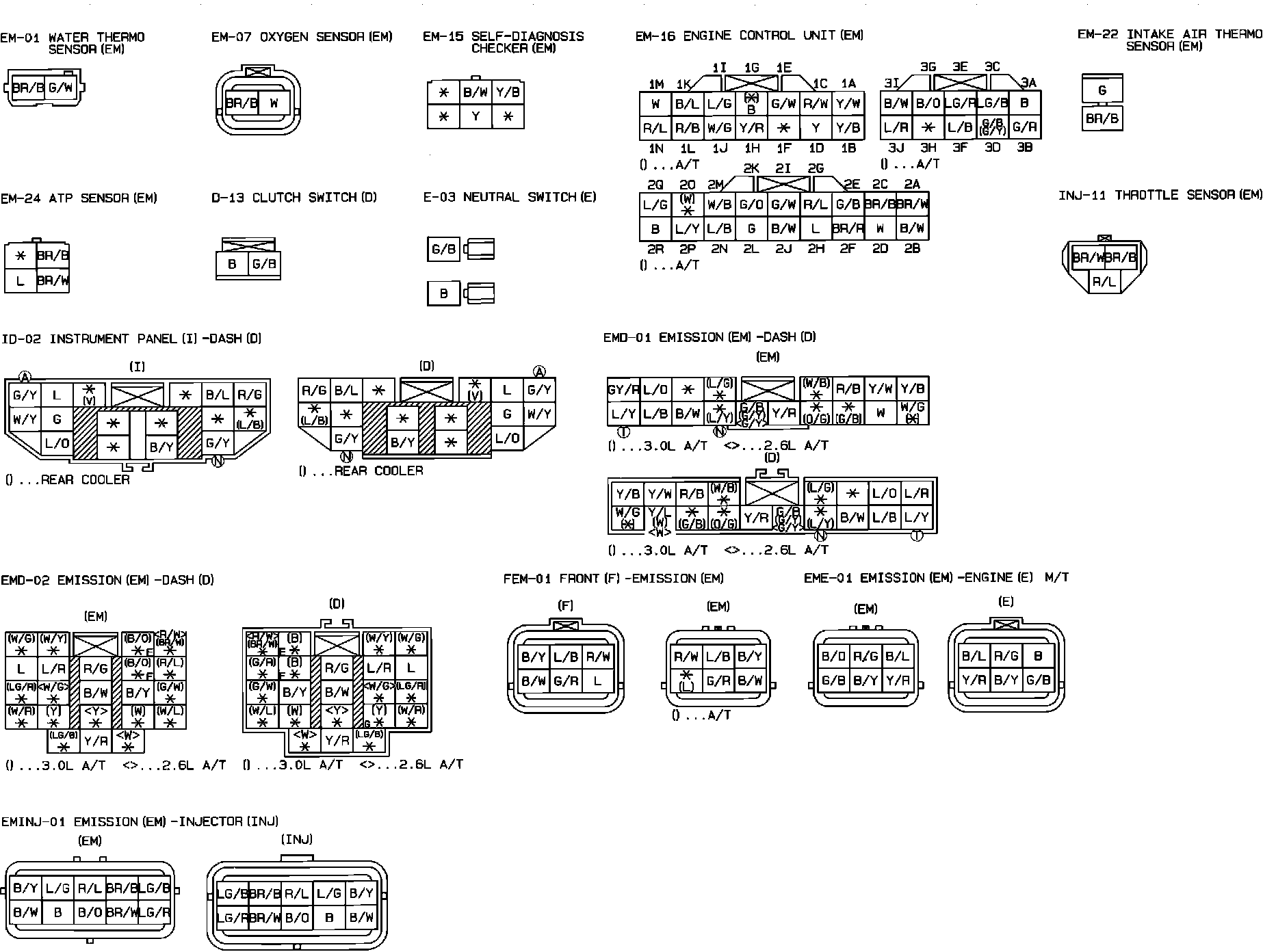

Engine Control. 2.6L. Connector Identification:
