Home
>>
Mazda
>>
1990
>>
MPV L4-2606cc 2.6L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Marker Lamp
Marker Lamp

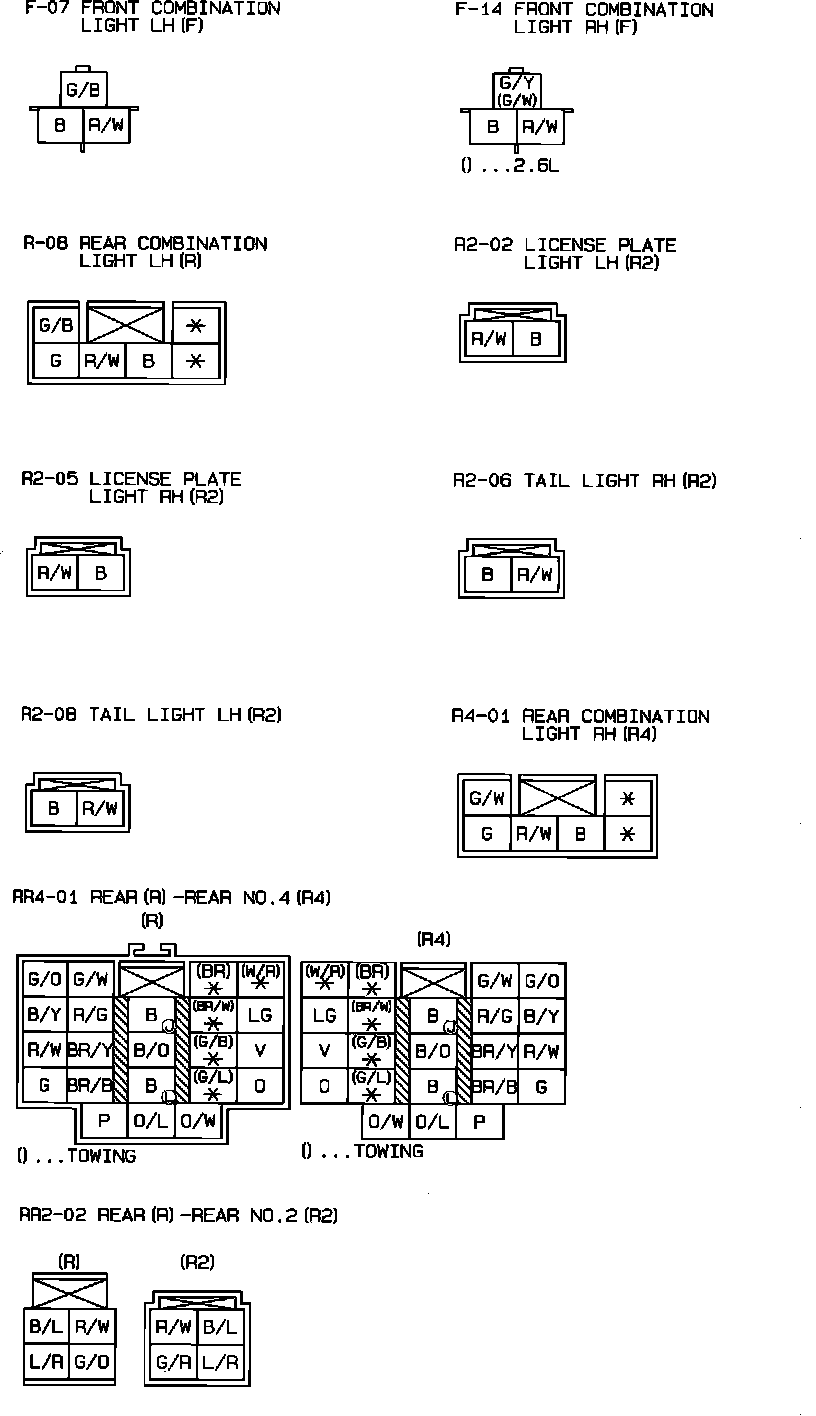

Tail, License & Side Marker Lights. Connector Identification:
