Radio/Stereo
Radio/Stereo

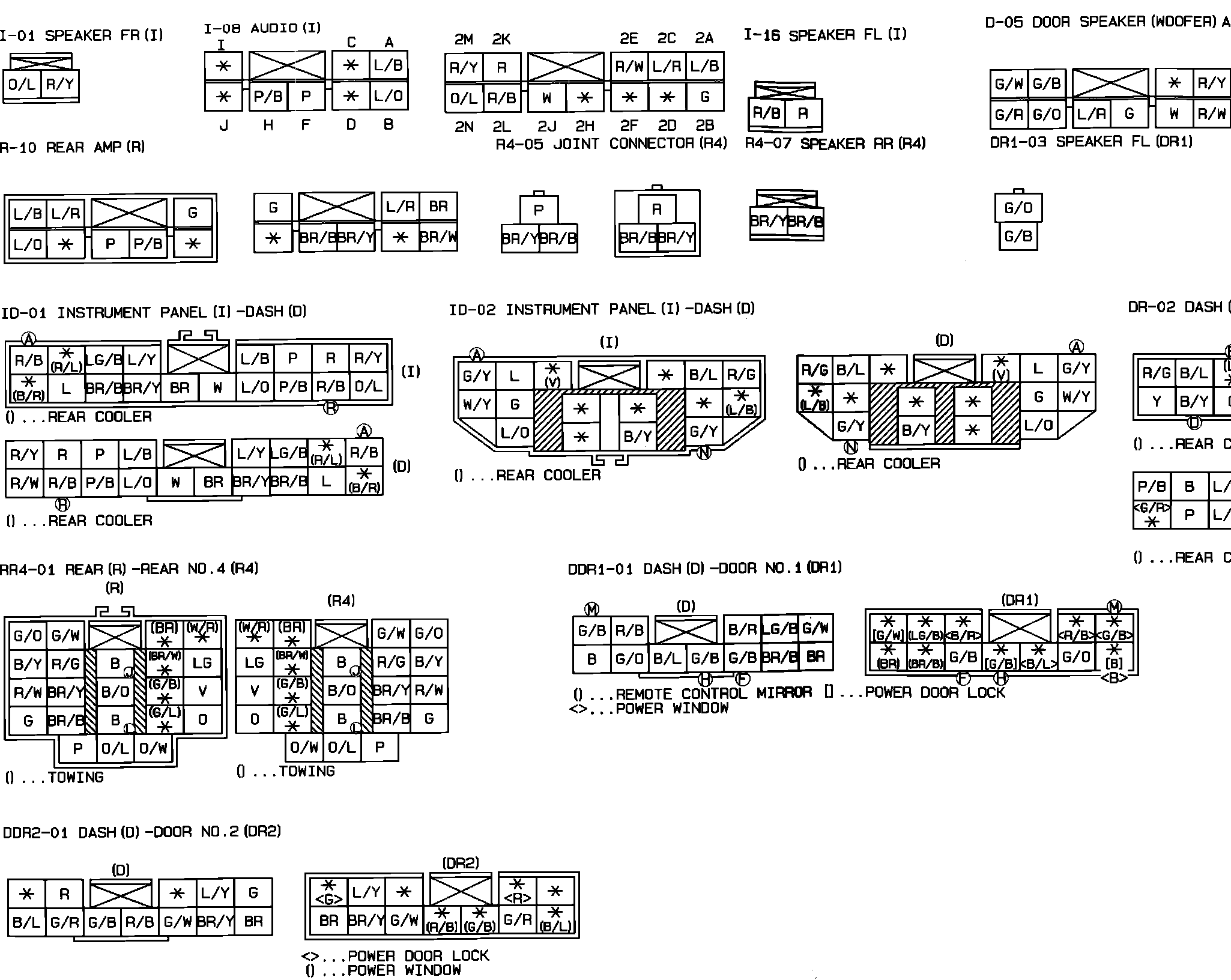

Radio. AM/FM & Cassette. Connector Identification:

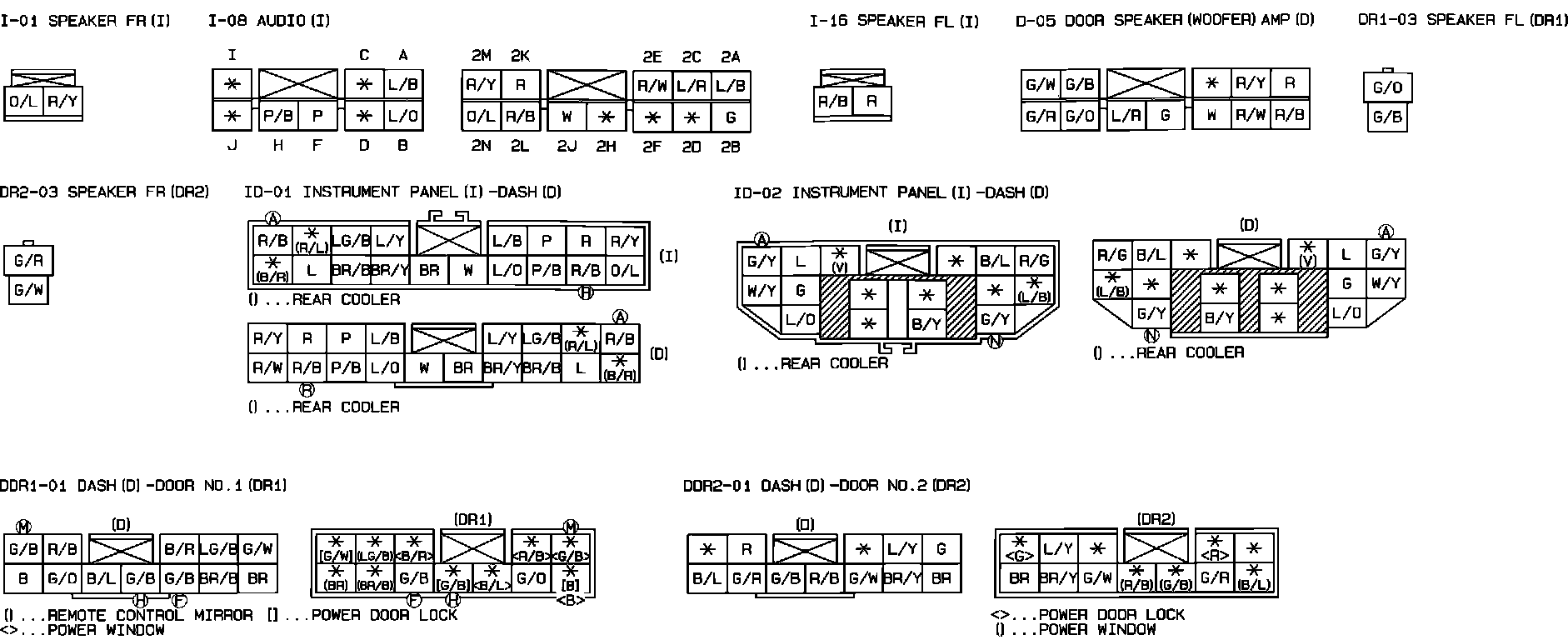

Radio. AM/FM & Cassette. Connector Identification:

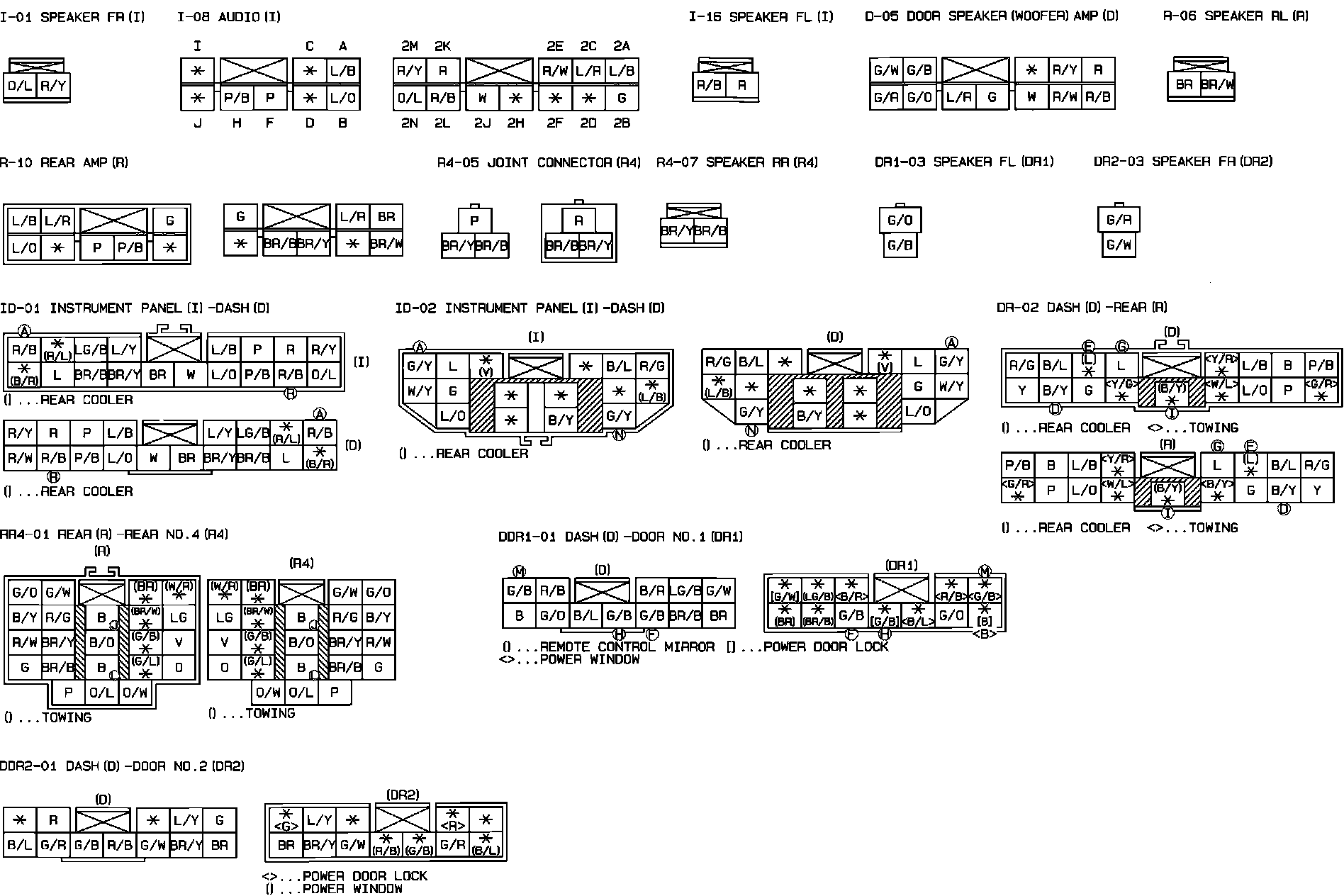

� �iRadio. AM/FM, Cassette & CD. Connector Identification:
