Mazda
>>
1990
>>
MPV L4-2606cc 2.6L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Windshield Washer Motor
>>
Rear
Rear

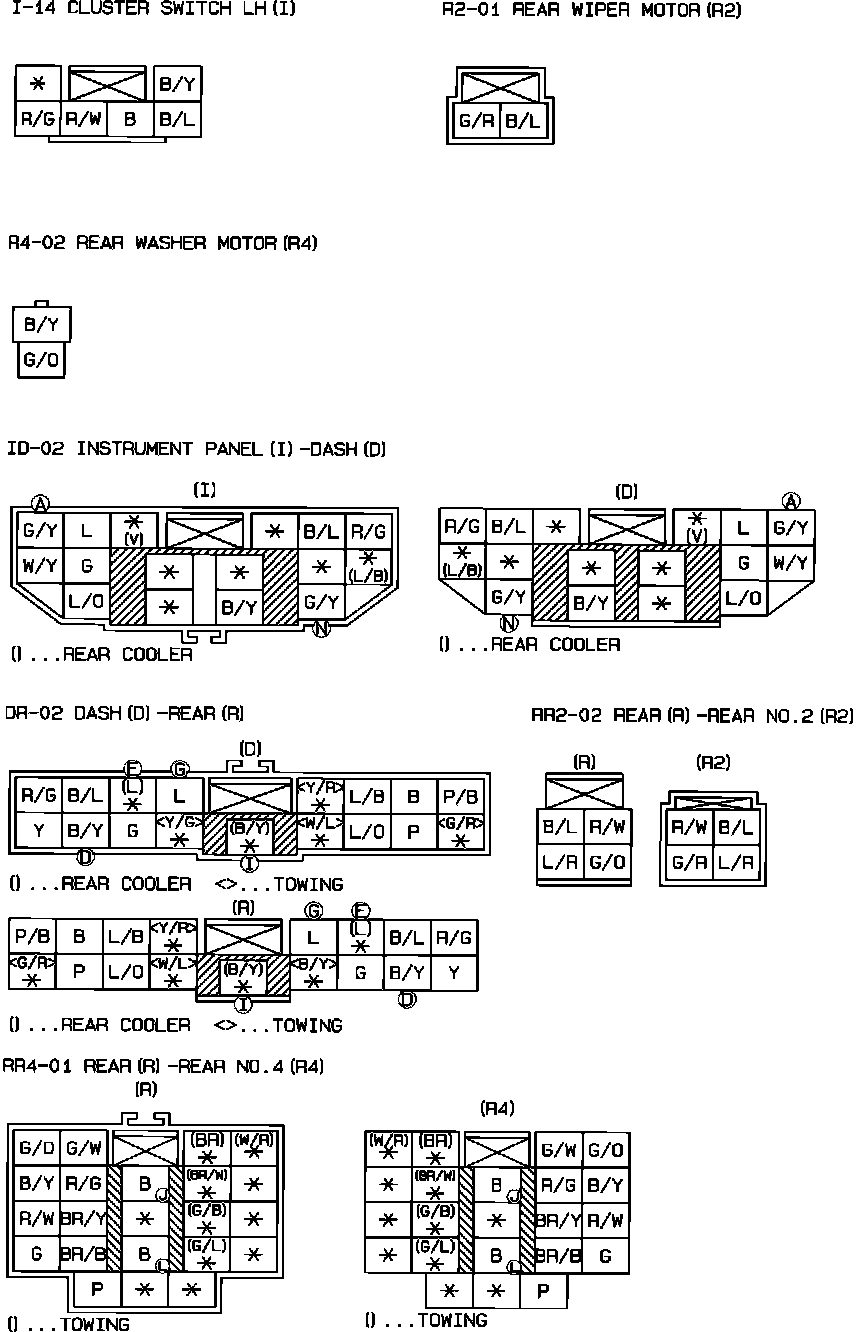

Rear Windshield Wiper/Washer. Connector Identification:
