Front

Blower Motor Inspection




1. Remove the passenger-side lower panel and undercover.
2. Disconnect the blower motor connector.

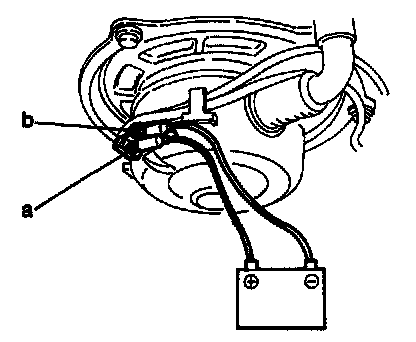

3. Check that the blower motor runs when connecting battery voltage to terminal a and ground terminal b.
4. If the blower motor does not run, replace it.
