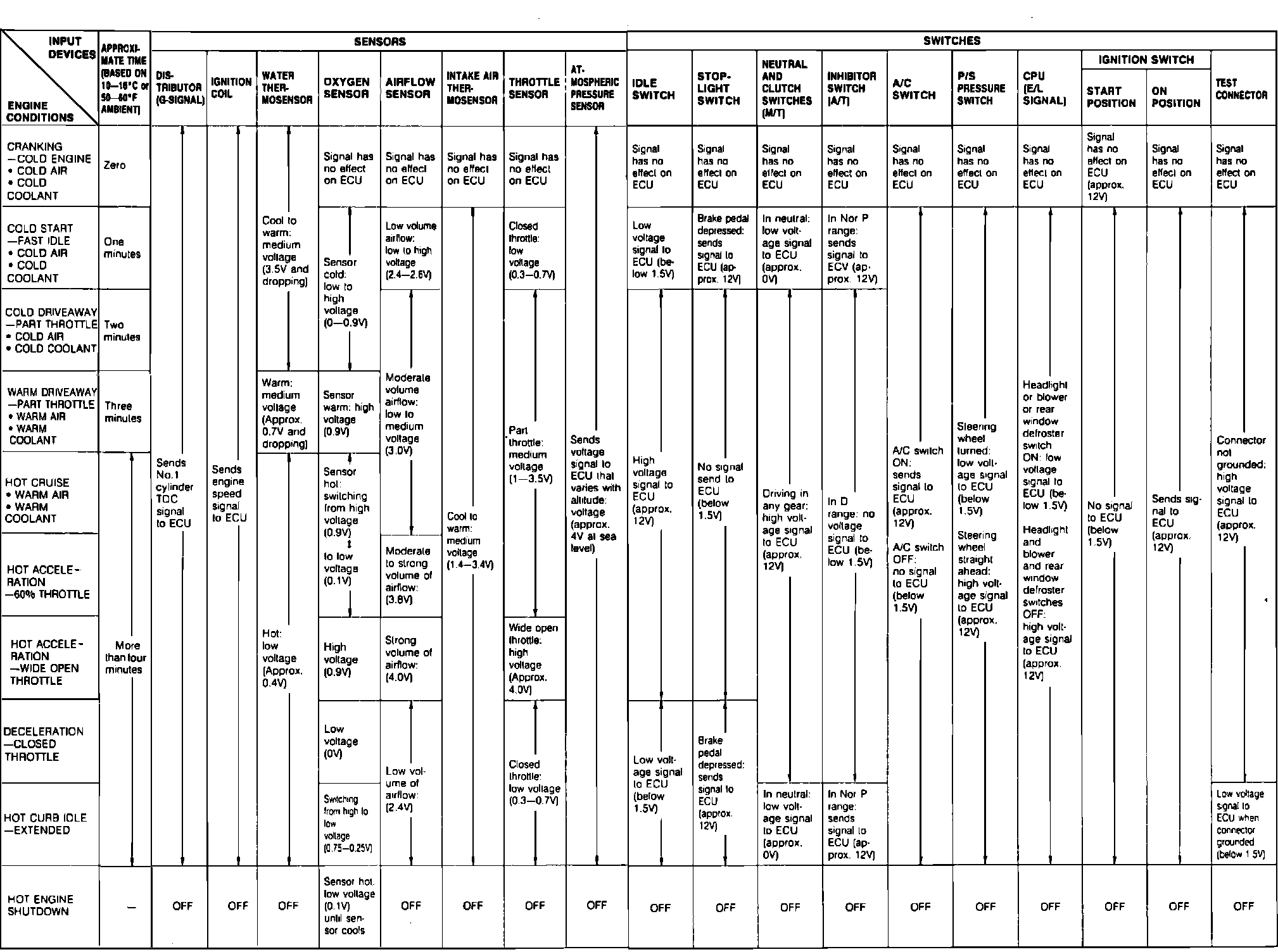

Input Devices and Engine Conditions

'5Input Devices And Engine Conditions:



Inputs/Engine Operating Conditions:
