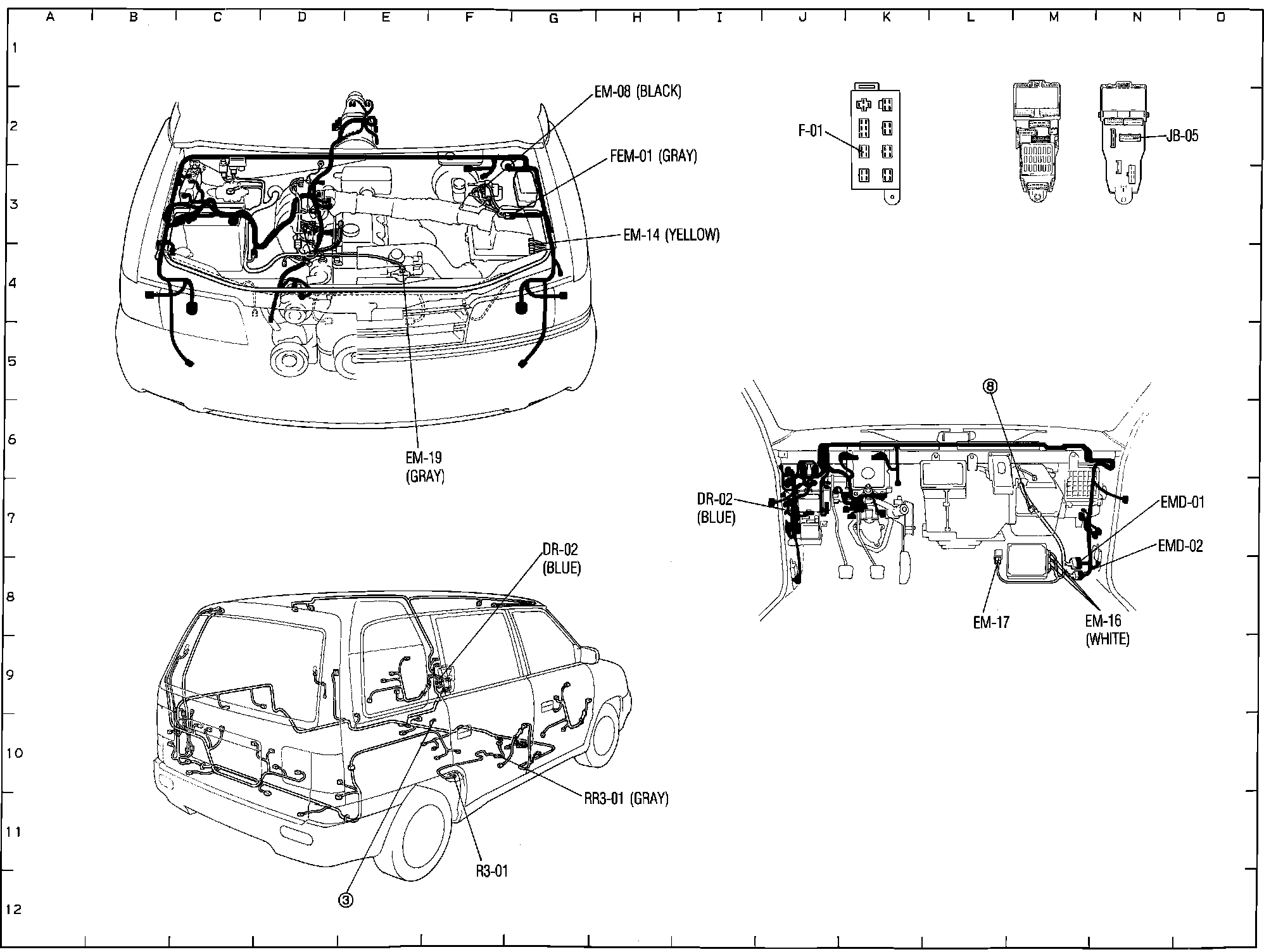

Engine Control. 2.6L. Harness Locations:

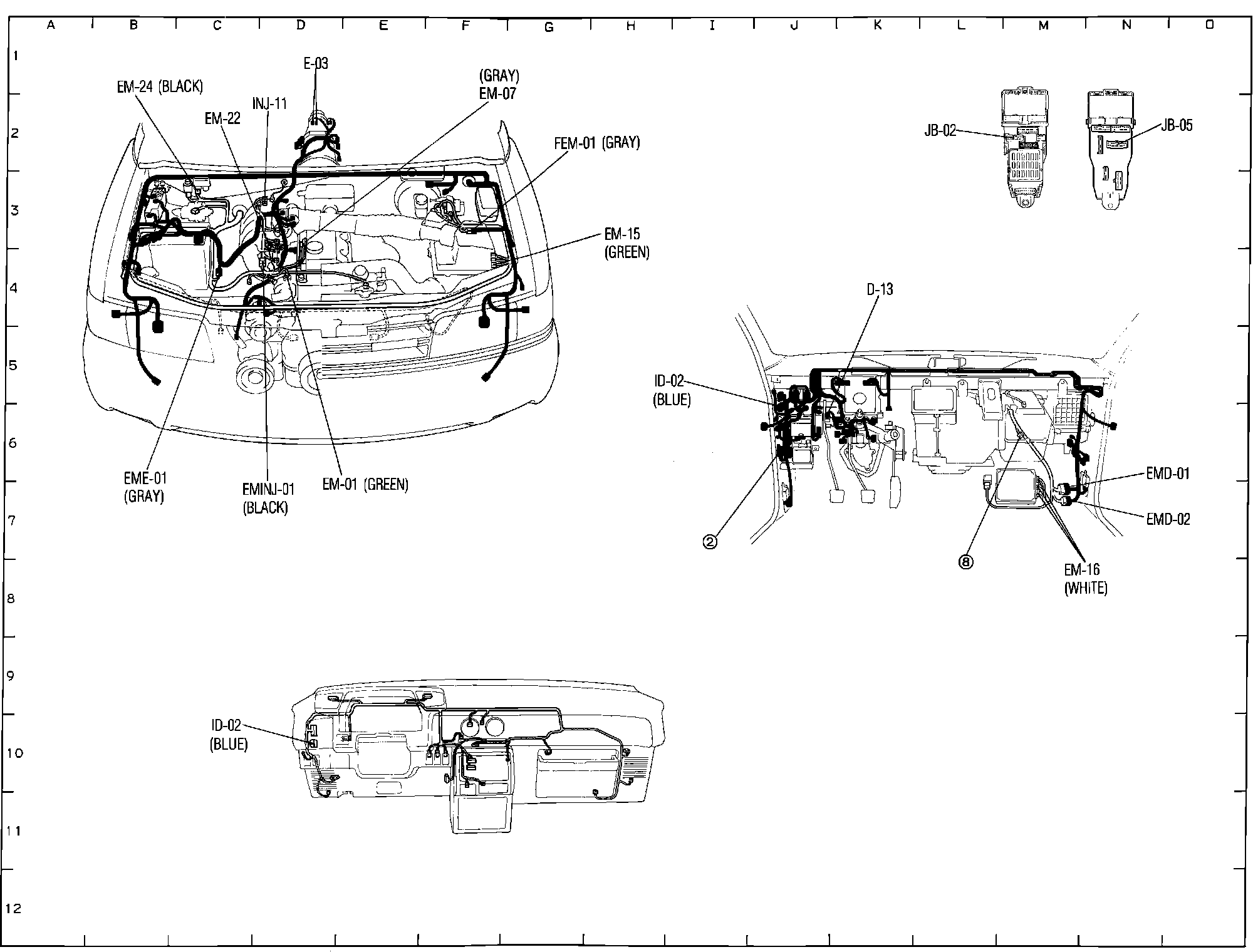

Engine Control. 2.6L. Harness Locations:

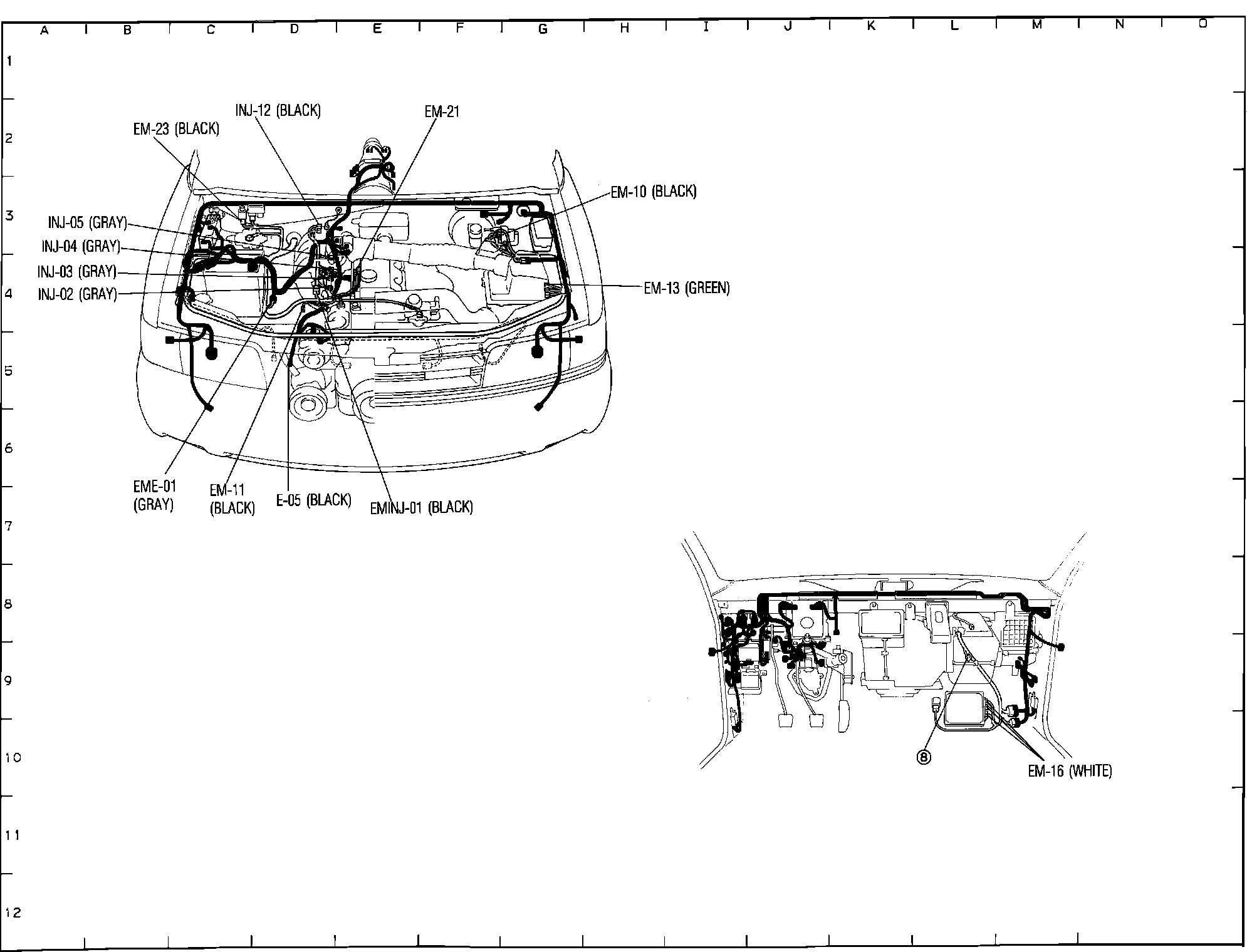

Engine Control. 2.6L. Harness Locations:
