Power and Ground Distribution: Locations

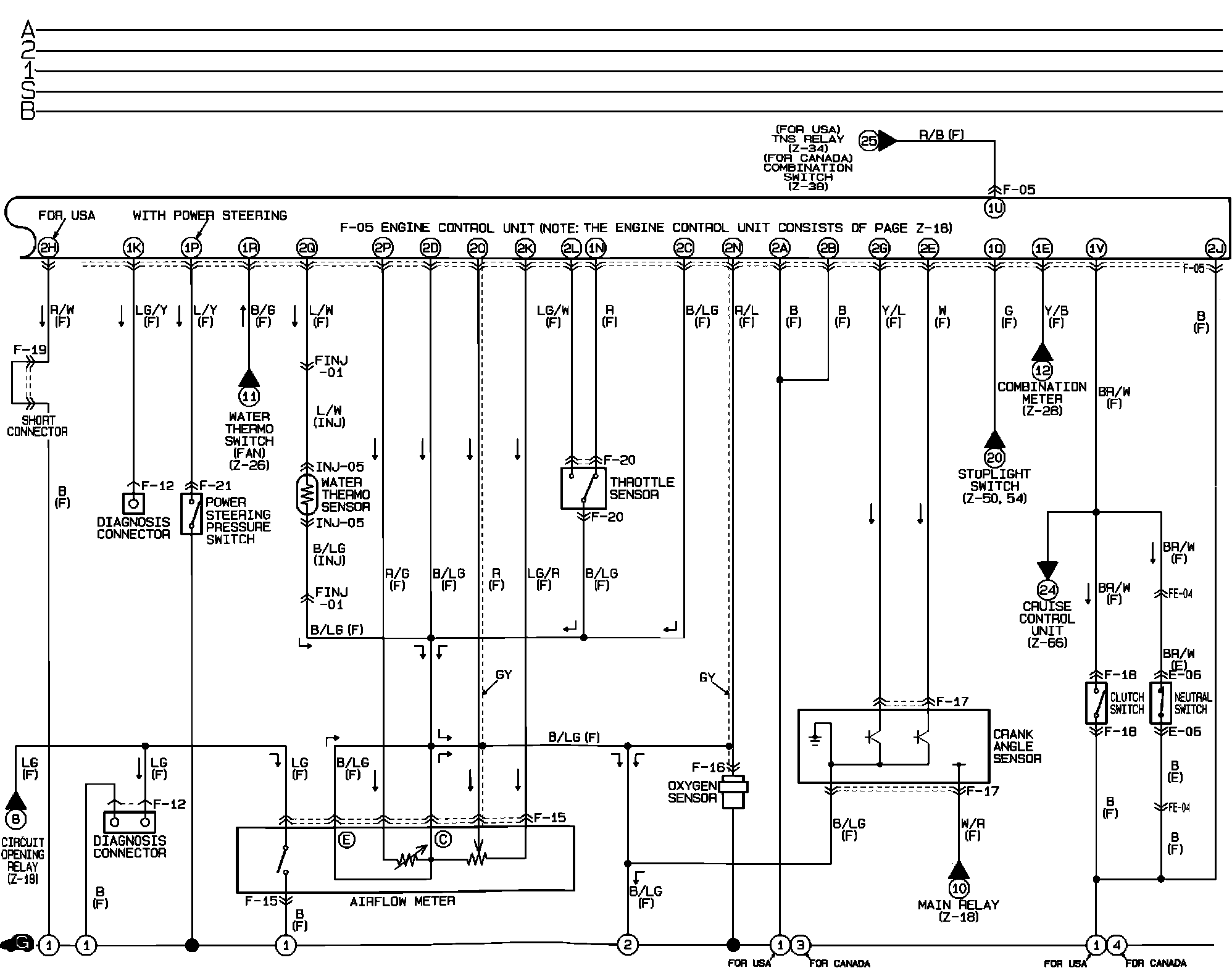

Engine Control System:

Engine Control System. Harness Locations:

ENGINE CONTROLS GROUND POINTS U.S. and CANADA

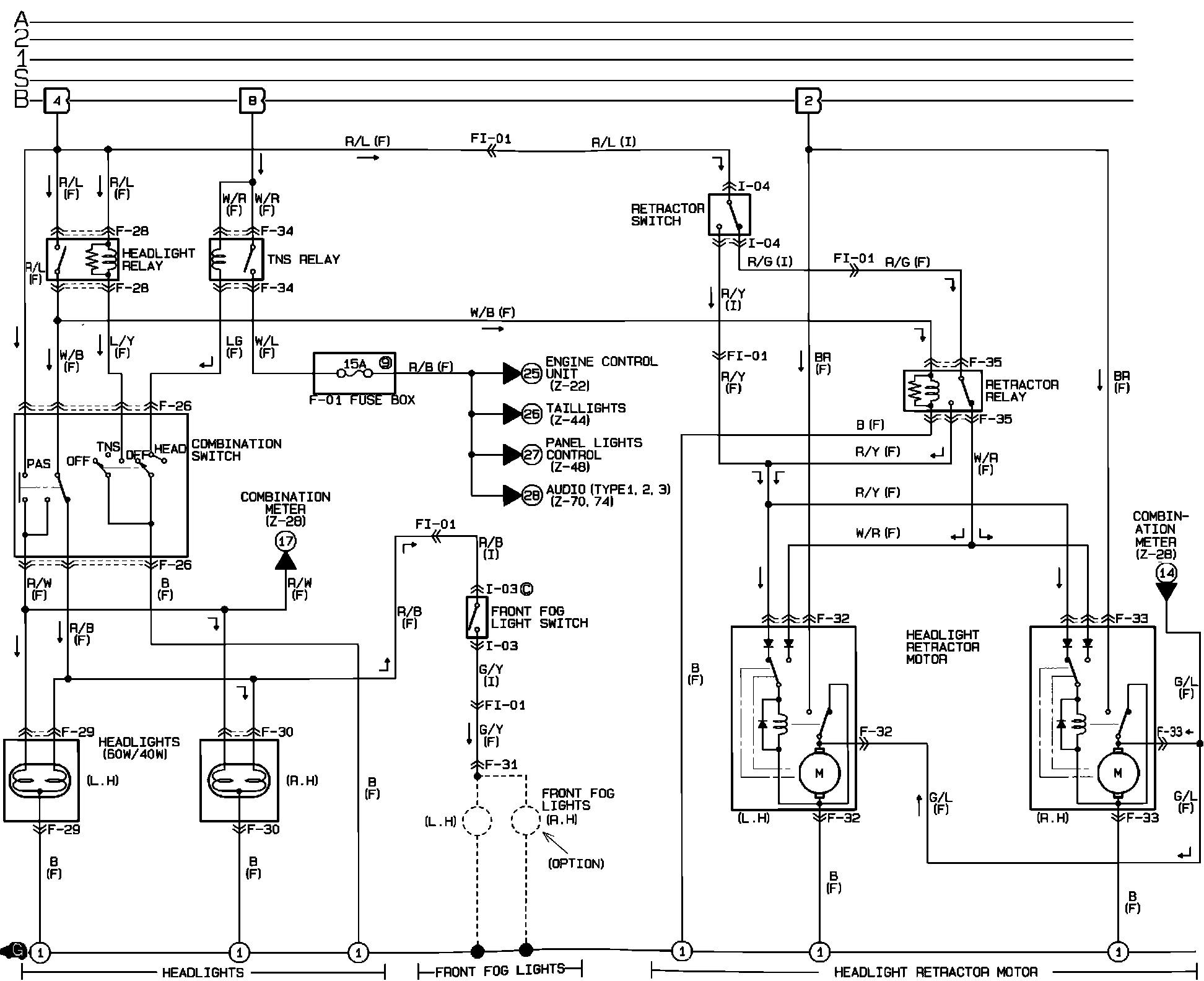

Headlights, Front Fog Lights & Headlights Retractor Motor. USA:

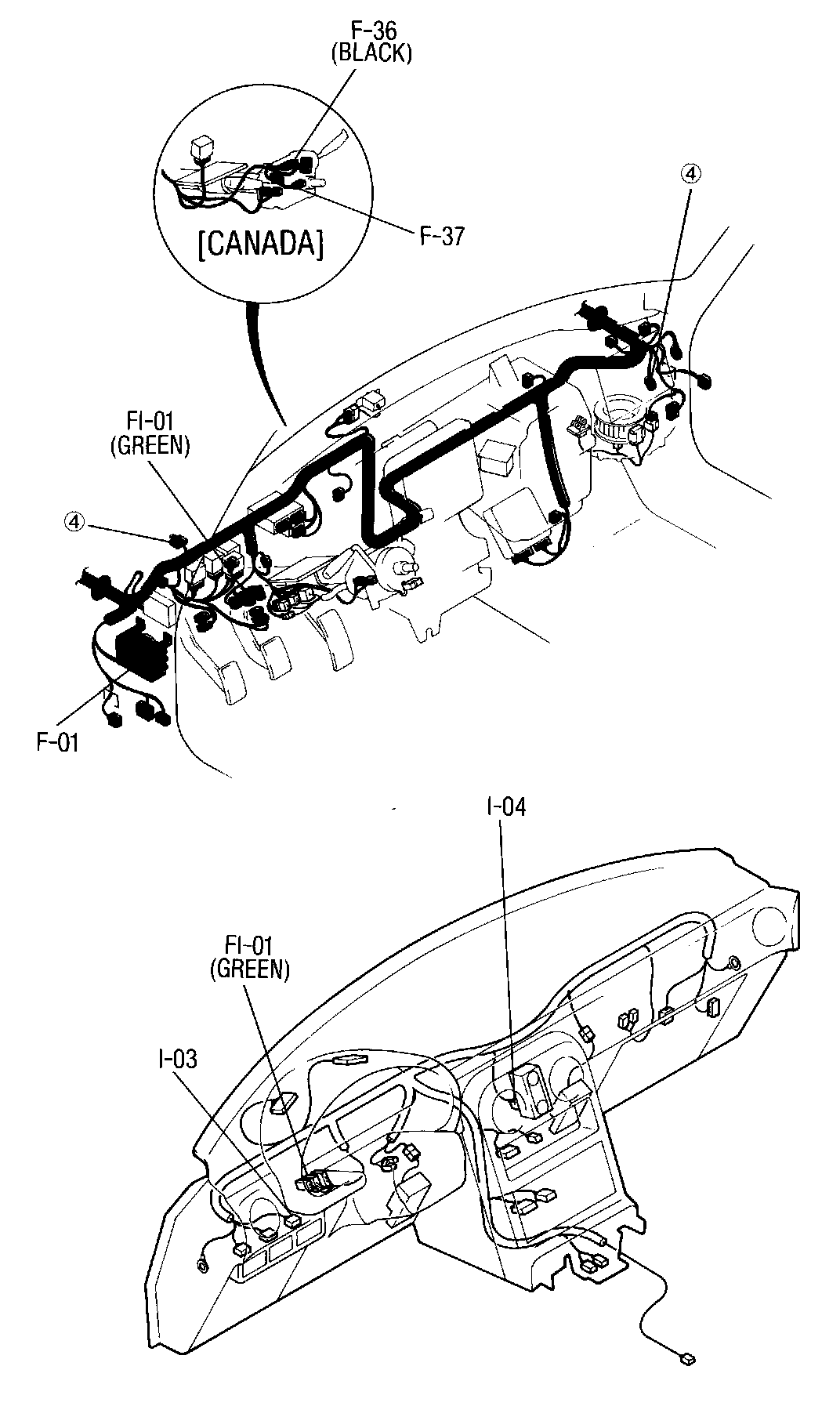

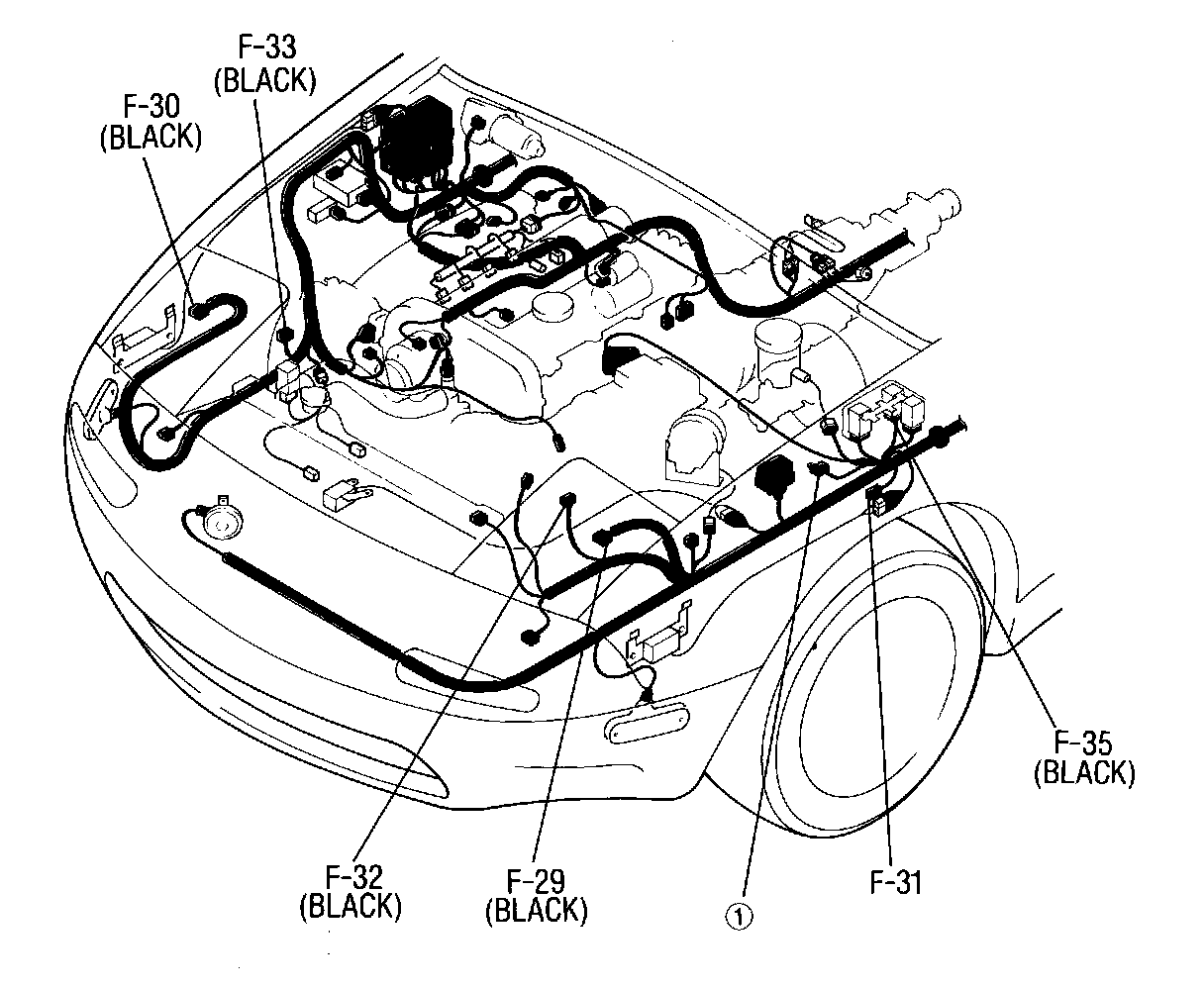

HEADLAMP GROUND POINTS CANADA

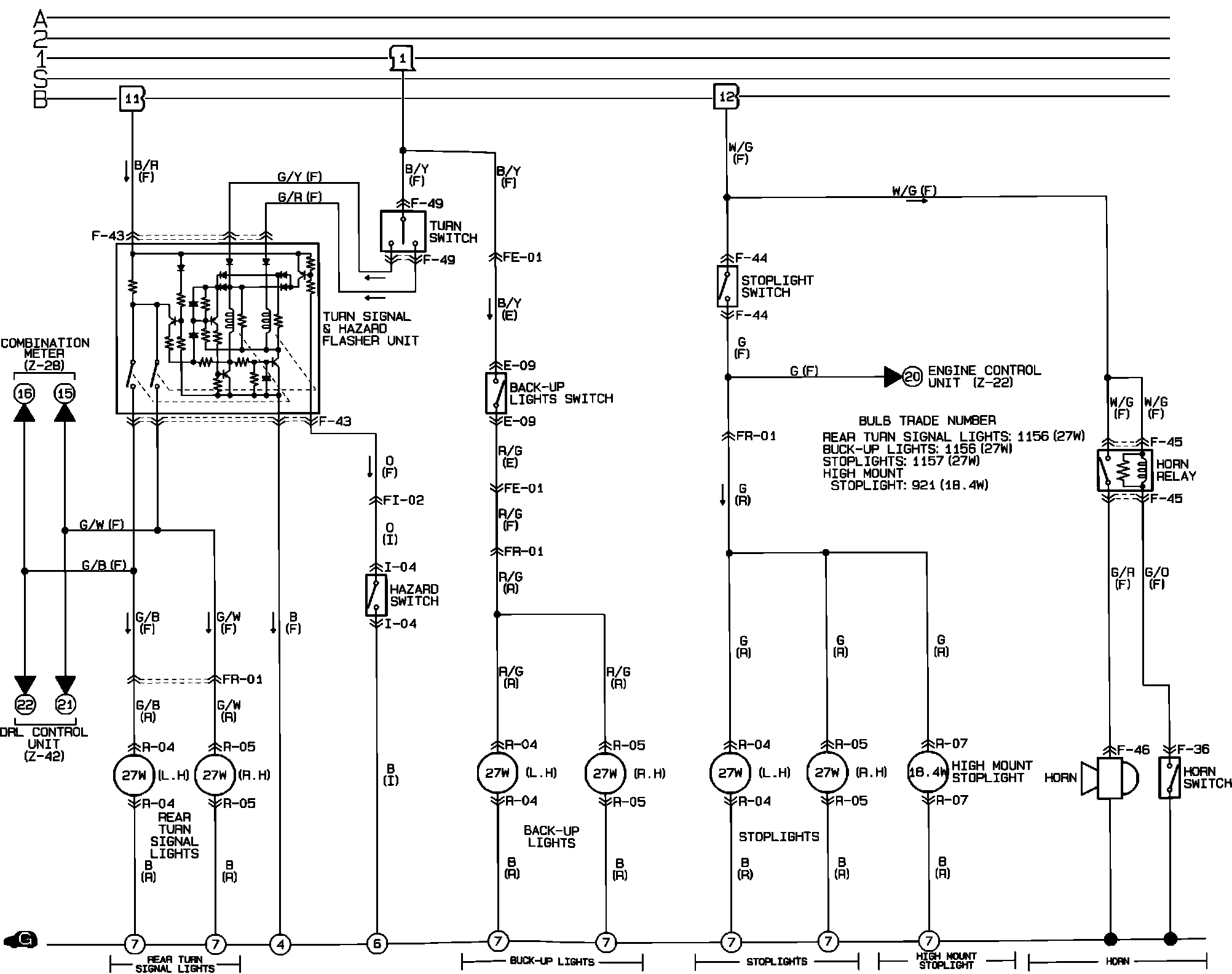

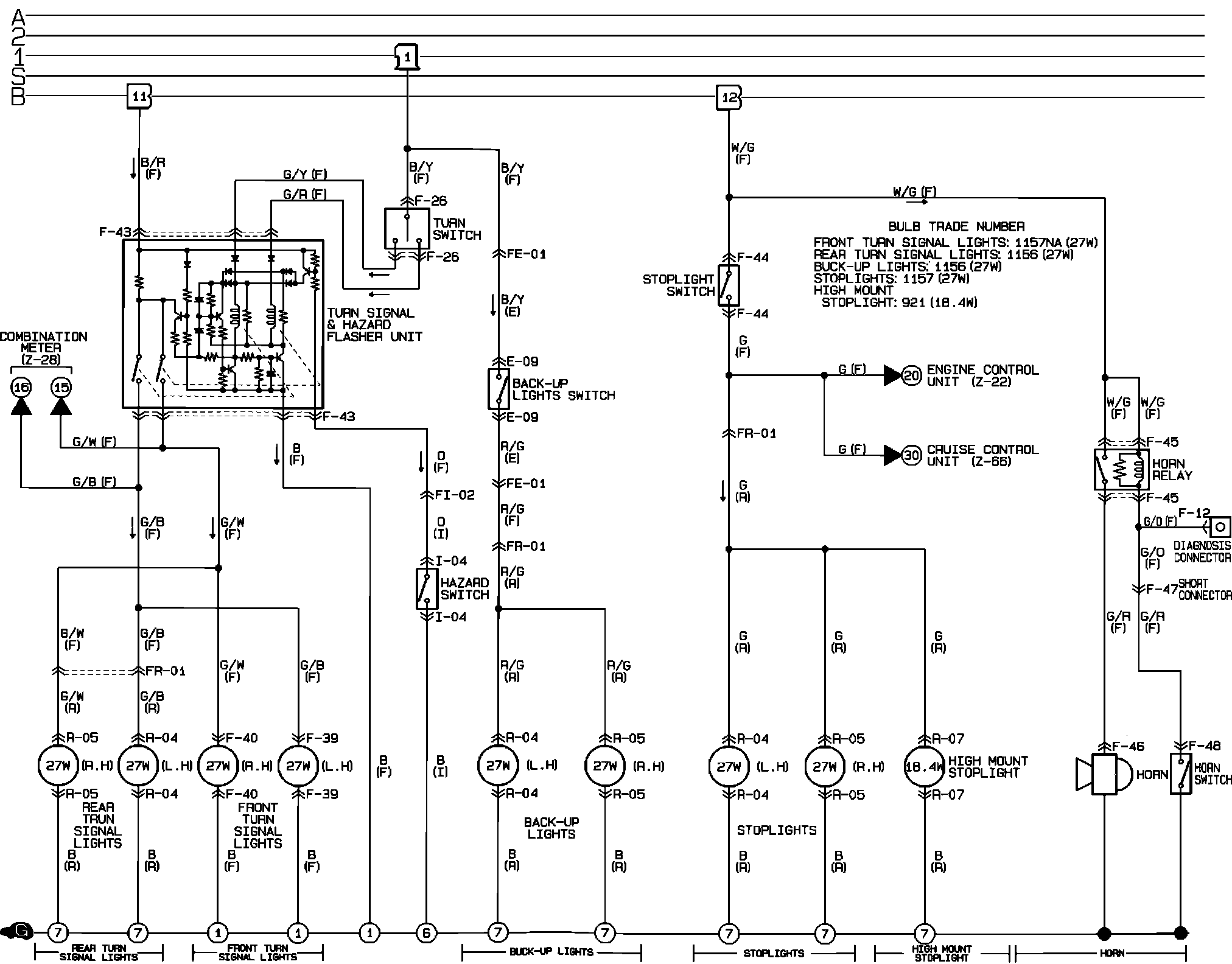

Turn Signal, Hazard, Stop, Back-Up, Horn & High Mount Stop Lights. USA:

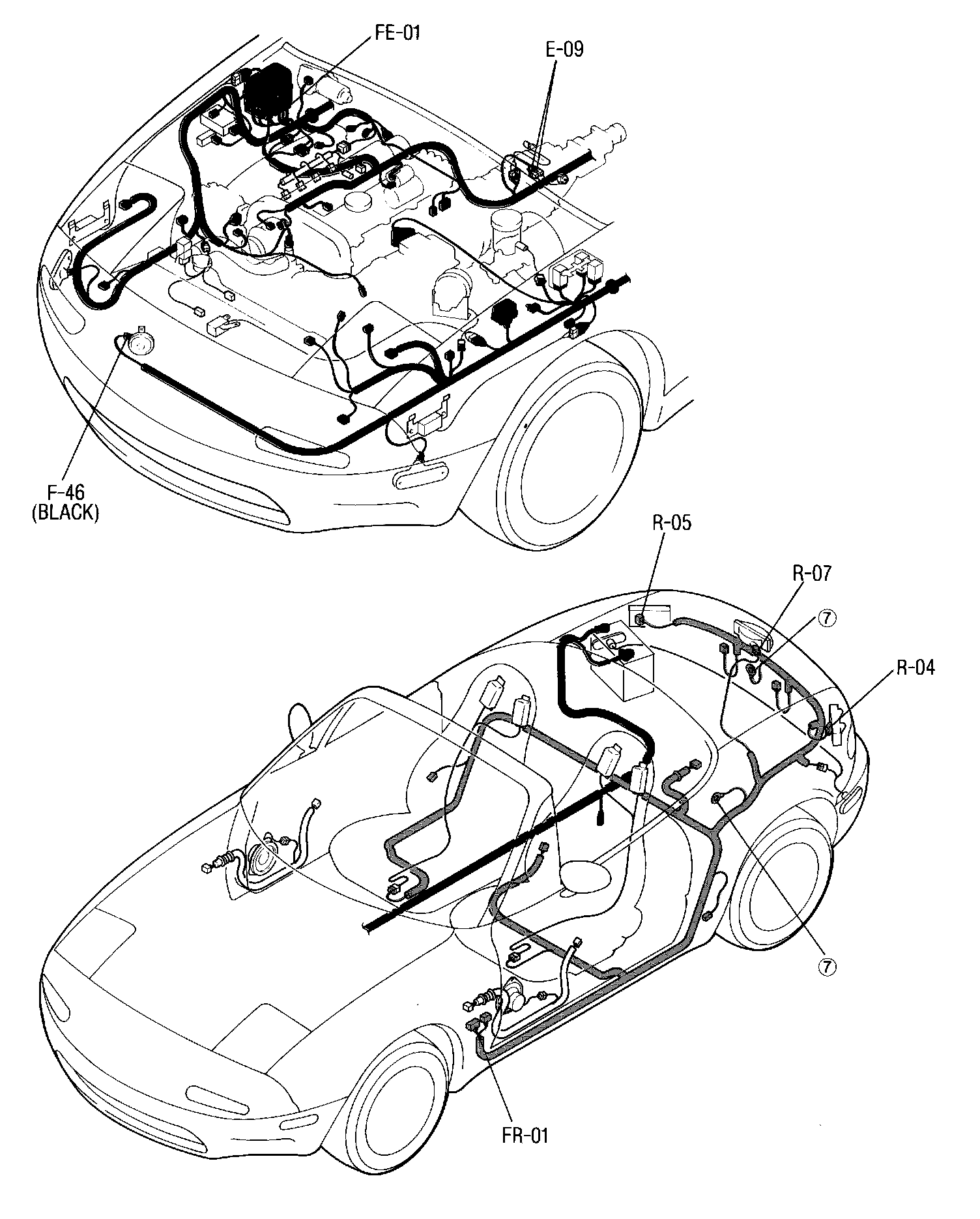

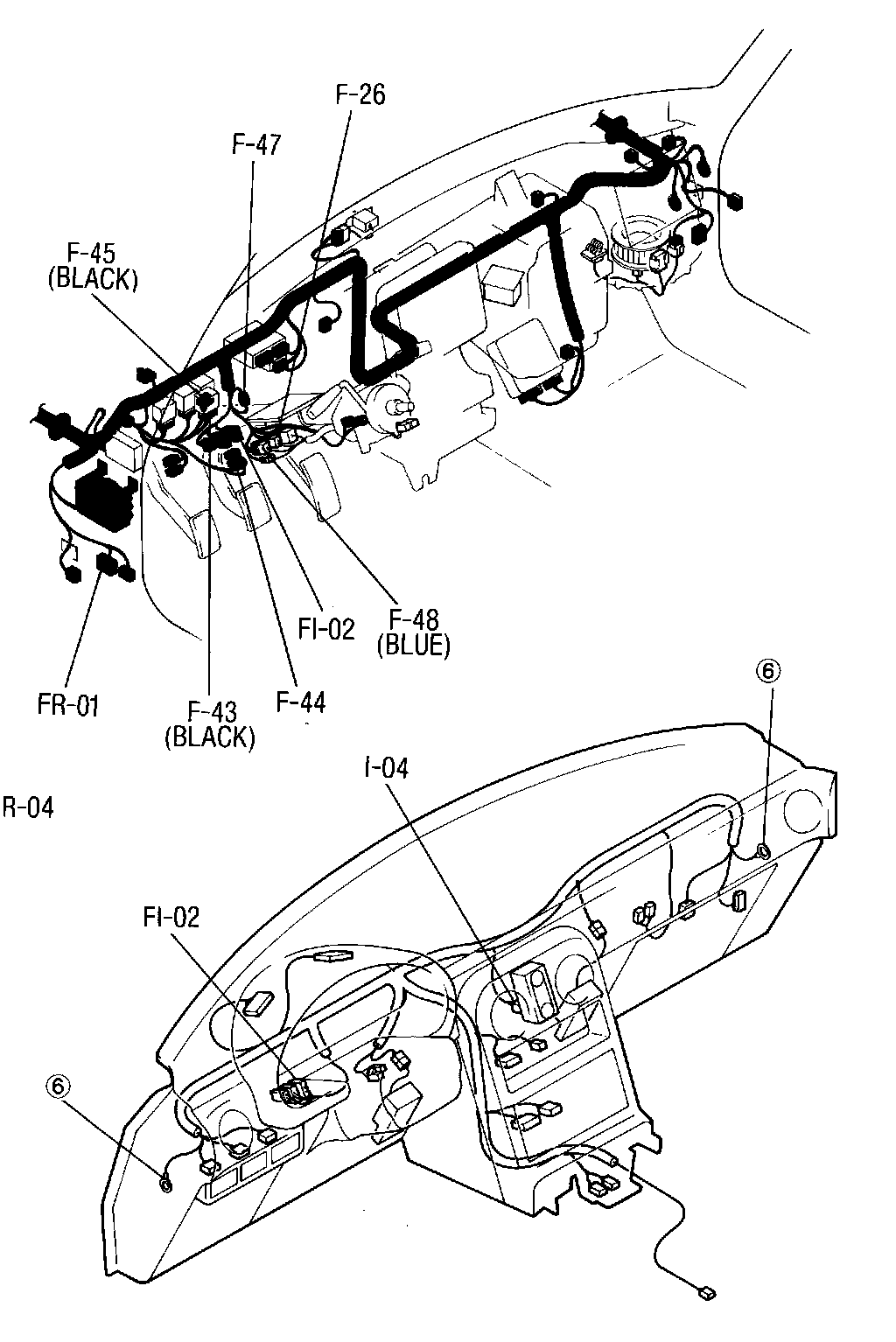

FRONT and REAR TURN SIGNALS, BACKUP LAMPS, STOP AND HORN GROUND POINTS U.S.A.

Turn Signal, Hazard, Stop, Back-Up, Horn & High Mount Stop Lights. Canada:

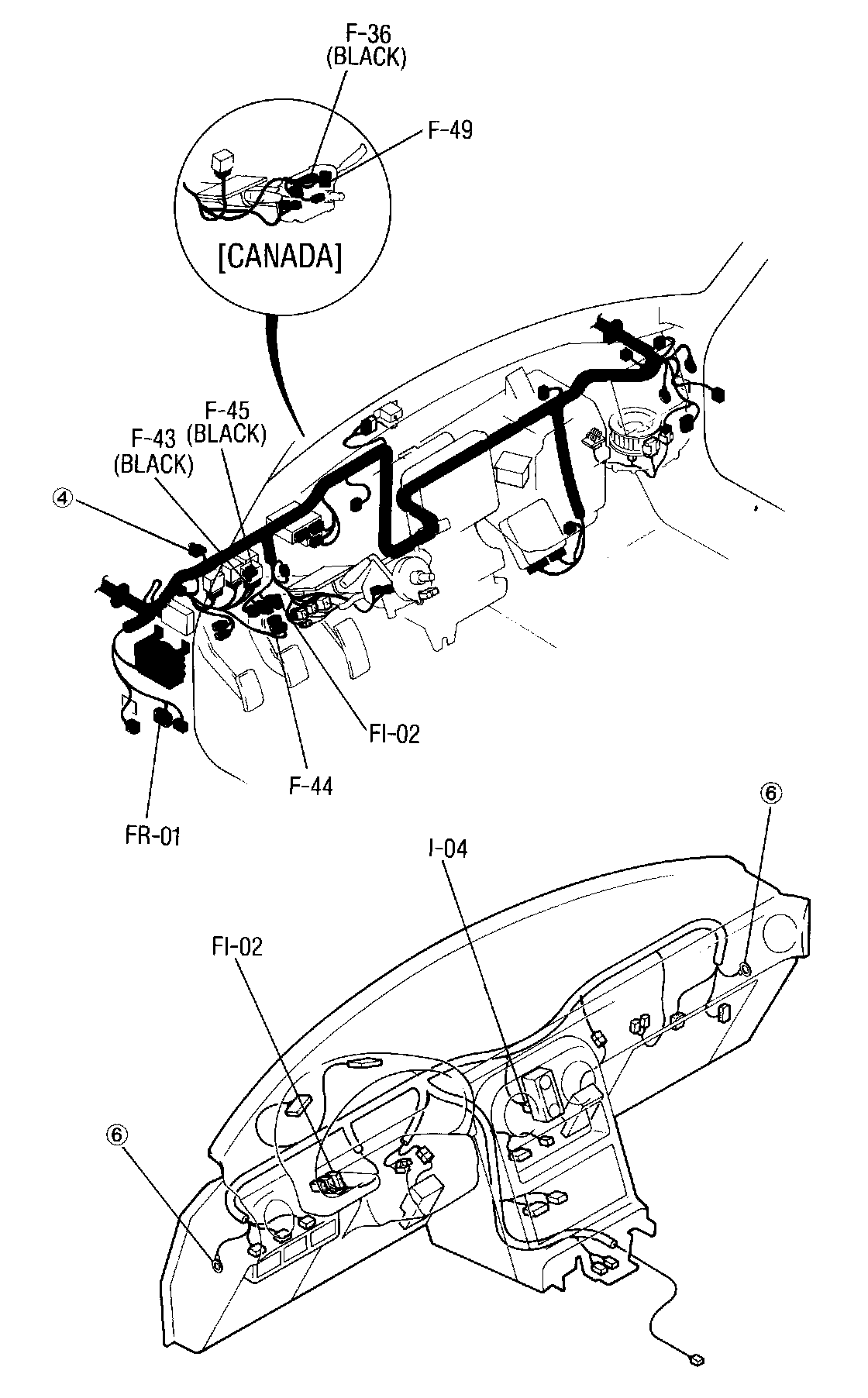

FRONT and REAR TURN SIGNALS, BACKUP LAMPS, STOP AND HORN GROUND POINTS CANADA
