Automatic Transmission (Electronically Controlled)
Automatic Transmission (Electronically Controlled)

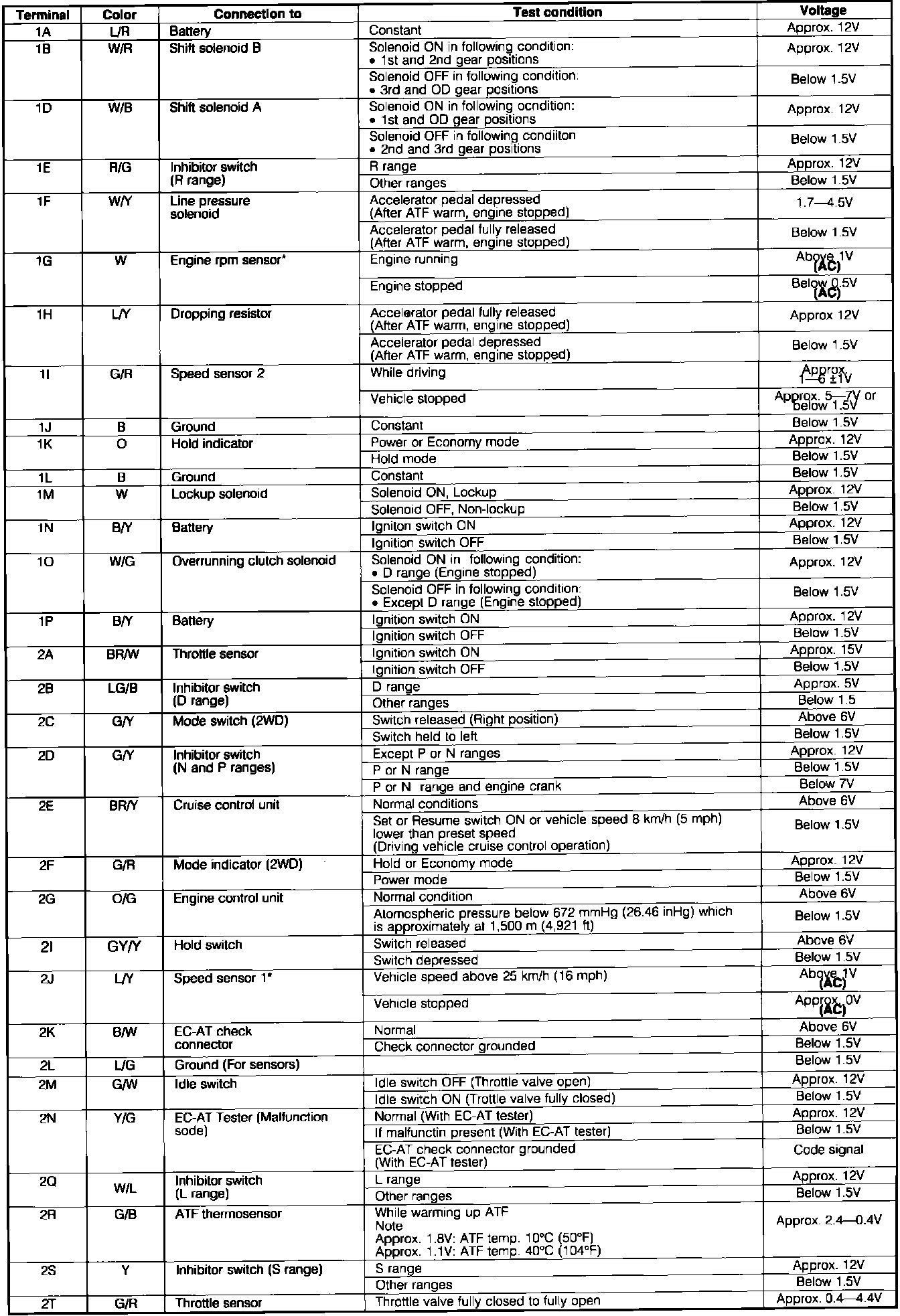

EC-AT Control System. ECU Pin Voltage Chart:
