Mazda
>>
1991
>>
MPV 2WD V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Assembly
>>
Locations
>>
Rear
Rear

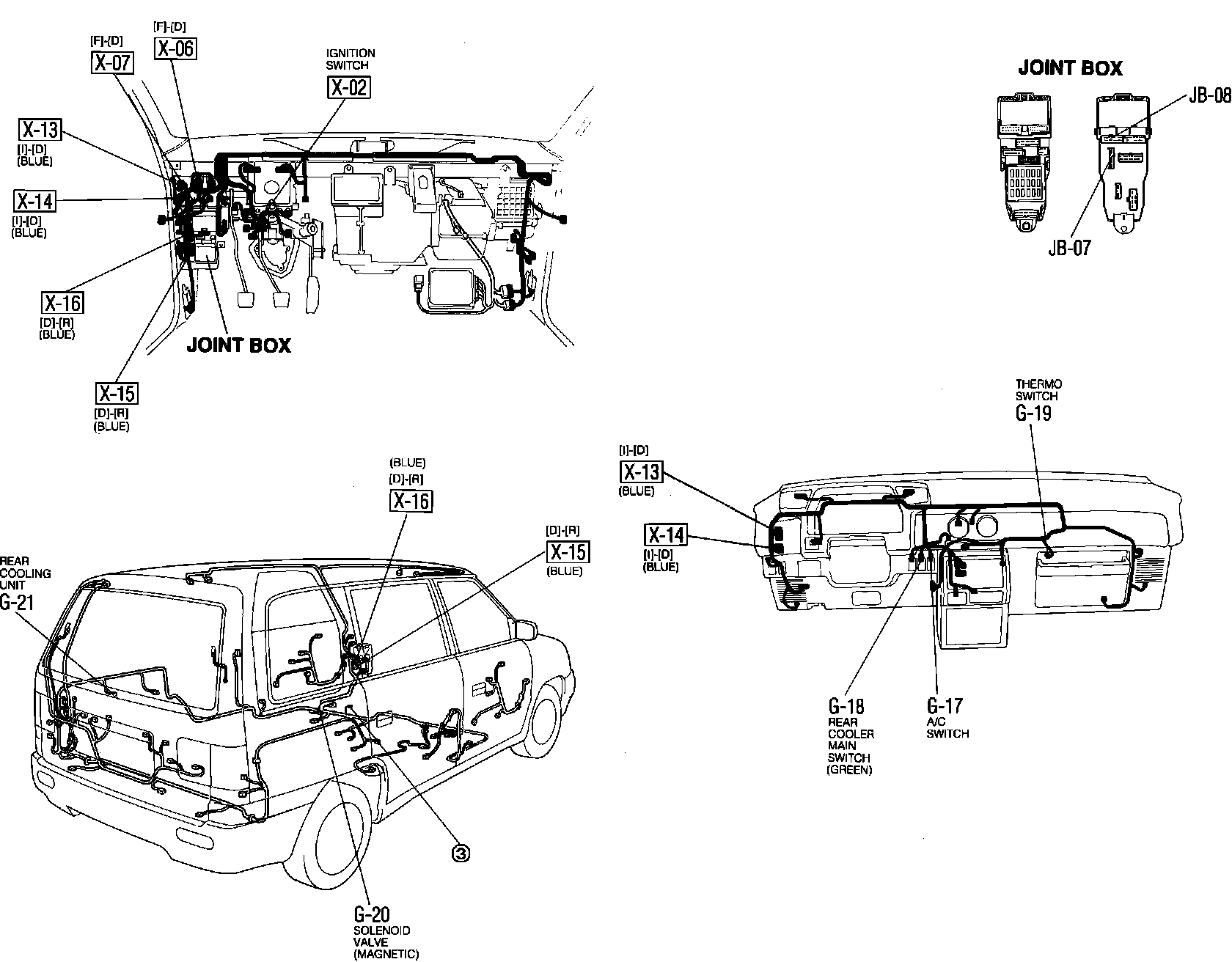

Cooler. Harness And Connector Locations:
