Connector Views

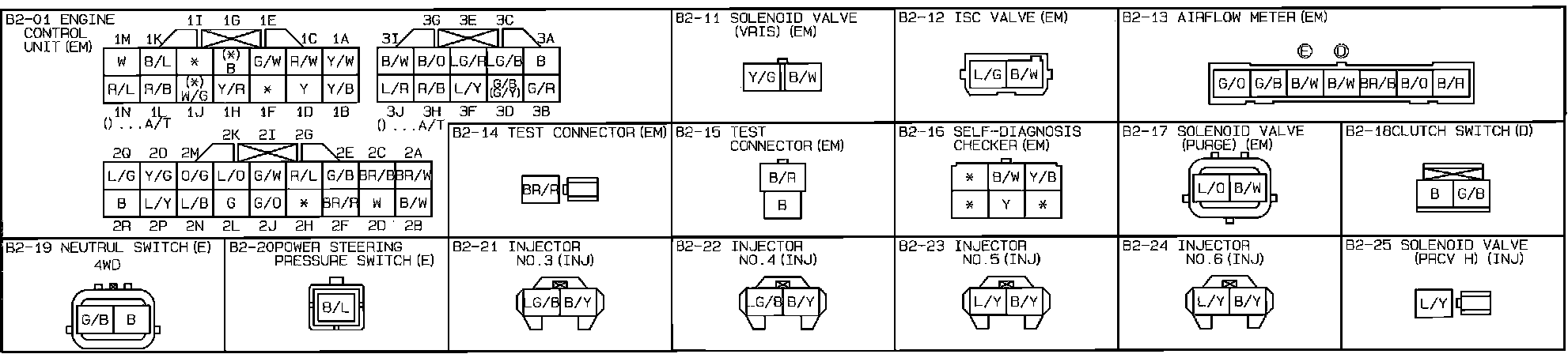

Engine Control System. Connector Identification:

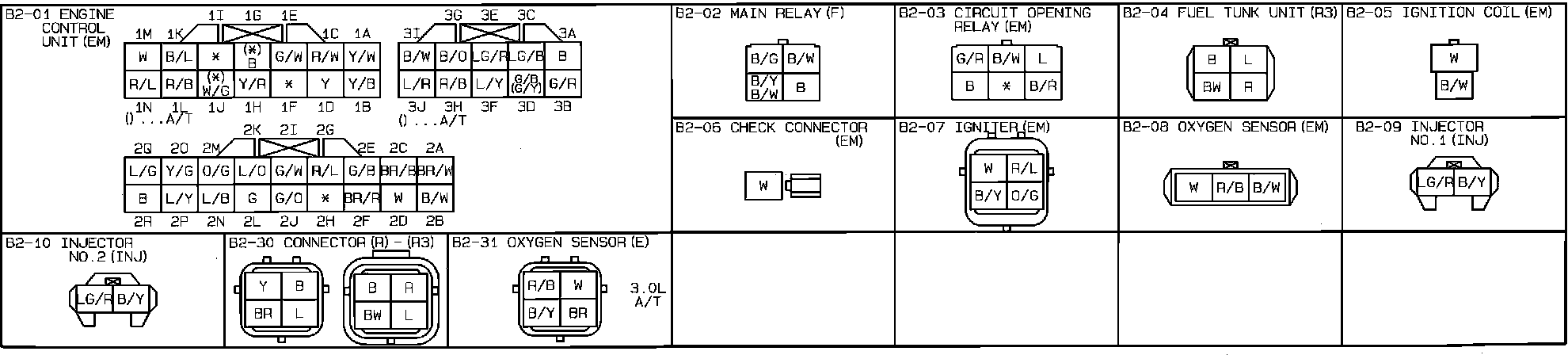

Engine Control System. Connector Identification:

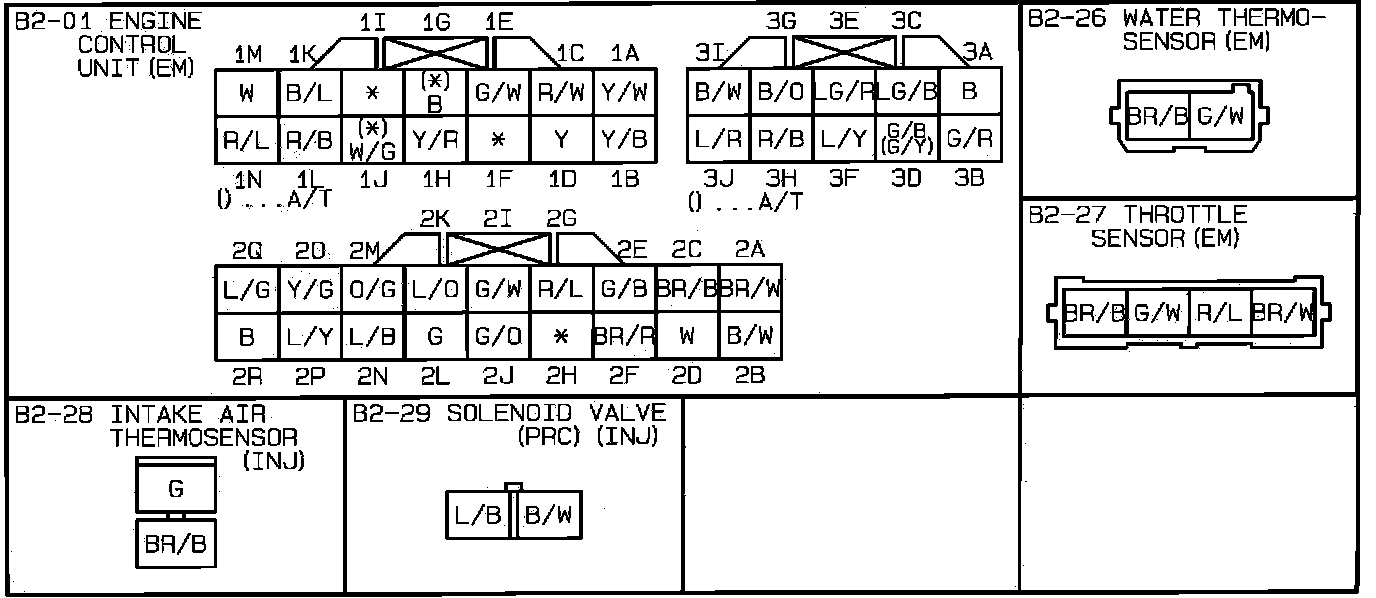

Engine Control System. Connector Identification:
