Connector Identification
Connector Identification

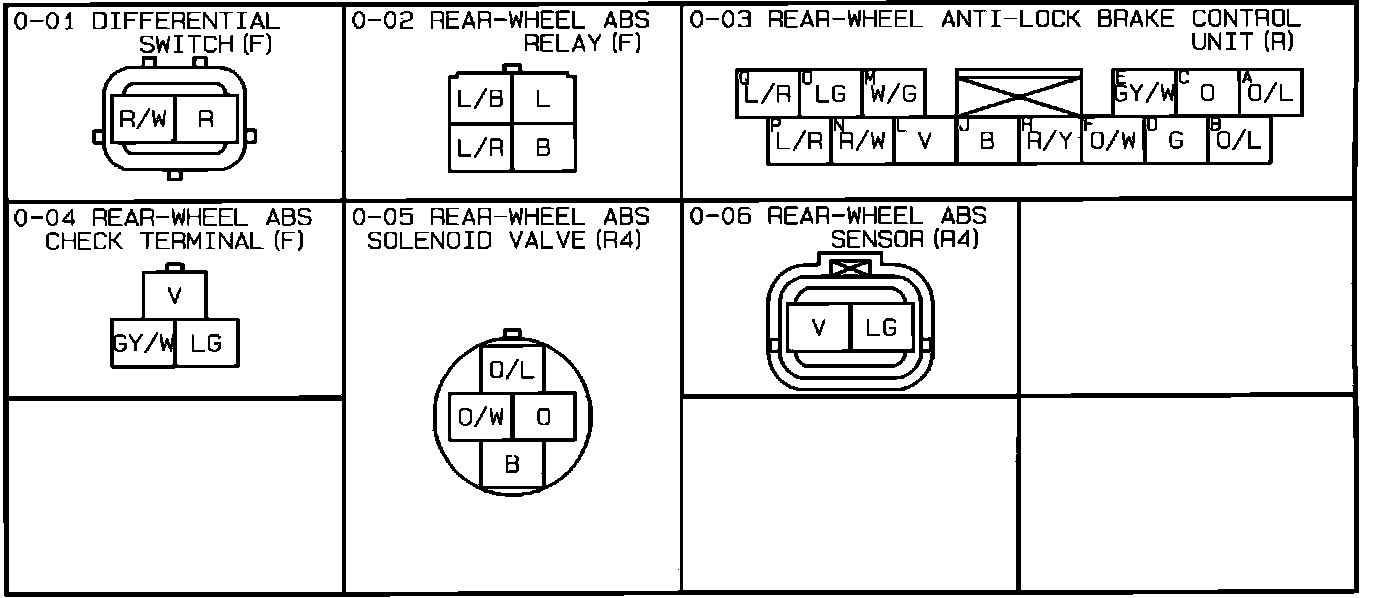

Rear-Wheel Anti-Lock Brake System. Connector Identification:
