Home
>>
Mazda
>>
1991
>>
MPV L4-2606cc 2.6L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Computers and Control Systems
Computers and Control Systems

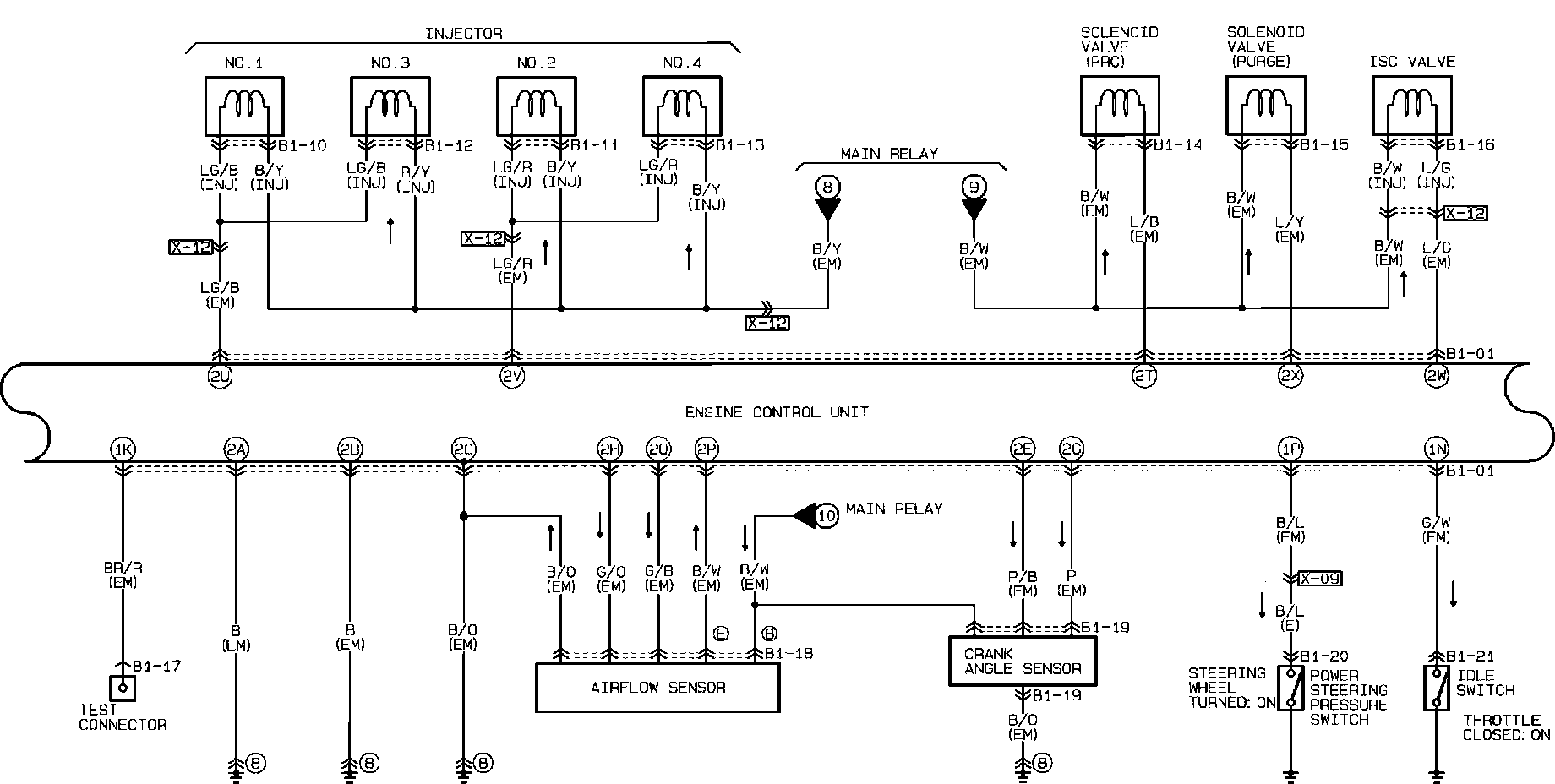

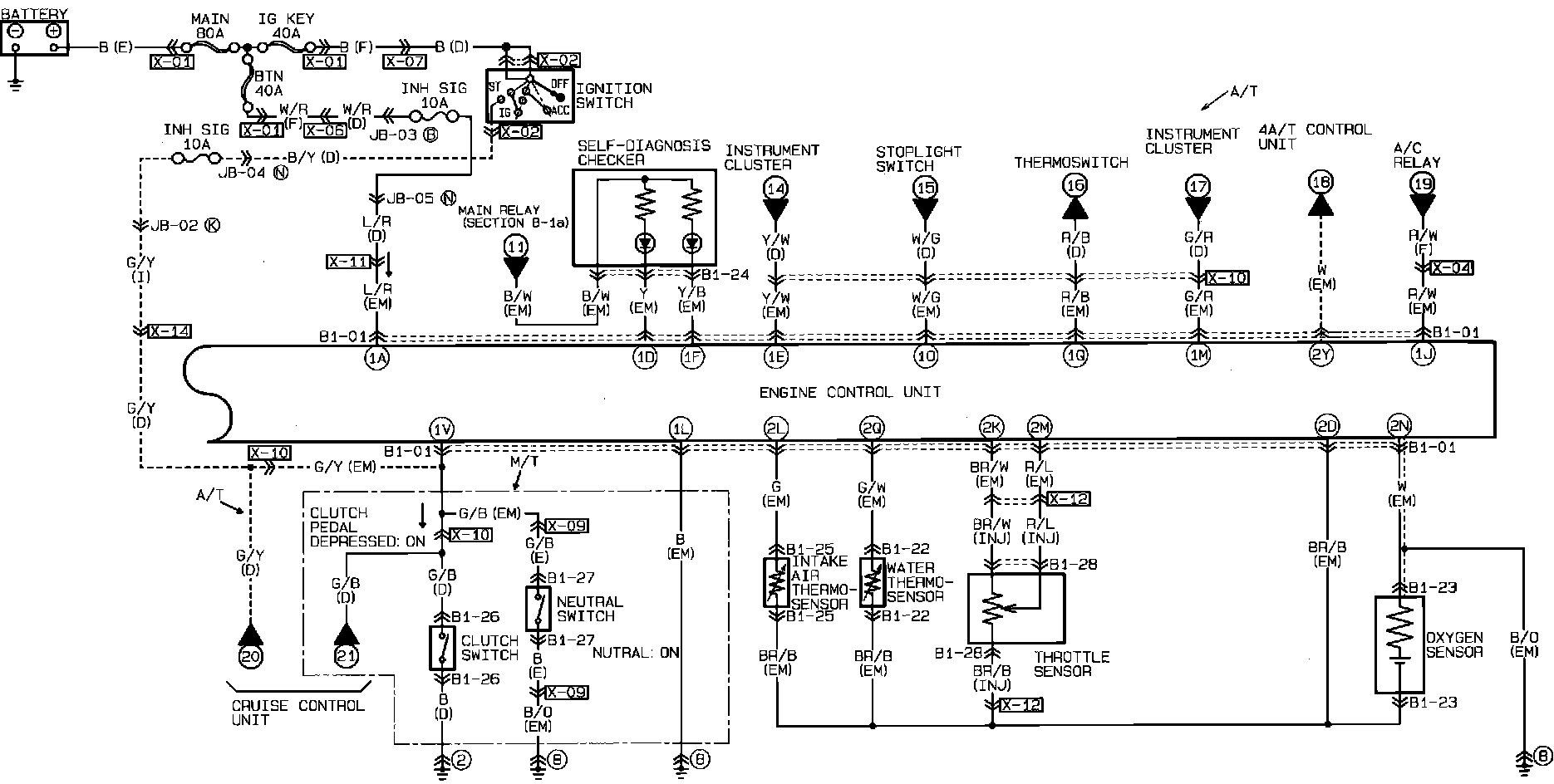

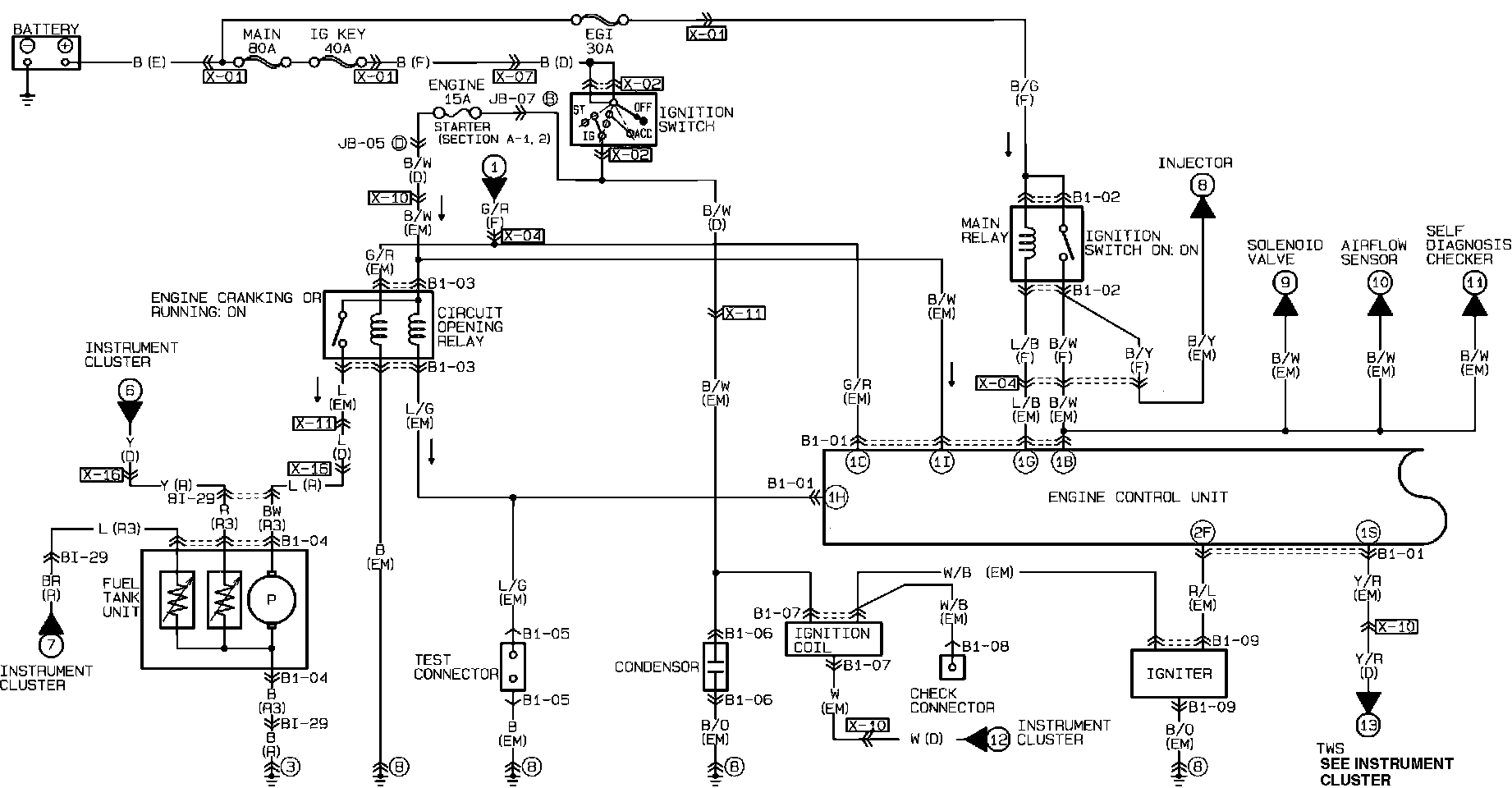

Engine Control System:
Engine Control System.:
Engine Control System.:
