Front

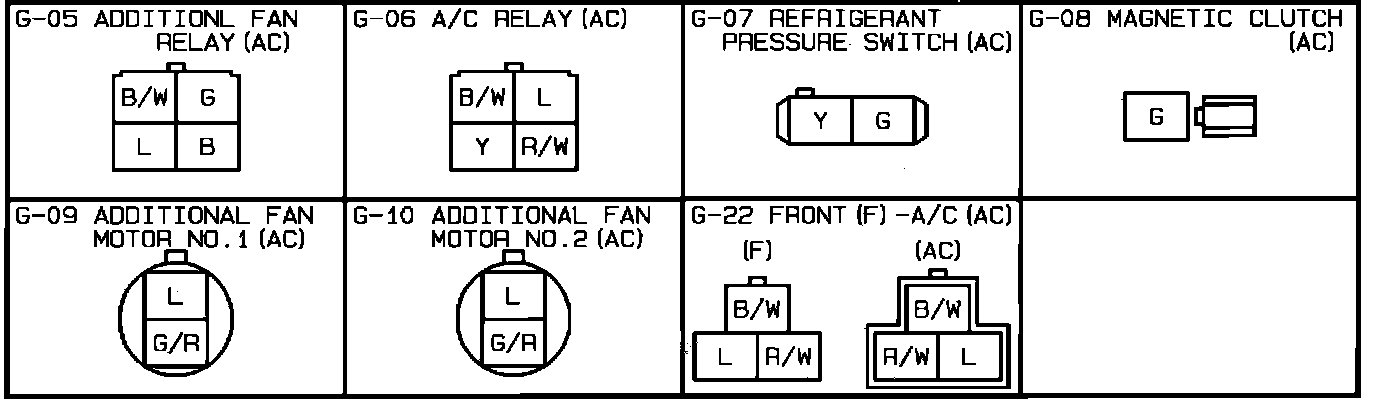

Air Conditioning. Connector Identification:

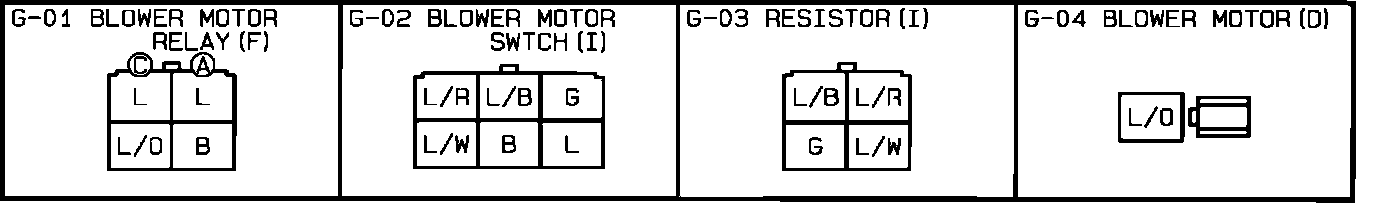

Air Conditioning And Heater. Blower Motor. Connector Identification:
