Logical Mode Control
Logical Mode Control

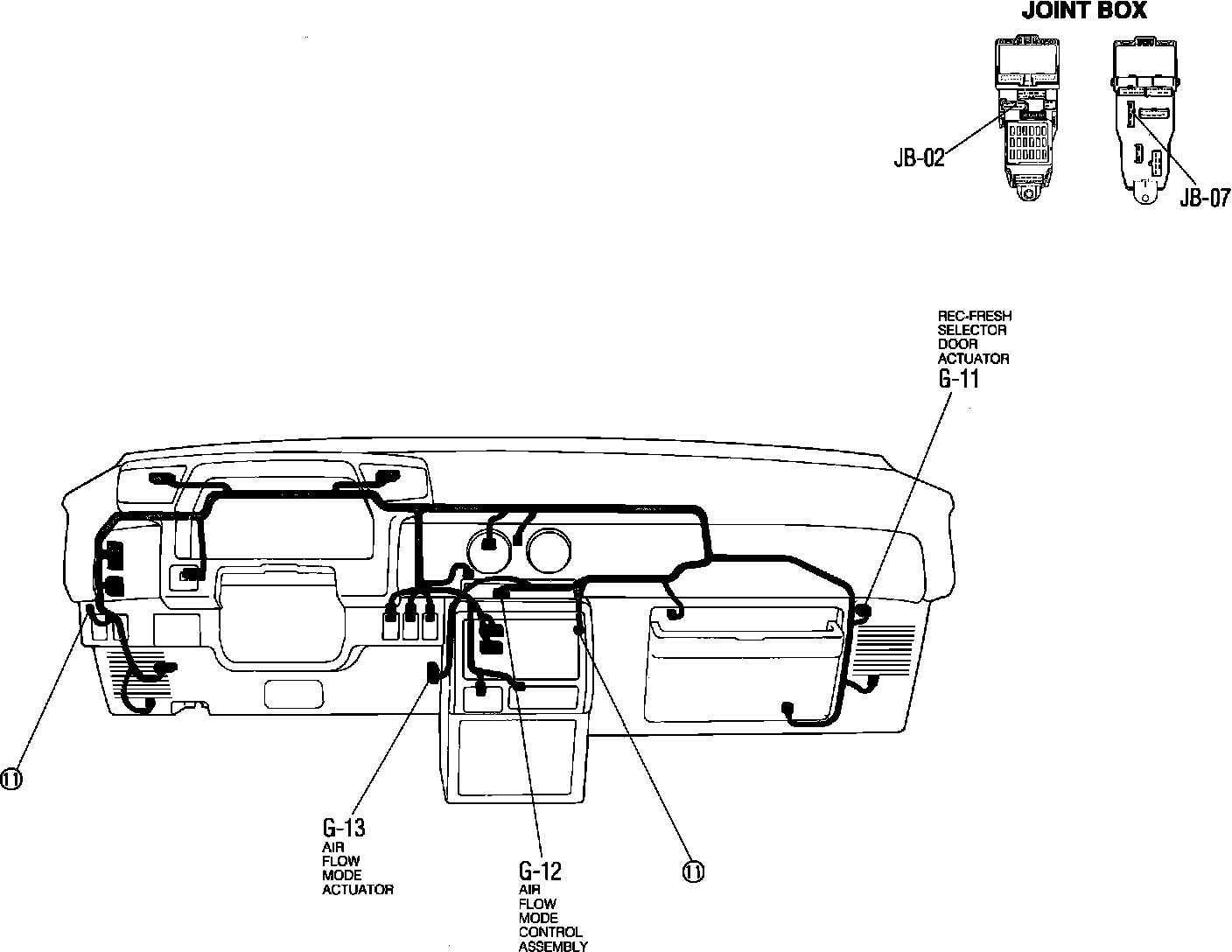

Logical Mode Control System. Harness And Connector Locations:
