MPV L4-2606cc 2.6L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Locations
>>
Connector Locations
Connector Locations

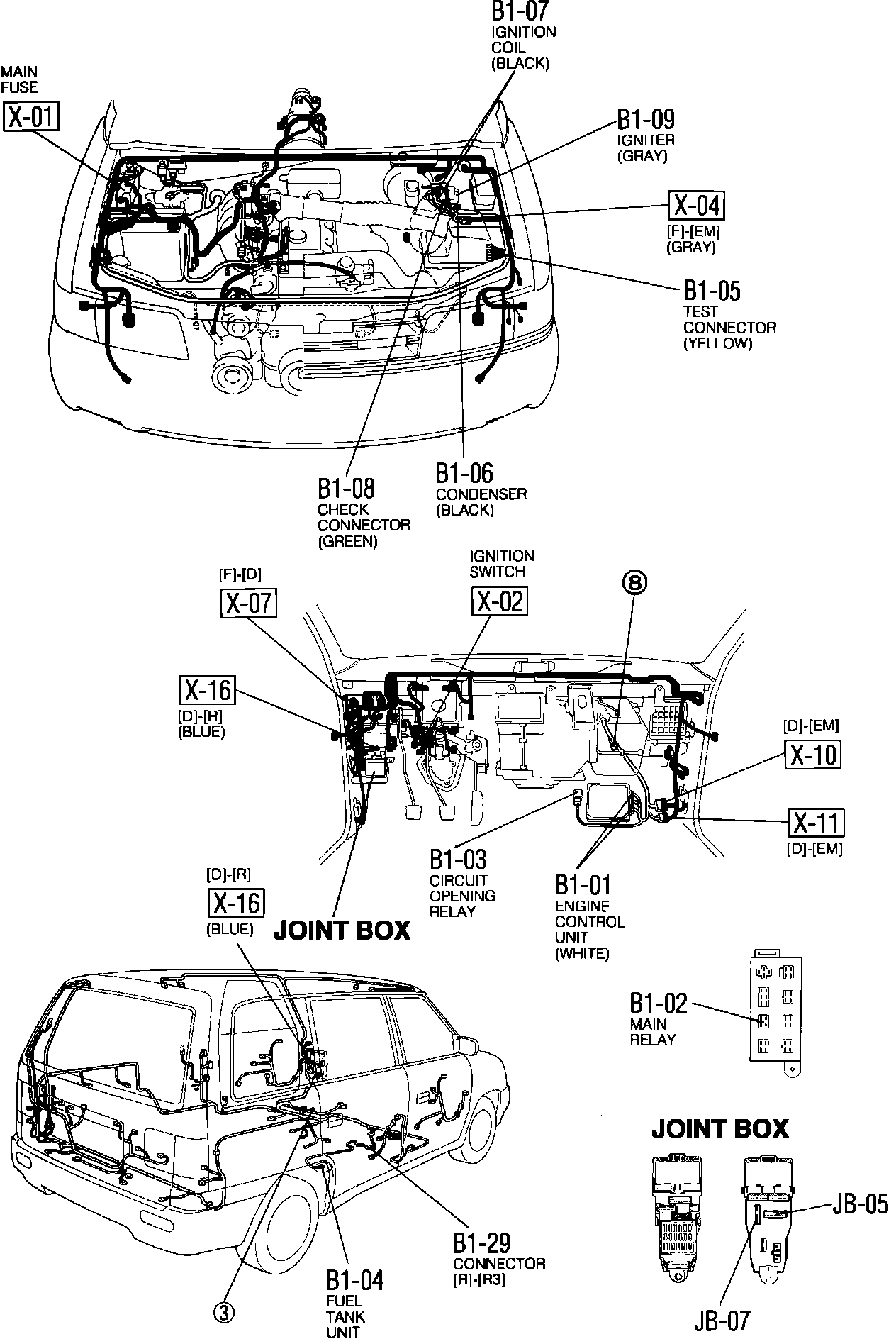

Engine Control System. Harness And Connector Locations:

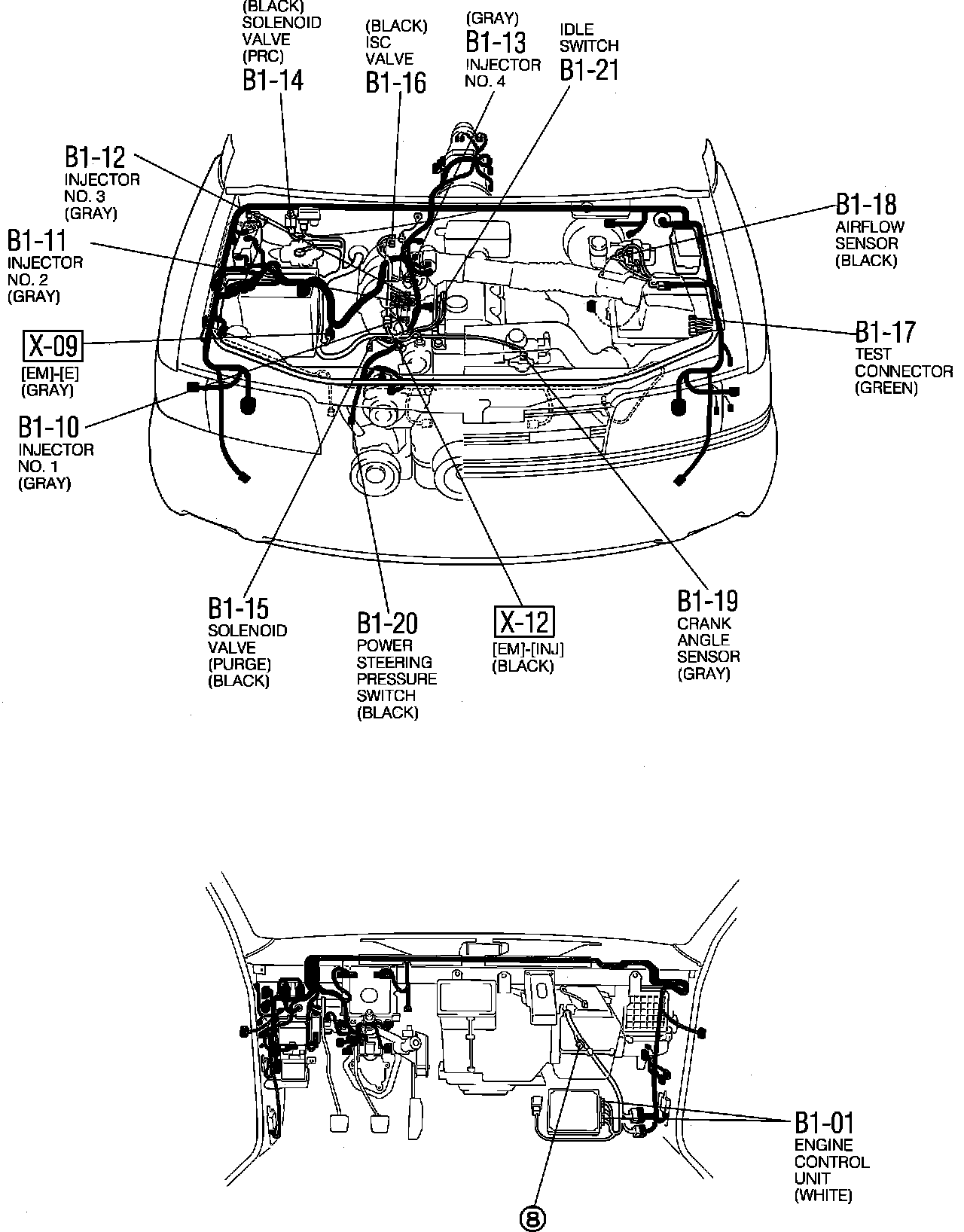

Engine Control System. Harness And Connector Locations:

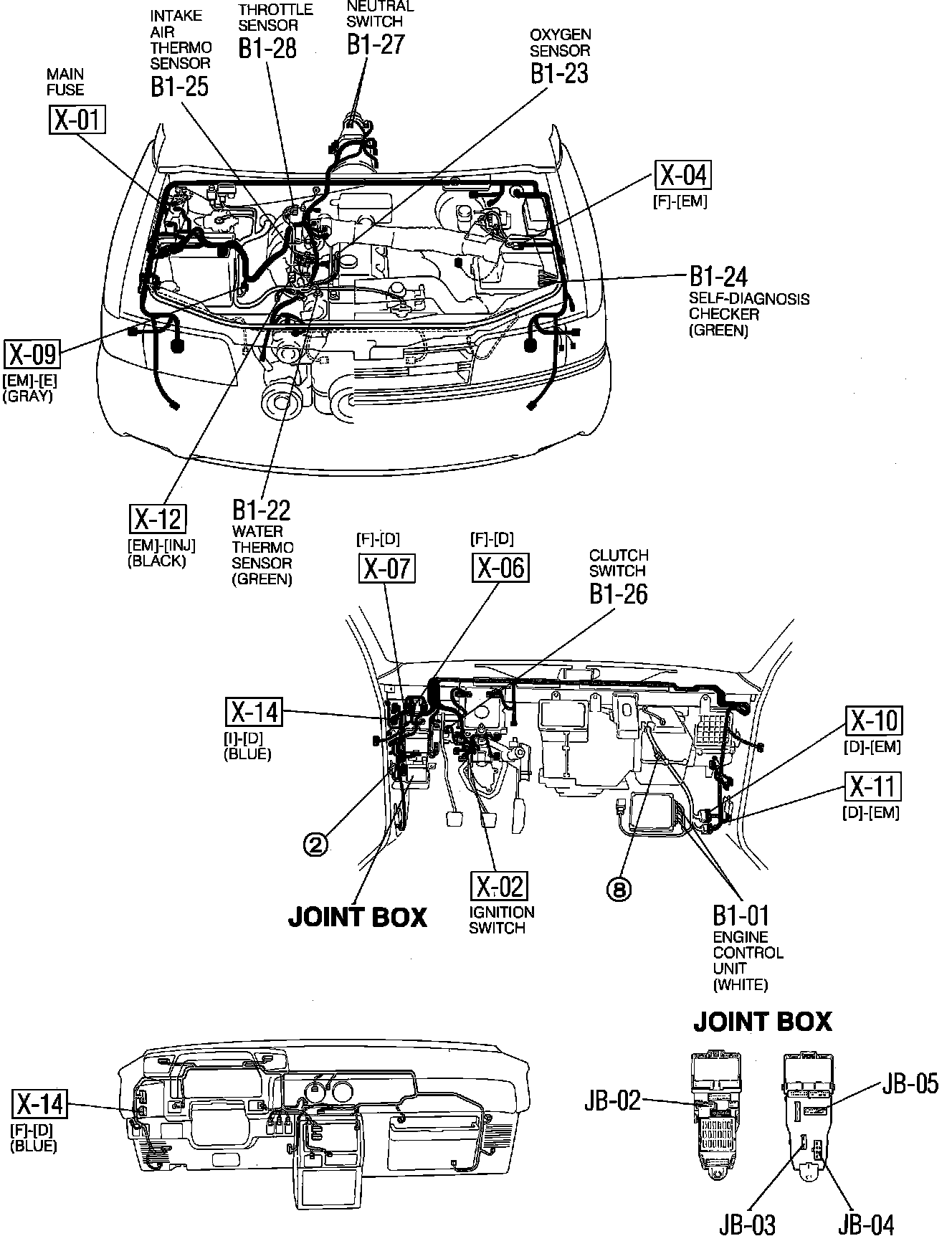

Engine Control System. Harness And Connector Locations:
