FA - Neutral Drive Switch, A/C Input

Enter this Pinpoint Test only when service code 67 or 79 is received during Quick Test or you have been directed here by Quick Test step 9.0 (Diagnosis By Symptom).

This Pinpoint Test is only intended to diagnose the following:

1. A/C input to ECA computer processor.
2. Clutch engage switch.
3. Neutral clutch switch.
4. Neutral drive switch.
5. Neutral gear switch.
6. Harness circuits: CES, NCS, NDS, NGS, ACC, ACCS, SIG RTN.
7. ECA computer processor.

TEST STEP FA1

Test Step FA1:

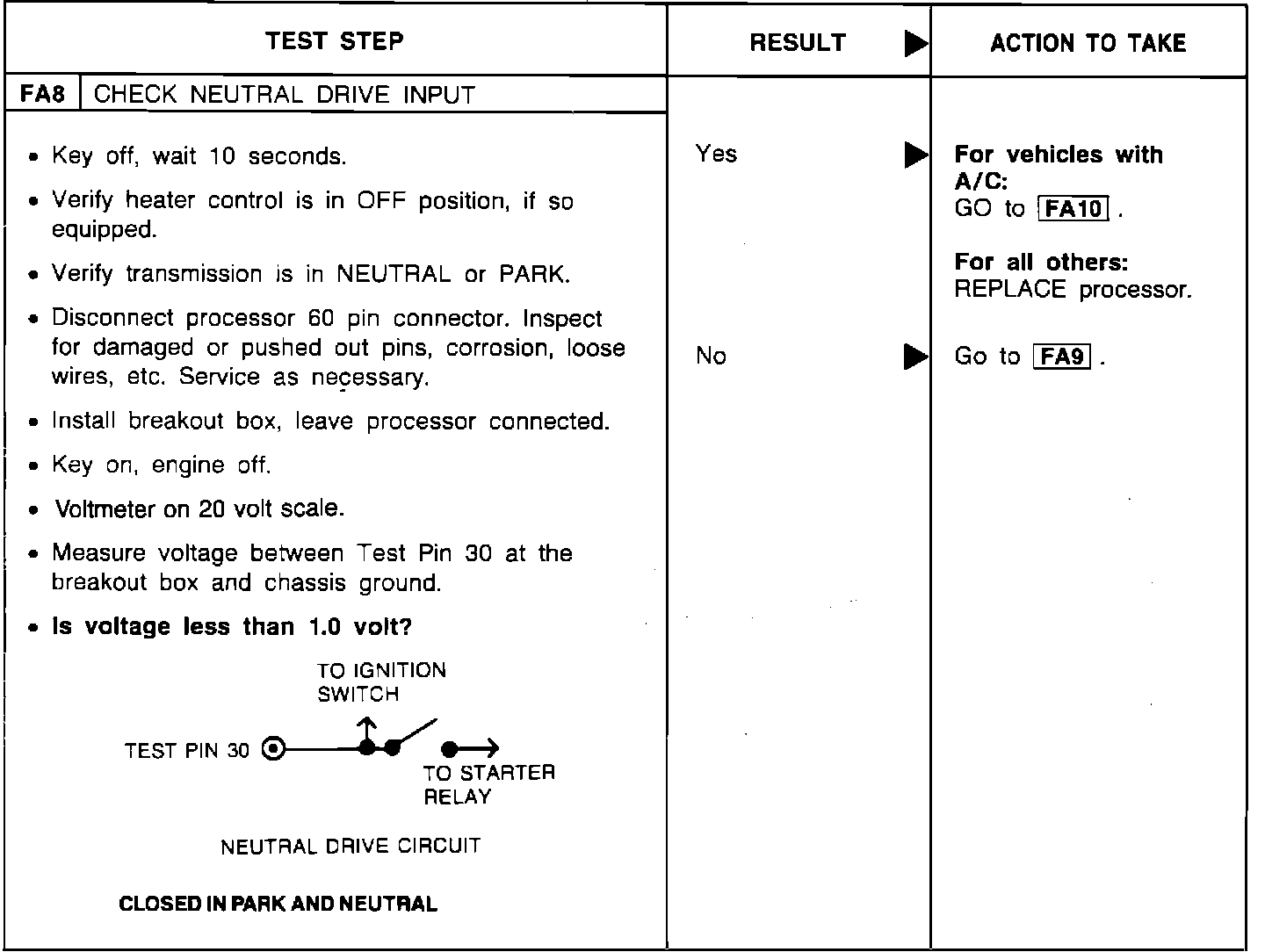

TEST STEP FA8

Test Step FA8:

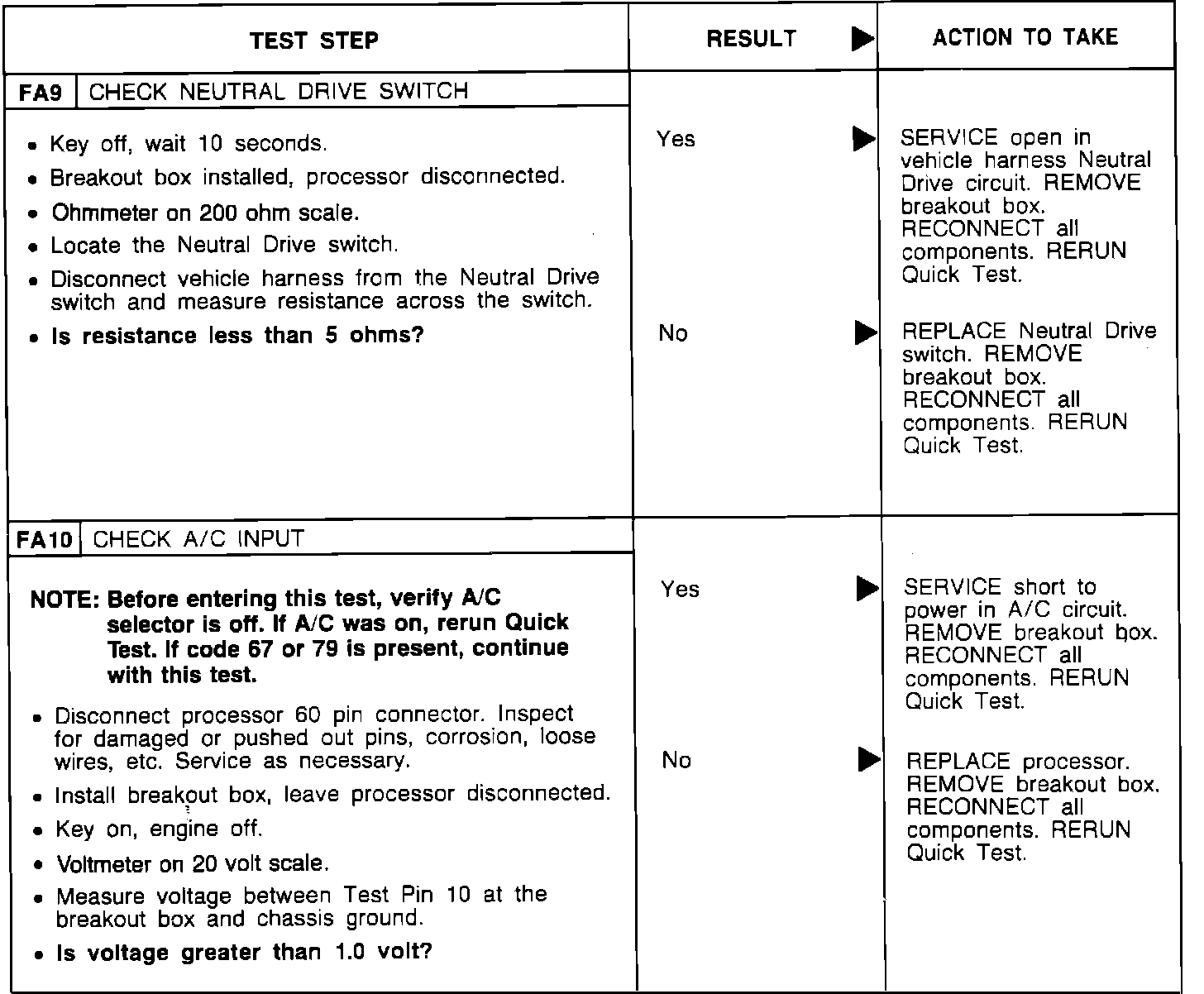

TEST STEPS FA9 - FA10

Test Steps FA9 - FA10:

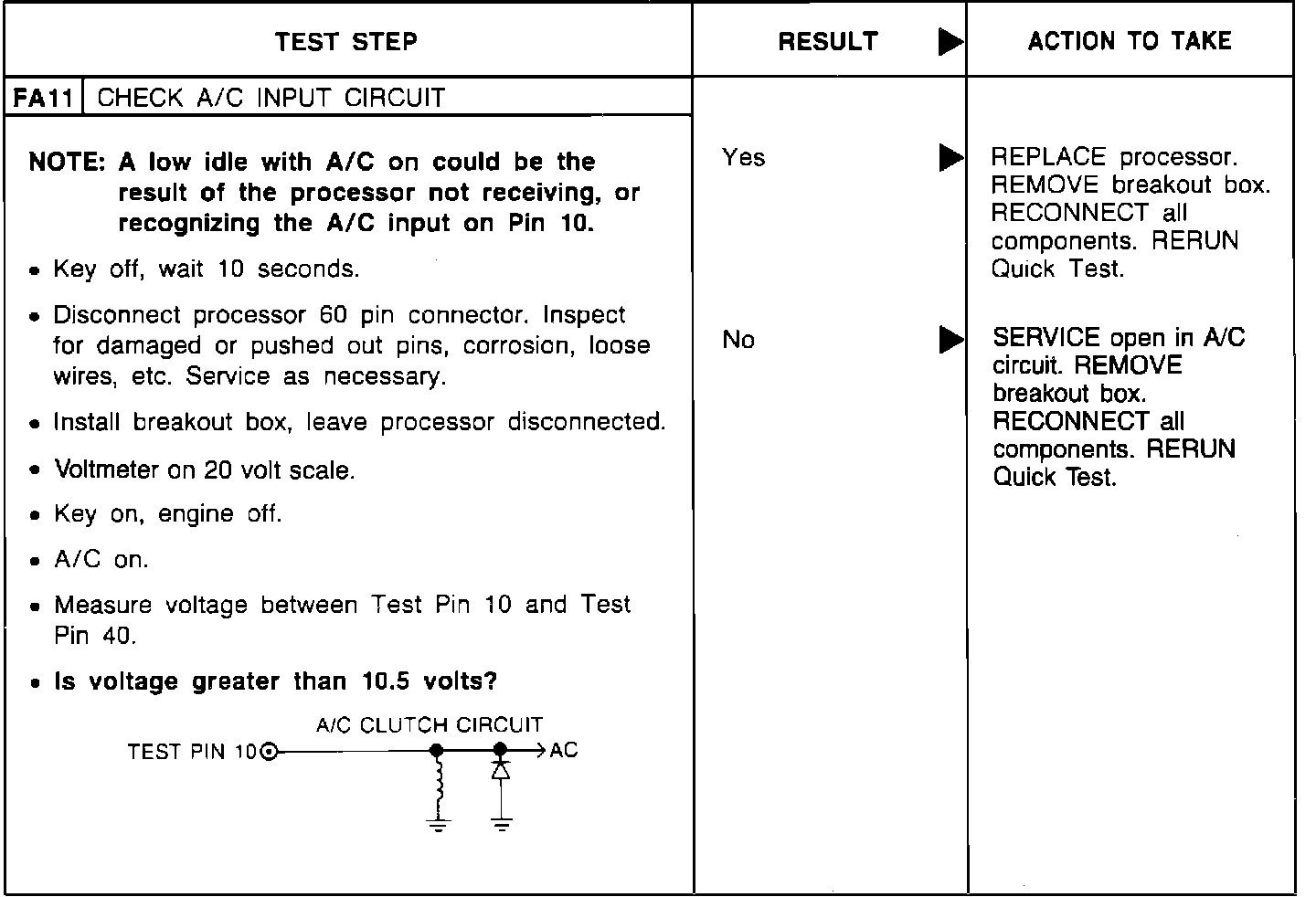

TEST STEP FA11

FA - Neutral Drive Switch, A/C Input

Test Step FA1:

Test Step FA8:

Test Steps FA9 - FA10:

Test Step FA11:
