QC - Output State Check Not Functioning

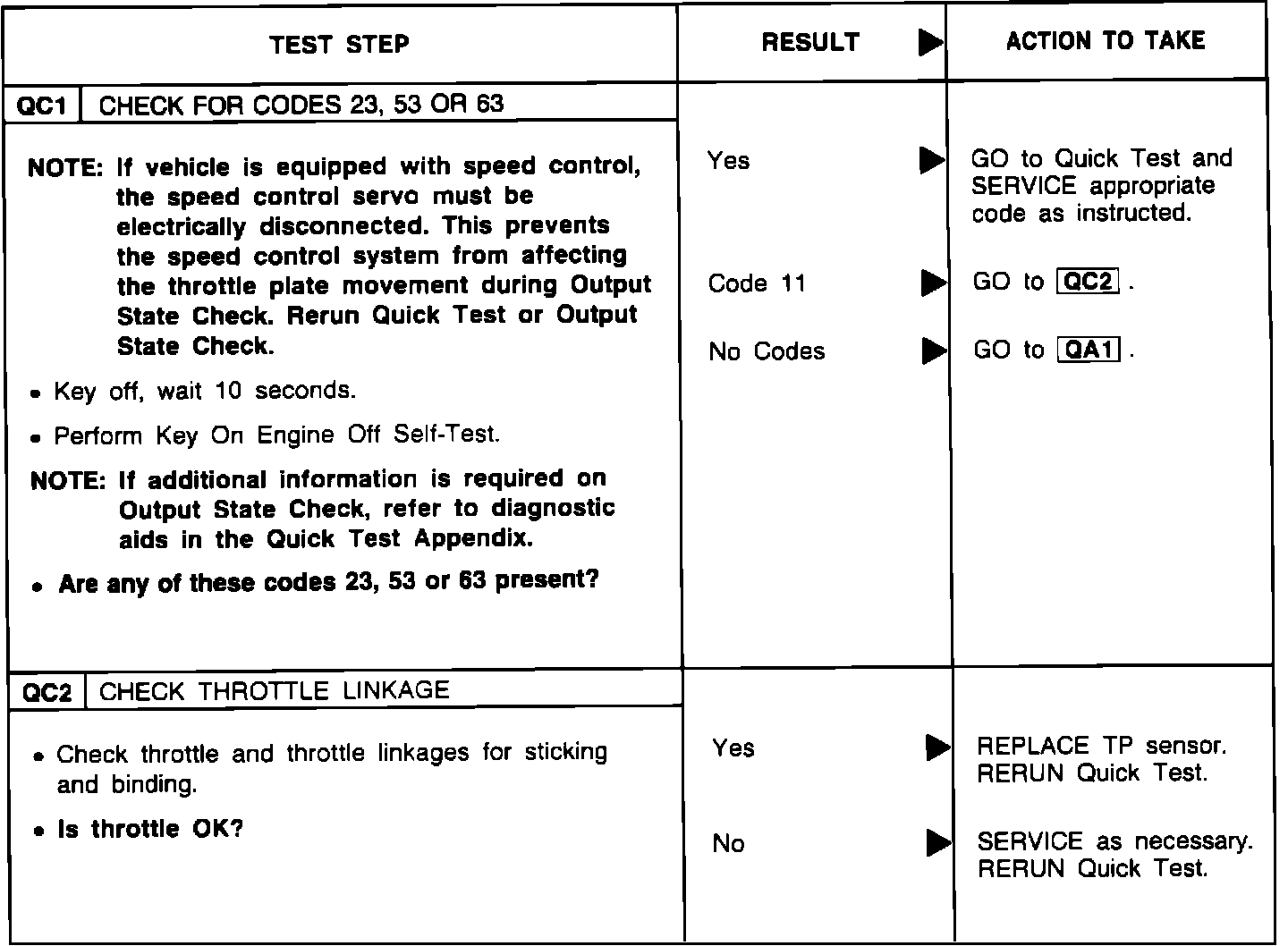

Test Steps QC1 - QC2:

Enter this Pinpoint Test only when you have been directed here from other Pinpoint Tests.

This Pinpoint Test is only intended to diagnose the following:

1. Harness circuits: SIG RTN, STO, STI, GND, VPWR, VREF.
2. ECA computer processor.
