Malfunction Indicator Lamp: Locations

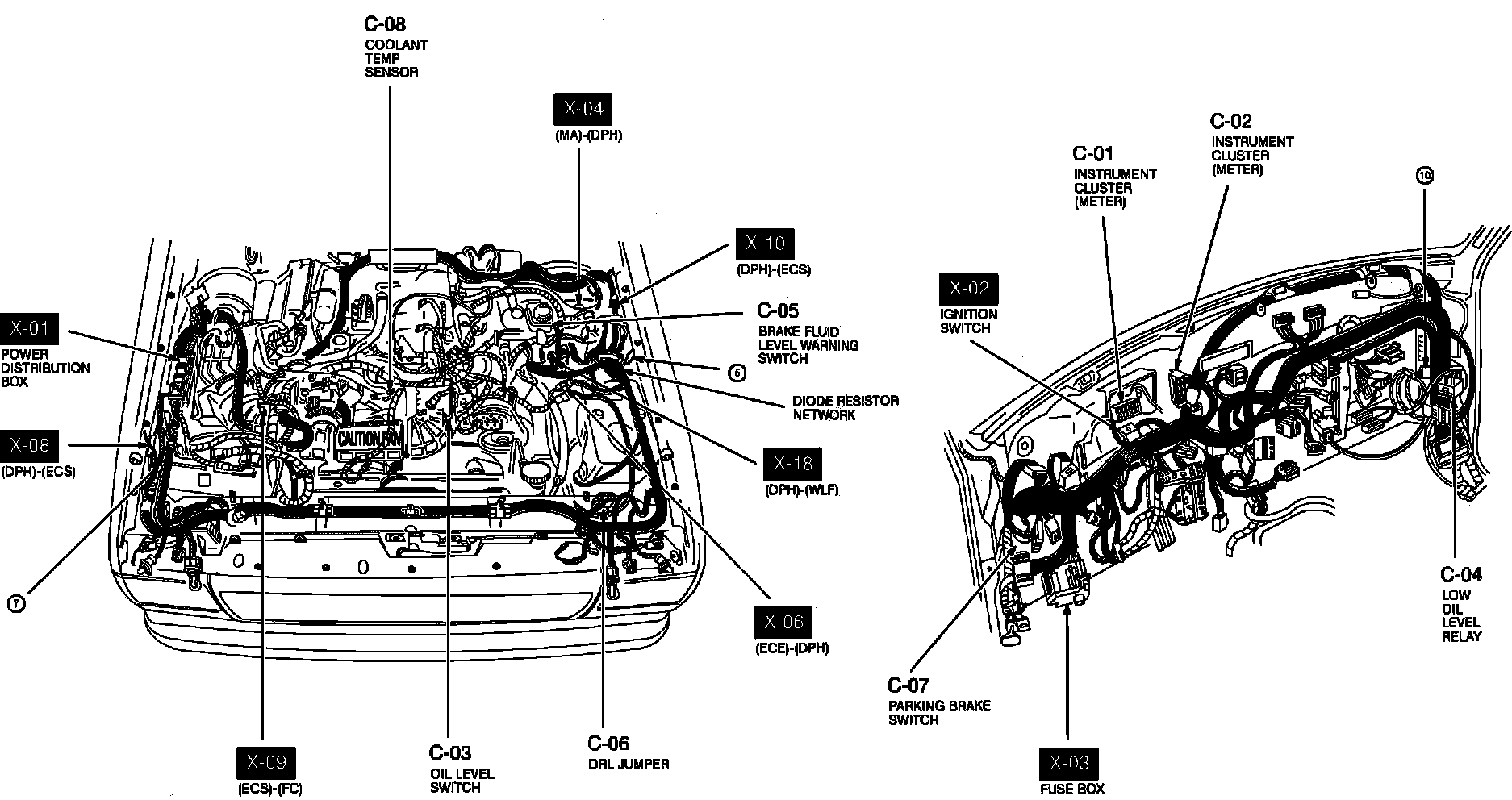

Instrument Cluster. Volt And Temperature Gauge. Tachometer. Brake, Rear ABS, Check Engine, 4X4, Low Range And Low Oil Indicators. Harness And Connector Locations:
