Condenser HVAC: Service and Repair

Removal / Installation

1. Discharge the refrigeration system.
2. Remove the radiator grille.
3. Remove the receiver/drier.

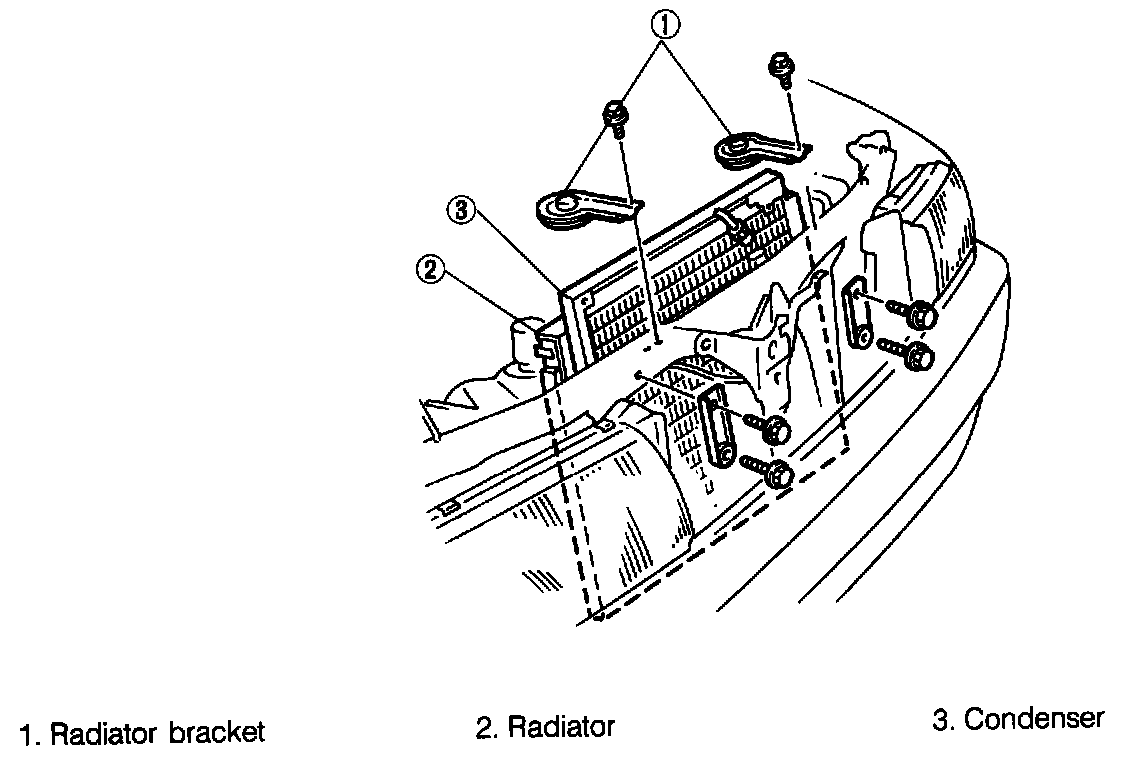

4. Remove the condenser as shown in the figure.

NOTE:
- Insert a protector such as cardboard between the condenser and the radiator.
- Immediately plug the open fittings to keep moisture out of the system.

5. Install the condenser in the reverse order of removal.

NOTE:
- Apply clean compressor oil to the 0-rings before connecting the fittings.
- Do not apply compressor oil to the fitting nuts.
- Remove the protector before installing the radiator brackets.
- When Installing a new condenser, add compressor oil through the high-pressure pipe port of the compressor.

Compressor oil: 30 cc (1.83 cu in)

Tightening torque
Condenser inlet: 15-25 N.m (1.5-2.5 m-kg, 11-18 ft-lb)
Condenser outlet: 9.8-20 N.m (1.0-2.0 mm-kg, 7.2-14 ft-lb)
