Fluid - M/T: Service and Repair

TRANSAXLE OIL REPLACEMENT

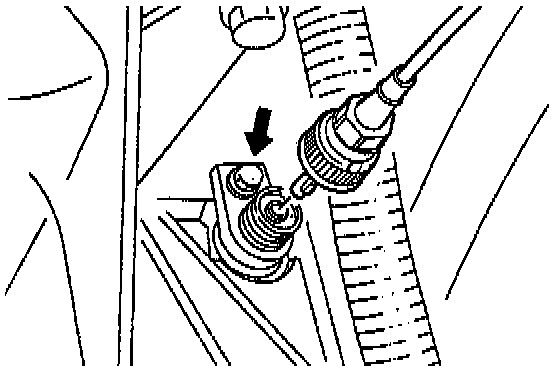

1. Disconnect the speedometer cable and remove the speedometer driven gear.

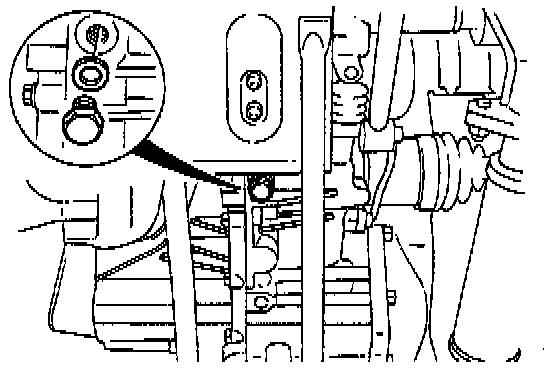

2. Remove the drain plug and washer. Drain the oil into a suitable container.
3. Install a new washer and the drain plug.

Tightening torque:
39-54 N.m (4.0-5.5 m-kg, 29-40 ft-lb)

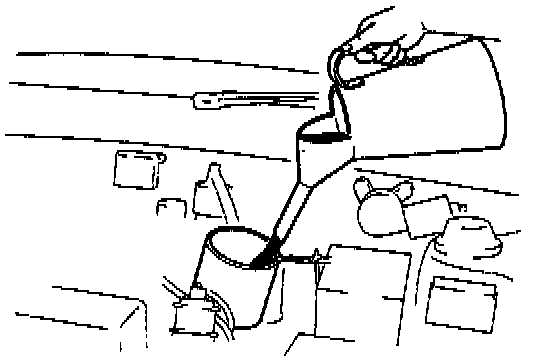

4. Add the necessary amount of the specified oil through the speedometer driven gear mounting.

Specified oil
Grade: API service GL-4
Viscosity: SAE 75W-90
Capacity: 2.68 liters (2.83 US qt, 2.36 Imp qt)

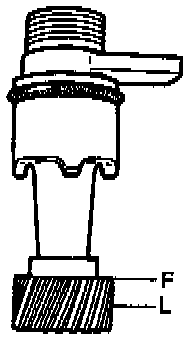

5. Verify the oil level.





6. Install the speedometer driven gear and connect the speedometer cable.
