Fluid - M/T: Testing and Inspection
TRANSAXLE OIL INSPECTION NOTE: Park the vehicle on level ground.
1.

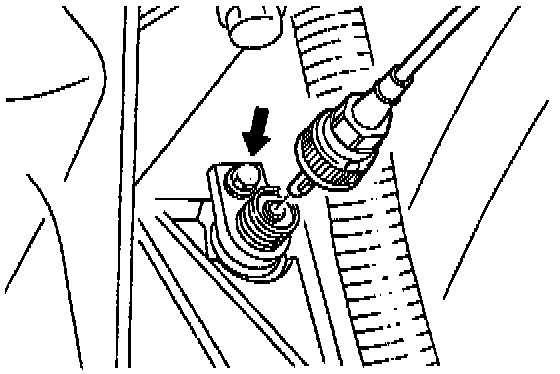

Disconnect the speedometer cable and remove the speedometer driven gear.
2.
Verify that the oil level is between the F and L.
3.
Install the speedometer driven gear.
Tightening torque:
7.8-12 N.m (80-120 cm-kg, 69-104 in-lb) 4.
Connect the speedometer cable.
