Malfunction Indicator Lamp: Testing and Inspection

Malfunction Indicator Light Testing:

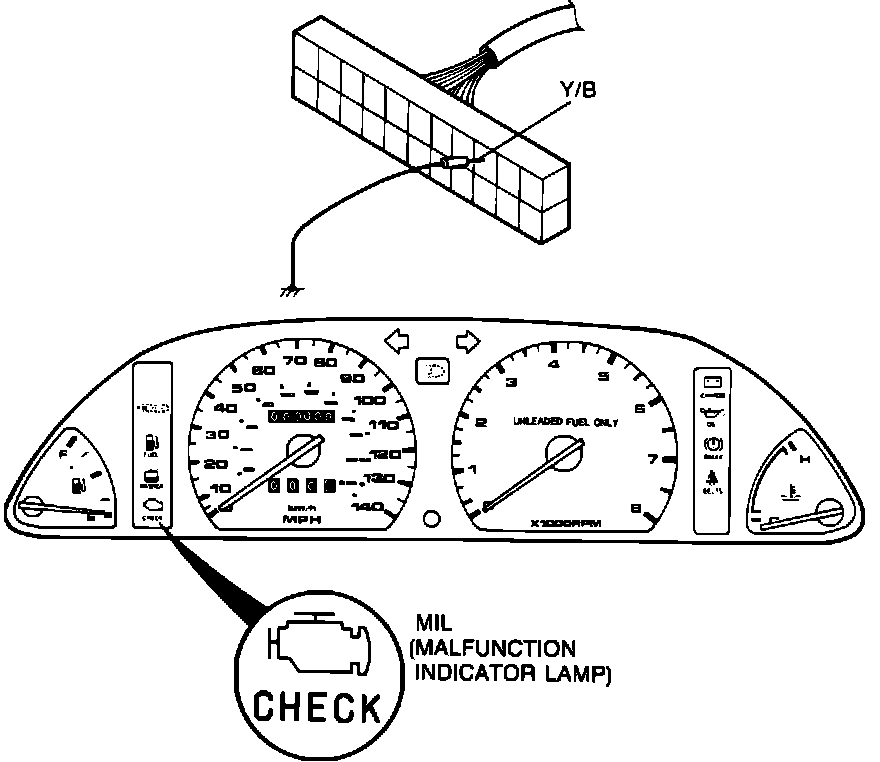

1. Connect a jumper wire between terminal 1D (Y/B) of combination meter connector and ground.
2. Start engine. MIL should light.
3. If not, check combination meter fuse, MIL bulb and wiring harness between meter and ECU. Repair as necessary.

MIL output voltage can be checked at ECU. With lamp "ON," voltage should be below 2.5V. With lamp "OFF," voltage should be approximately 12V.
