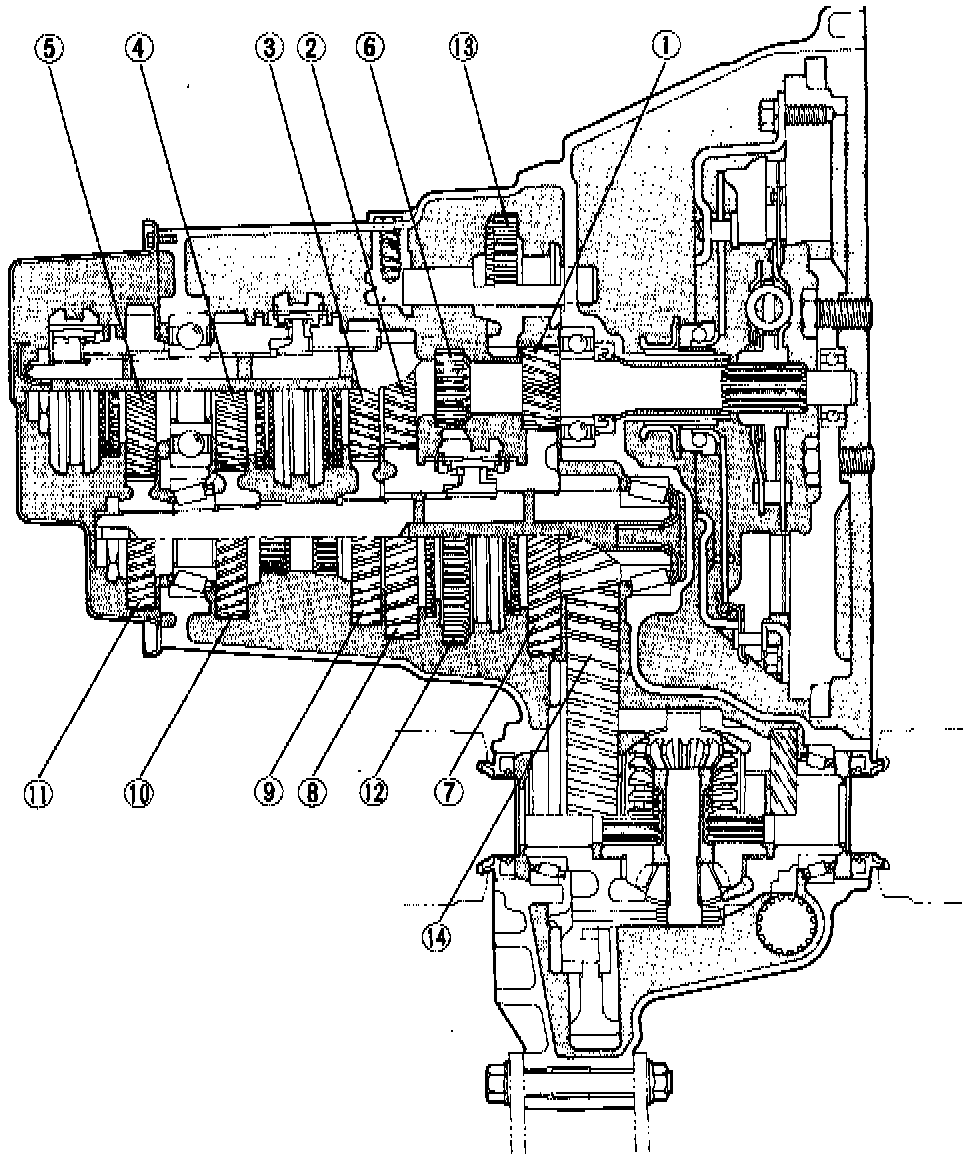

Cross-Sectional View

F5M-R Transaxle:

1. Primary 1st Gear
2. Primary 2nd Gear
3. Primary 3rd Gear
4. Primary 4th Gear
5. Primary 5th Gear
6. Primary Reverse Gear
7. Secondary 1st Gear
8. Secondary 2nd Gear
9. Secondary 3rd Gear
10. Secondary 4th Gear
11. Secondary 5th Gear
12. Secondary Reverse Gear
13. Reverse Idler Gear
14. Differential
