EGR Valve Position Sensor: Description and Operation

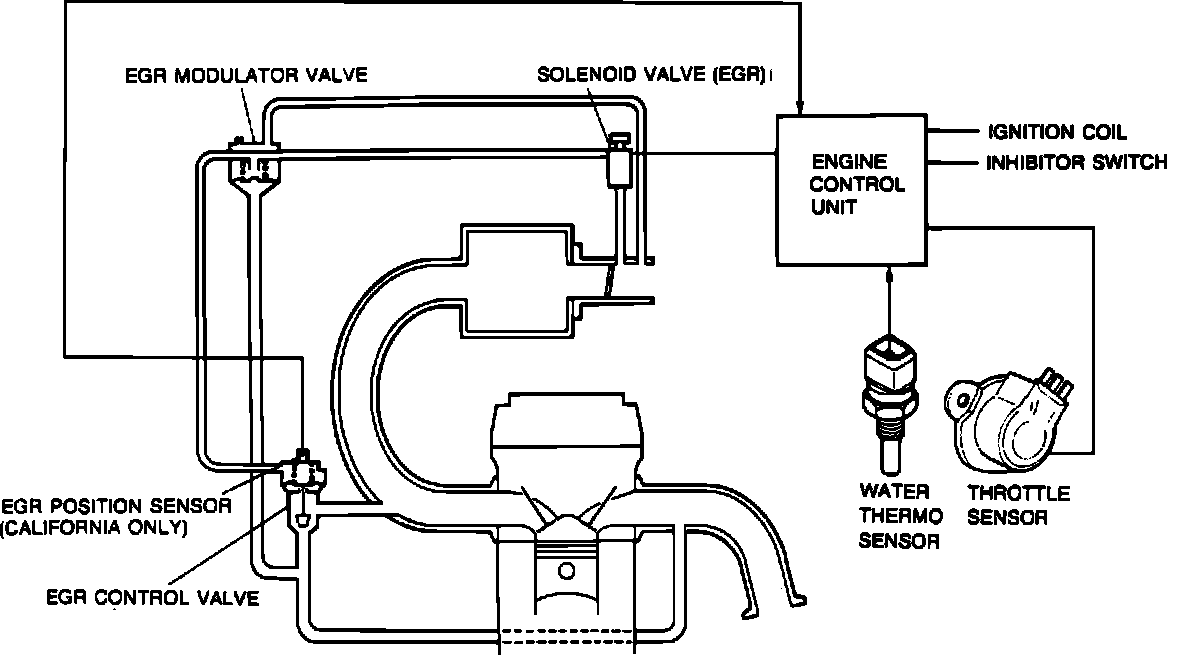

Fig. 124 EGR System:
^
The
EGR Position Sensor is incorporated in the EGR valve assembly.
^
Sensor is a variable resistor that detects EGR control valve lift.
^
ECU uses this information and other inputs to optimize EGR system operation through its control of the EGR solenoid valve.
