Central Processing Unit

REMOVAL and INSTALLATION
1. Disconnect the negative battery cable.
2. Disconnect the CPU connectors.

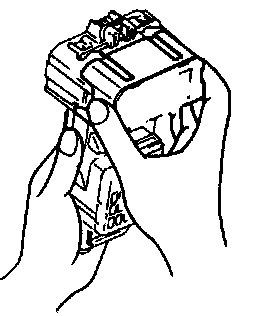

3. Release the lock and remove the CPU from the joint box.
4. Install in the reverse order of removal

ON-VEHICLE INSPECTION

Note
^ Check the voltage between "a through I" terminal and ground.
^ Check the continuity between "m, n" terminal and ground.
