Control Module: Testing and Inspection


1. With ignition switch "ON," check EC-AT control unit terminal voltages, referring to terminal voltage chart.
2. If not correct, check and replace or repair defective component(s) and/or wiring.
3. If voltages are not correct and no other cause is detected, replace control unit.

TERMINAL VOLTAGE CHART

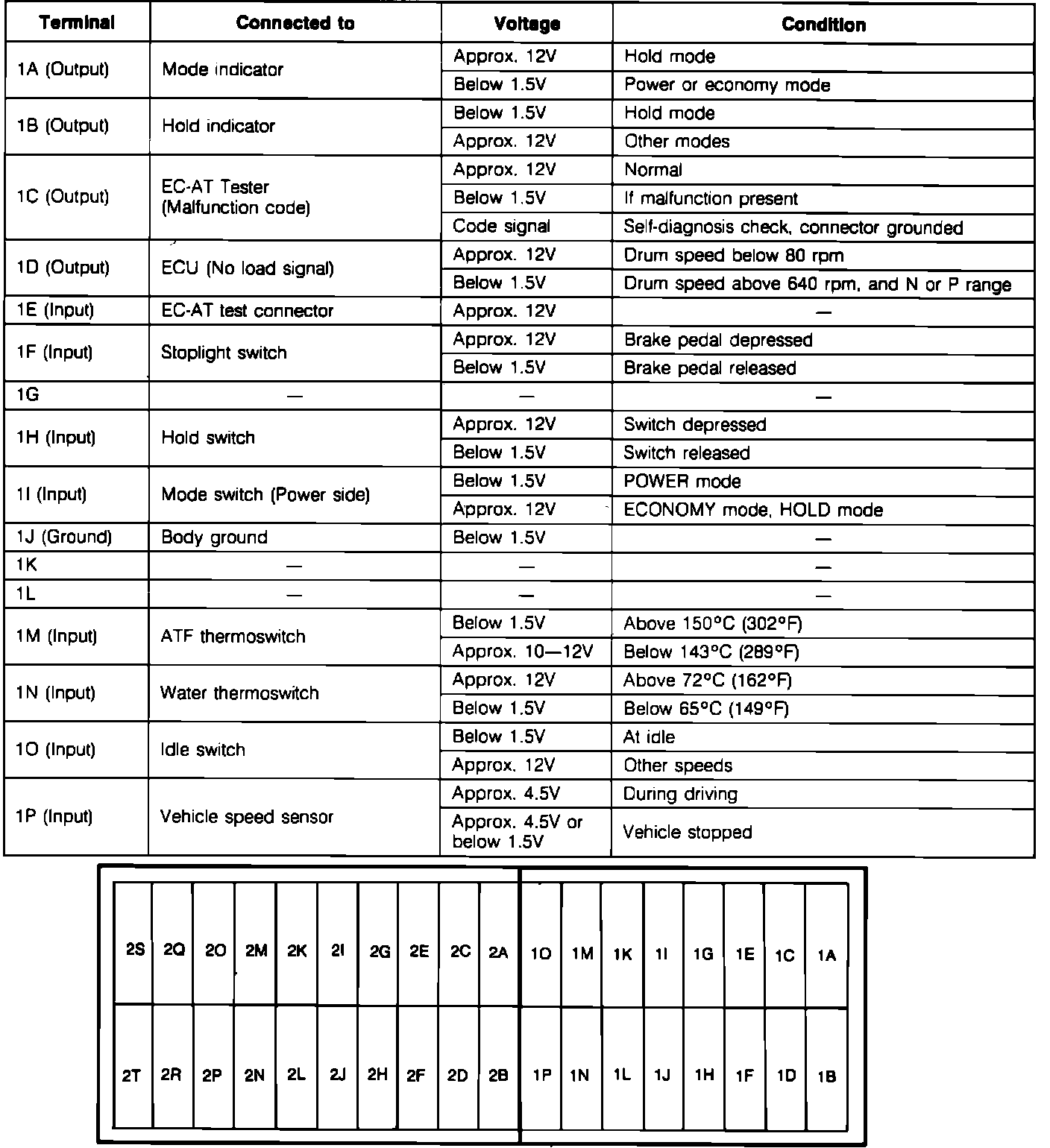

Part 1

EC-AT Control Unit Pin Voltage Chart (Part 1):

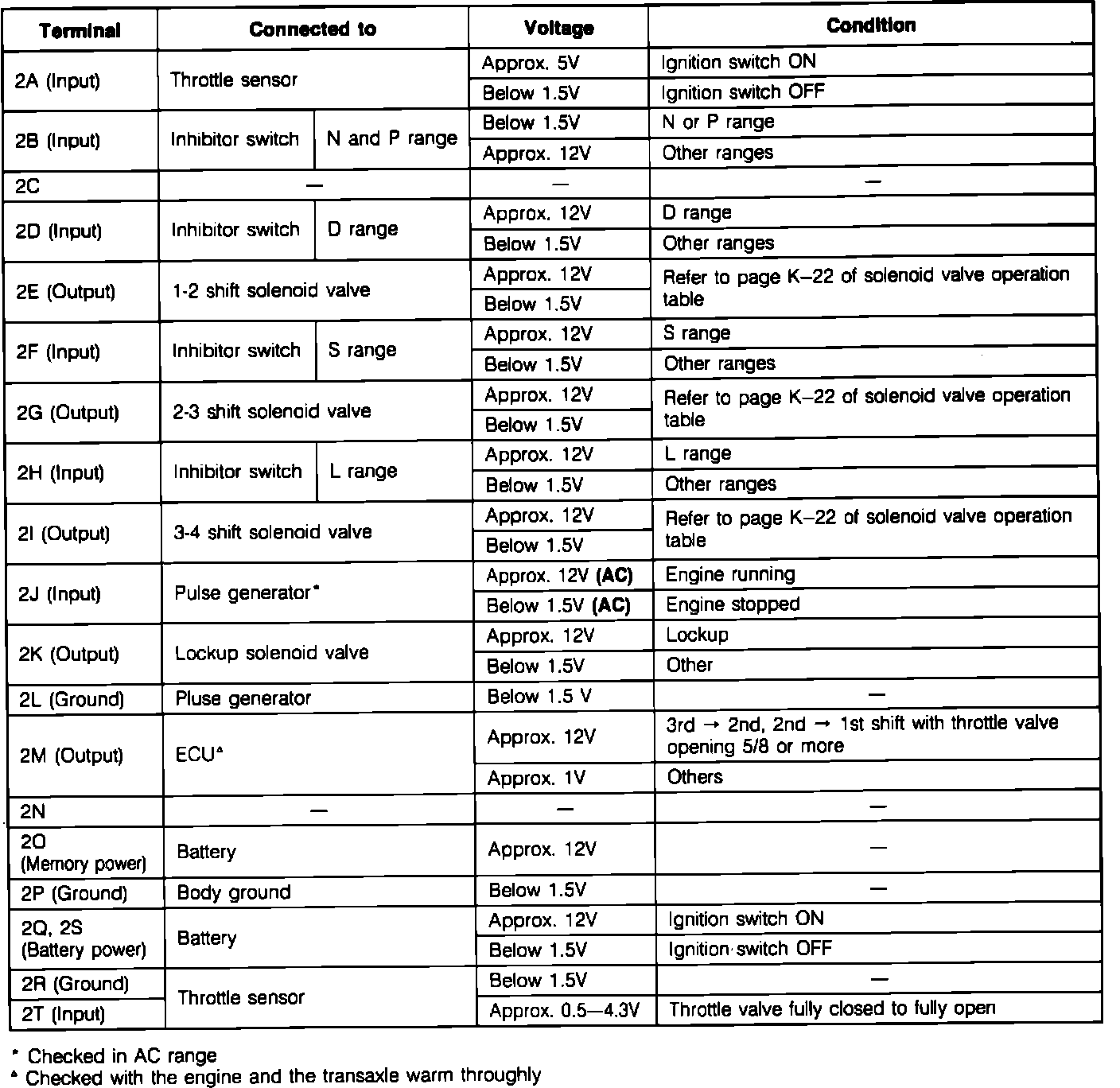

Part 2

EC-AT Control Unit Pin Voltage Chart (Part 2):
