Vehicle Speed Sensor: Testing and Inspection

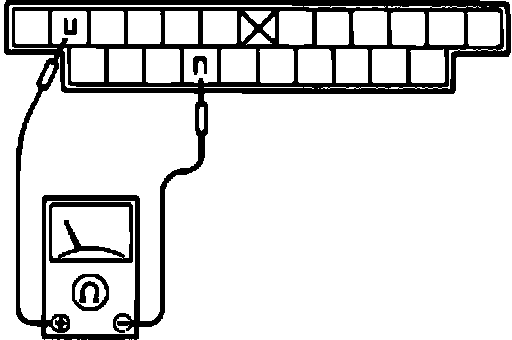

Fig. 21 Speed Sensor Terminal Identification.:
1.
Remove combination meter.
2.
Connect ohmmeter and check for continuity between terminals 1U and 1N,
Fig. 21. 3.
Ensure there is four pulses per shaft rotation, if not replace
speed sensor.
