Heater Control Valve: Service and Repair
HEATER CONTROL UNITRemoval / Installation 1.
Disconnect the negative battery cable.
2.

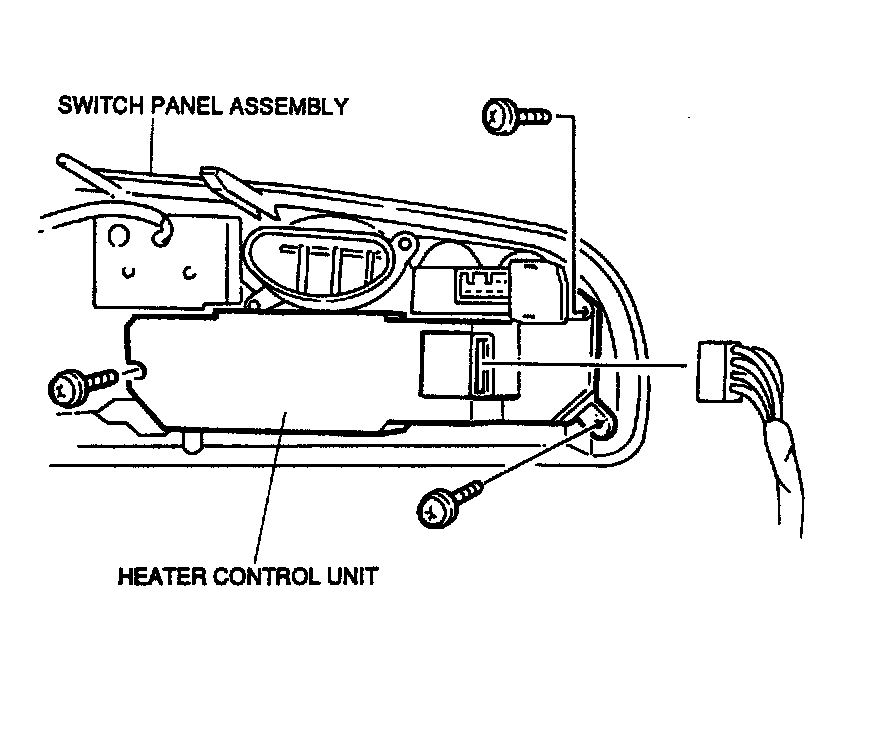

Remove as shown in the image.
3.
Install in the reverse order of removal.
Note: After installing the heater control unit, check its operation.
