Heater Core: Service and Repair

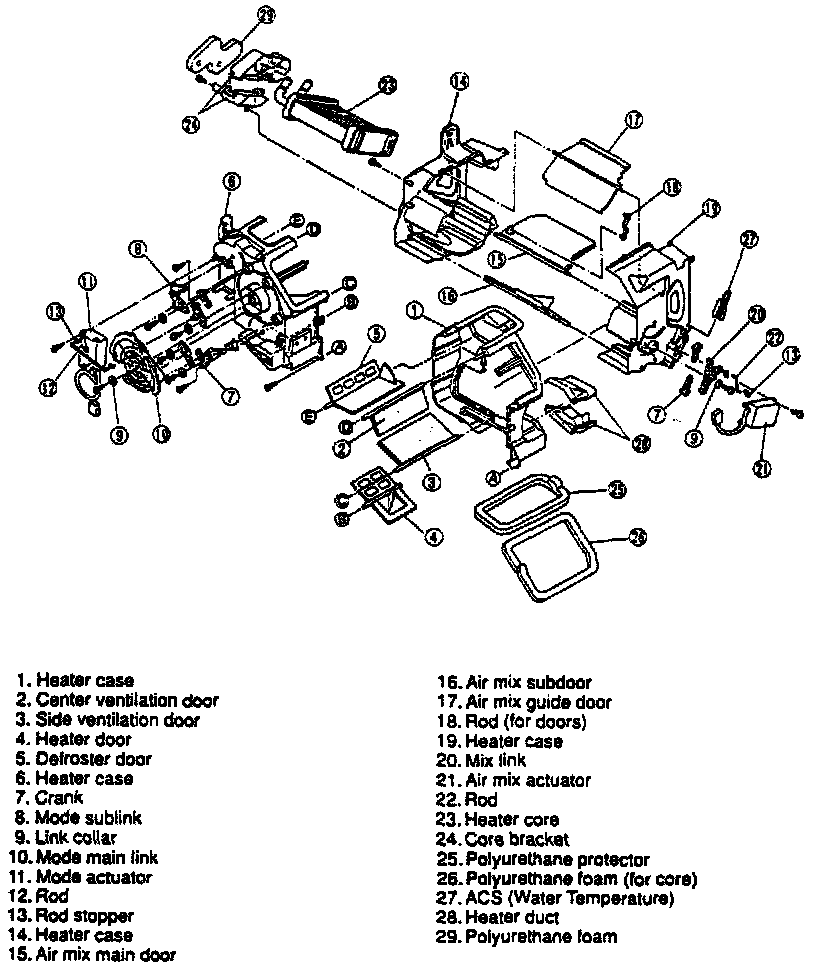

Fig. 2, Exploded View Of Heater Unit:
1.
Drain
cooling system.
3.
Remove instrument panel.
4.
Remove cooling unit.
5.
Remove heater unit from engine cowl.
6.
Disassemble heater unit in order shown in
Fig. 2. 7.
Reverse procedure to install.
