Catalytic Converter: Service and Repair
Catalytic Converter R&R:
^
Remove in sequence shown.
^
Check all components for damage, deterioration, and restriction. Repair or replace as needed.
^
Install in reverse order of removal.

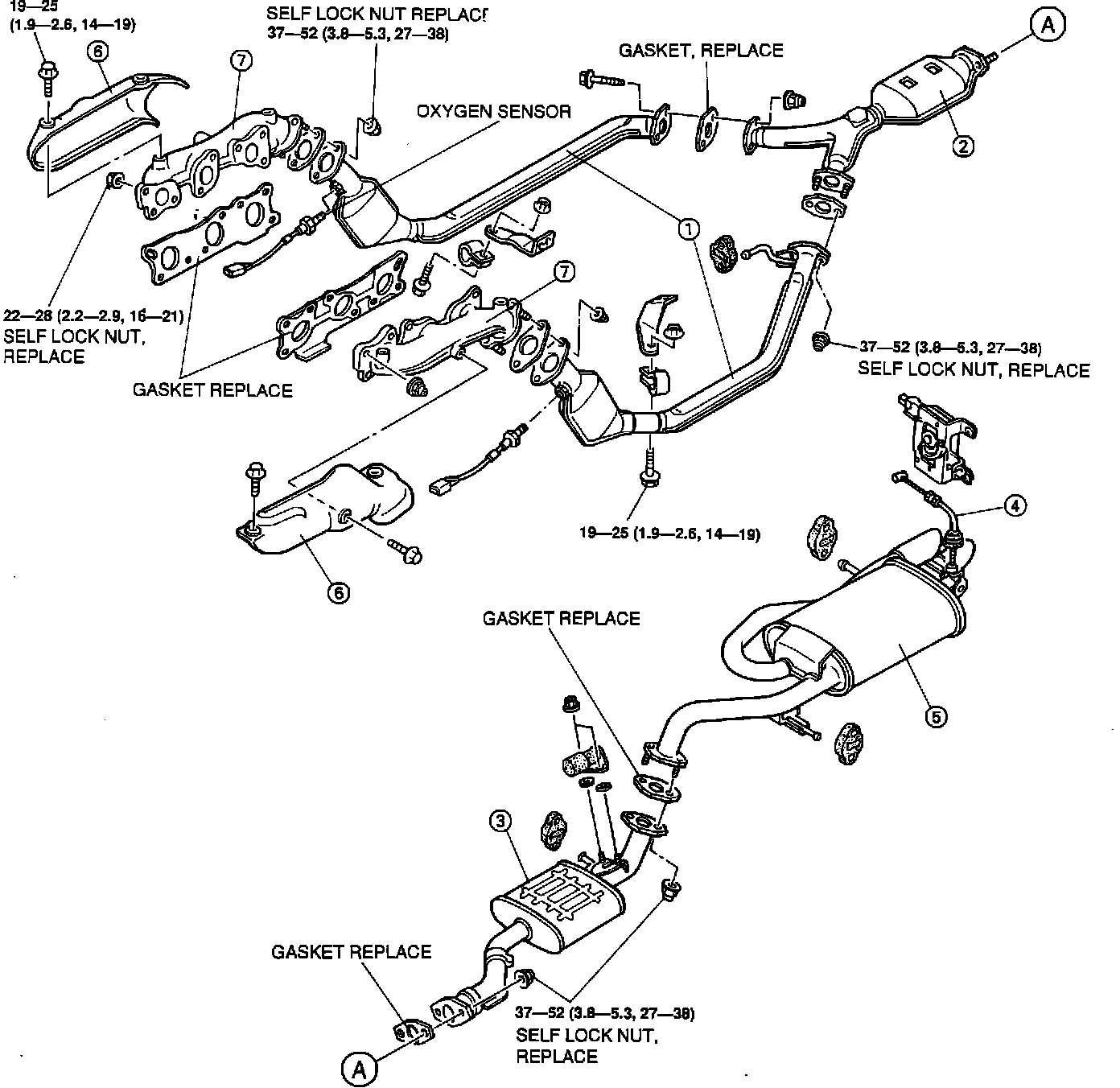

COMPONENTS1.
Front pipe assembly.
2.
Catalytic converter.
3.
Pre-silencer.
4.
Air control motor cable.
5.
Main silencer.
6.
Exhaust manifold insulator.
7.
Exhaust manifold.
