Windshield Washer Level Sensor - Connector

Bulletin No. 013/95
Issued 10/24/95
Revised

Category
T

Applicable Model/s
1992-95 929

Subject
WINDSHIELD WASHER "LEVEL SENSOR" CONNECTOR DISCONTINUED

APPLICABLE MODELS/VINS

All 1992 - 95 929 model vehicles with a VIN of JM1HD461*S0404281 and lower.

DESCRIPTION

Vehicles produced without windshield washer fluid level sensors had a dummy connector attached to the fluid reservoir. This connector was installed to prevent the harness connector from hanging free and becoming a source of noise.

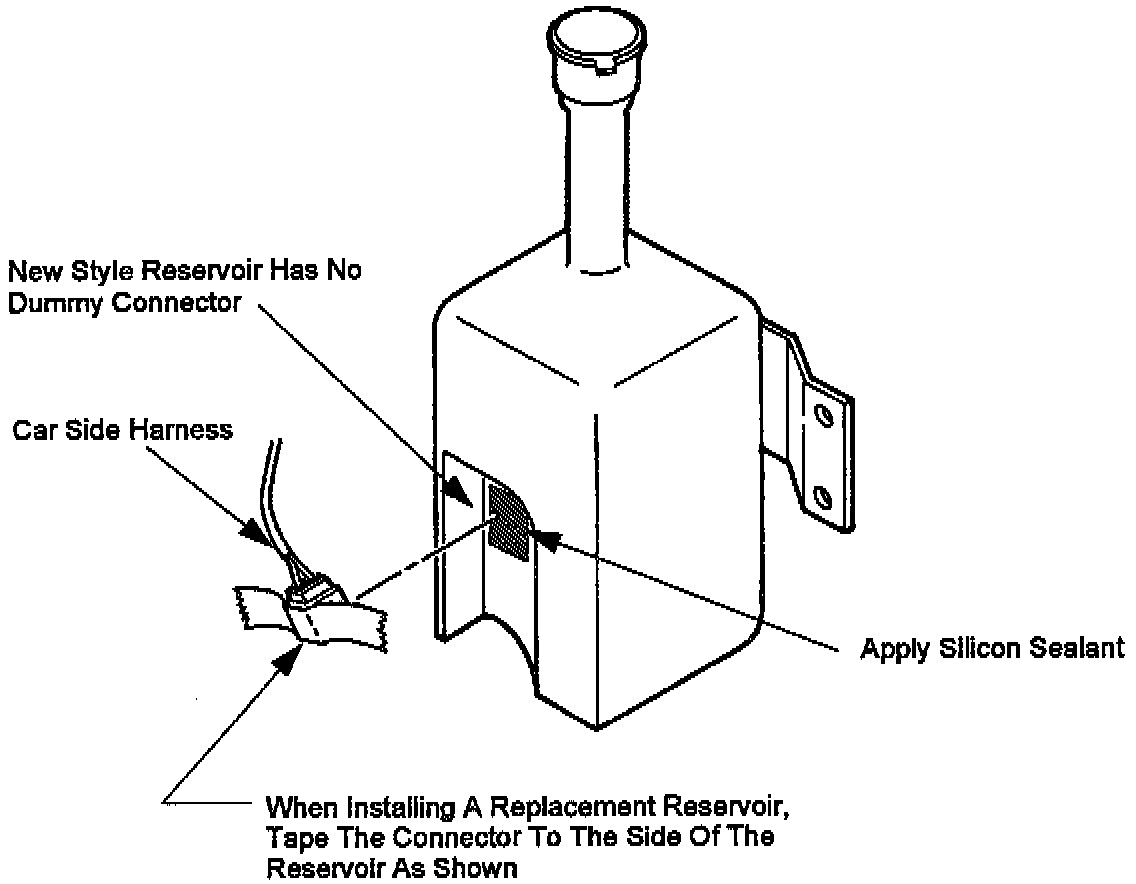

If a replacement windshield washer reservoir (without a dummy connector) is installed on a customer's vehicle, tape the harness in place to prevent noise from vibration. Refer to the illustration.
