Shift Interlock Switch: Testing and Inspection




Inspection
1. Disconnect the negative battery cable.
2. Remove the front and rear console.
3. Remove the indicator screws and lift up the indicator panel.

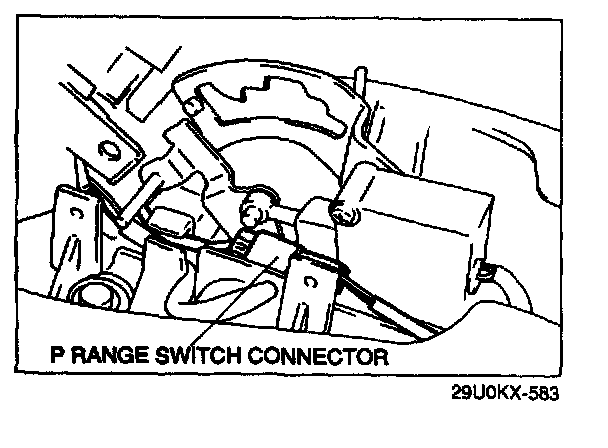

4. Disconnect the P range switch connector.

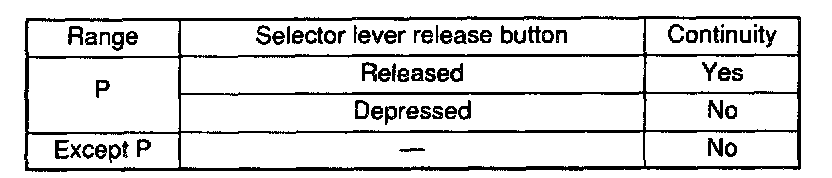

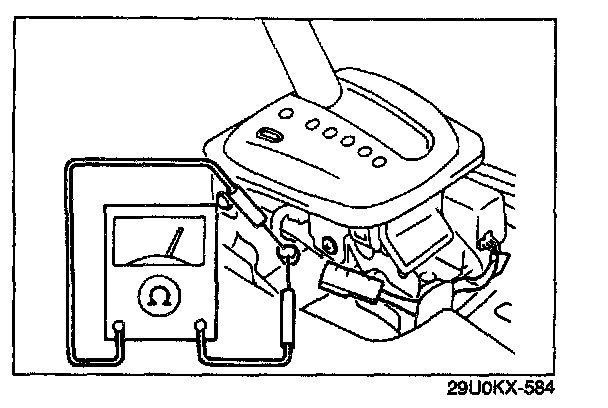

5. Check continuity between the terminals.
6. If not as specified, replace the P range switch.
7. Connect the P range switch connector.
8. Install and adjust the indicator panel.
9. Install the front and rear console.
10. Connect the negative battery cable.
11. Check for correct operation of the shift-lock system.
