Home >> Mazda >> 1992 >> B Series Truck 2WD L4-2184cc 2.2L 2200 2-bbl >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Computers and Control Systems >> Ignition System, Engine Control System

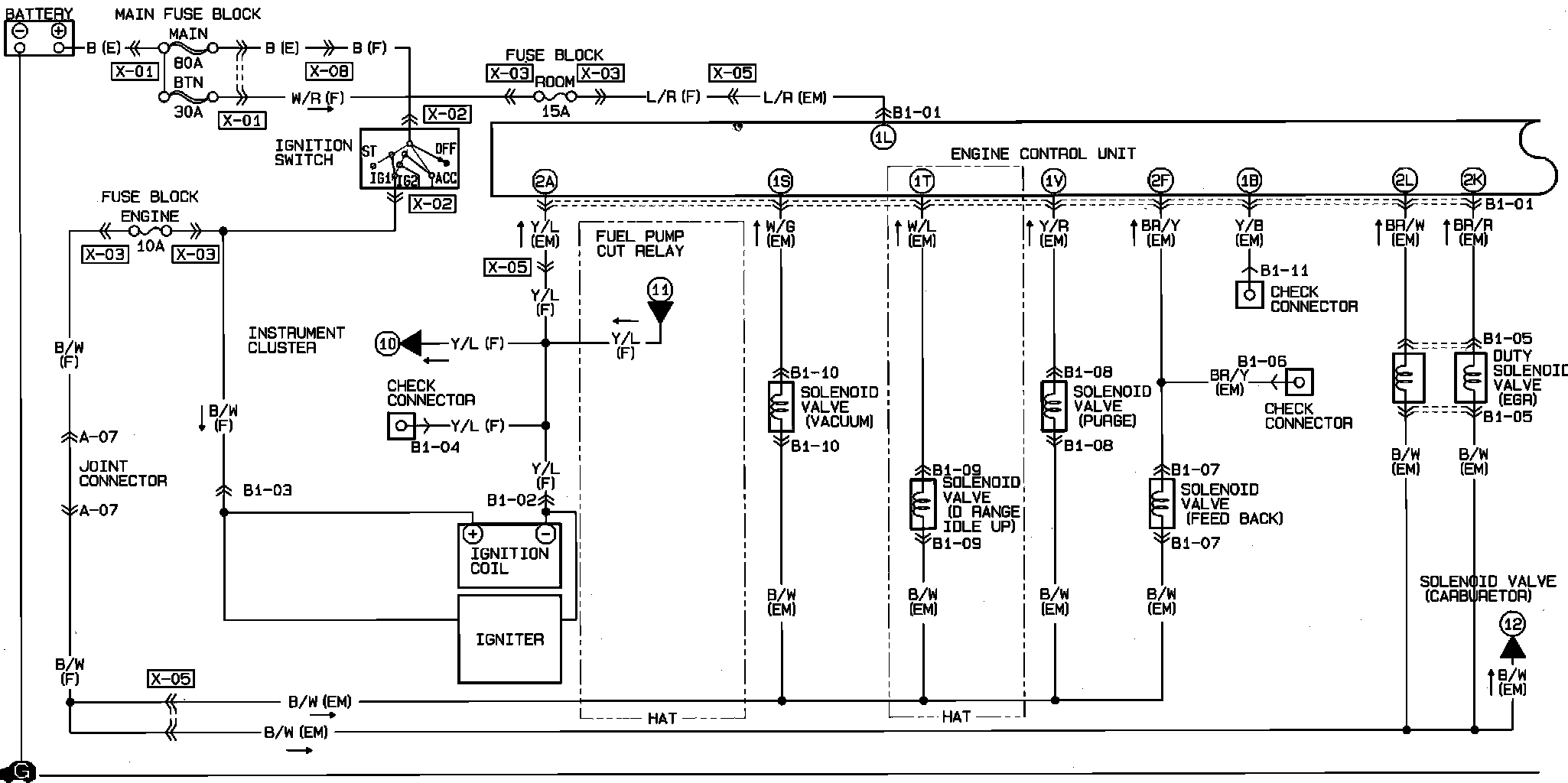

Ignition System, Engine Control System

�\�%Ignition And Feedback System:
