Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
1992
>>
B Series Truck 2WD L4-2184cc 2.2L 2200 2-bbl
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Diagrams
>>
Connector Views
Connector Views

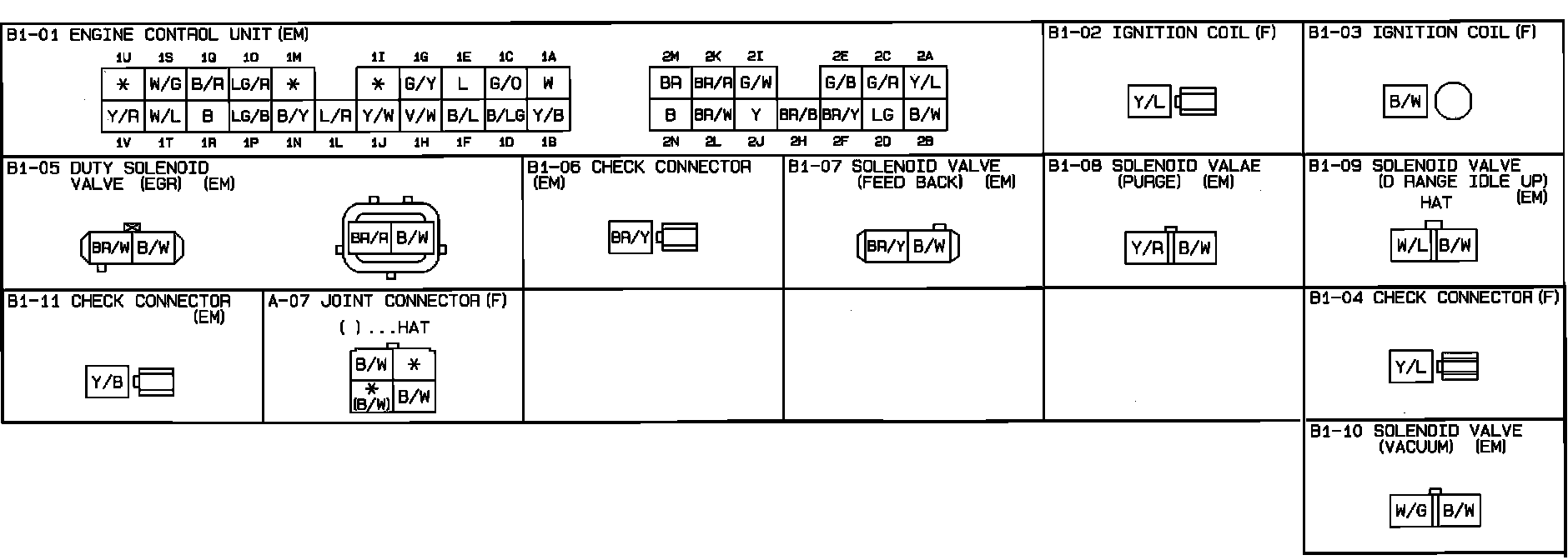

Ignition And Feedback System. Connector Identification:
