Computers and Control Systems: Locations

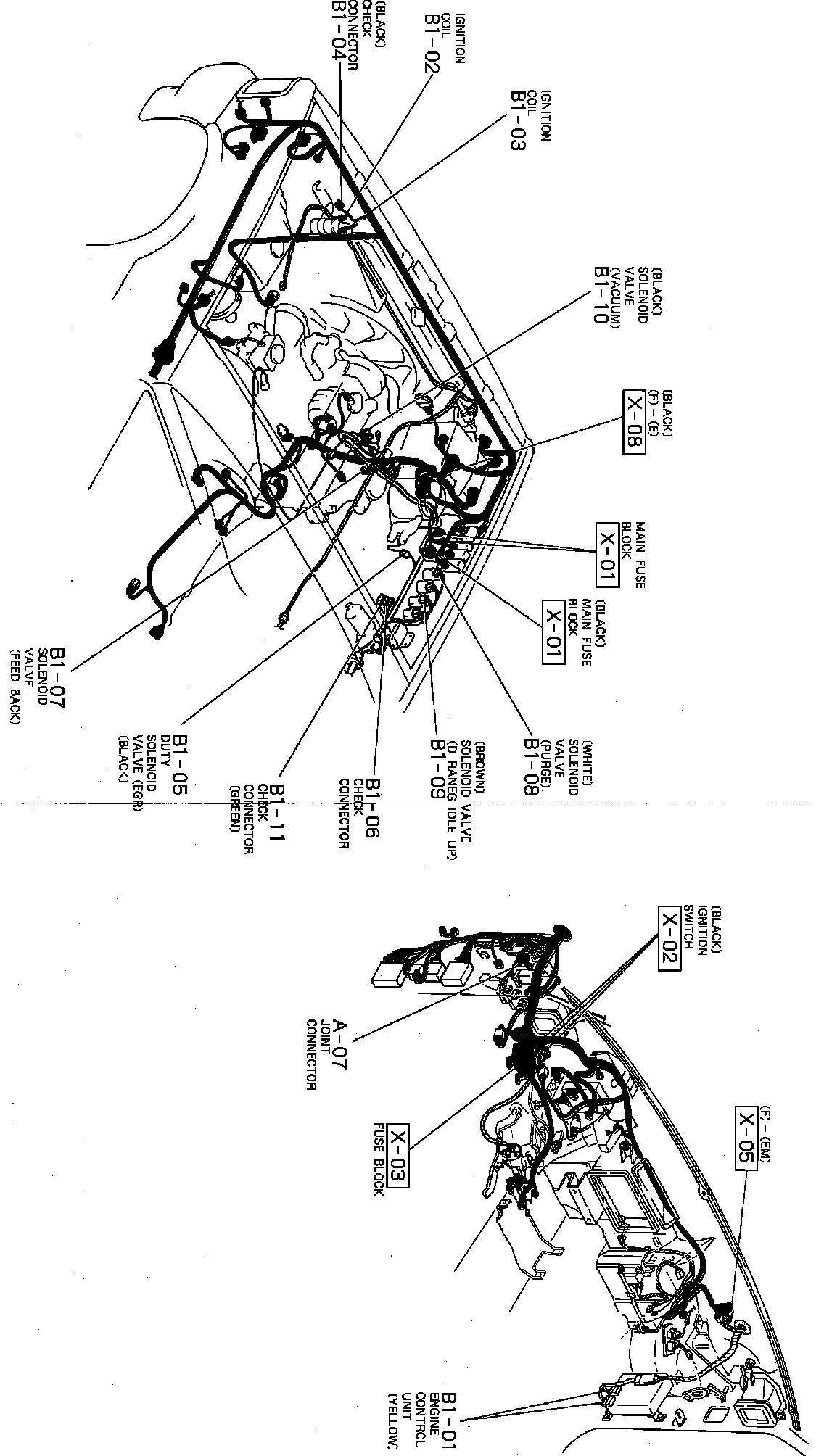

Ignition And Feedback System. Harness And Connector Locations:
