Control Module: Locations

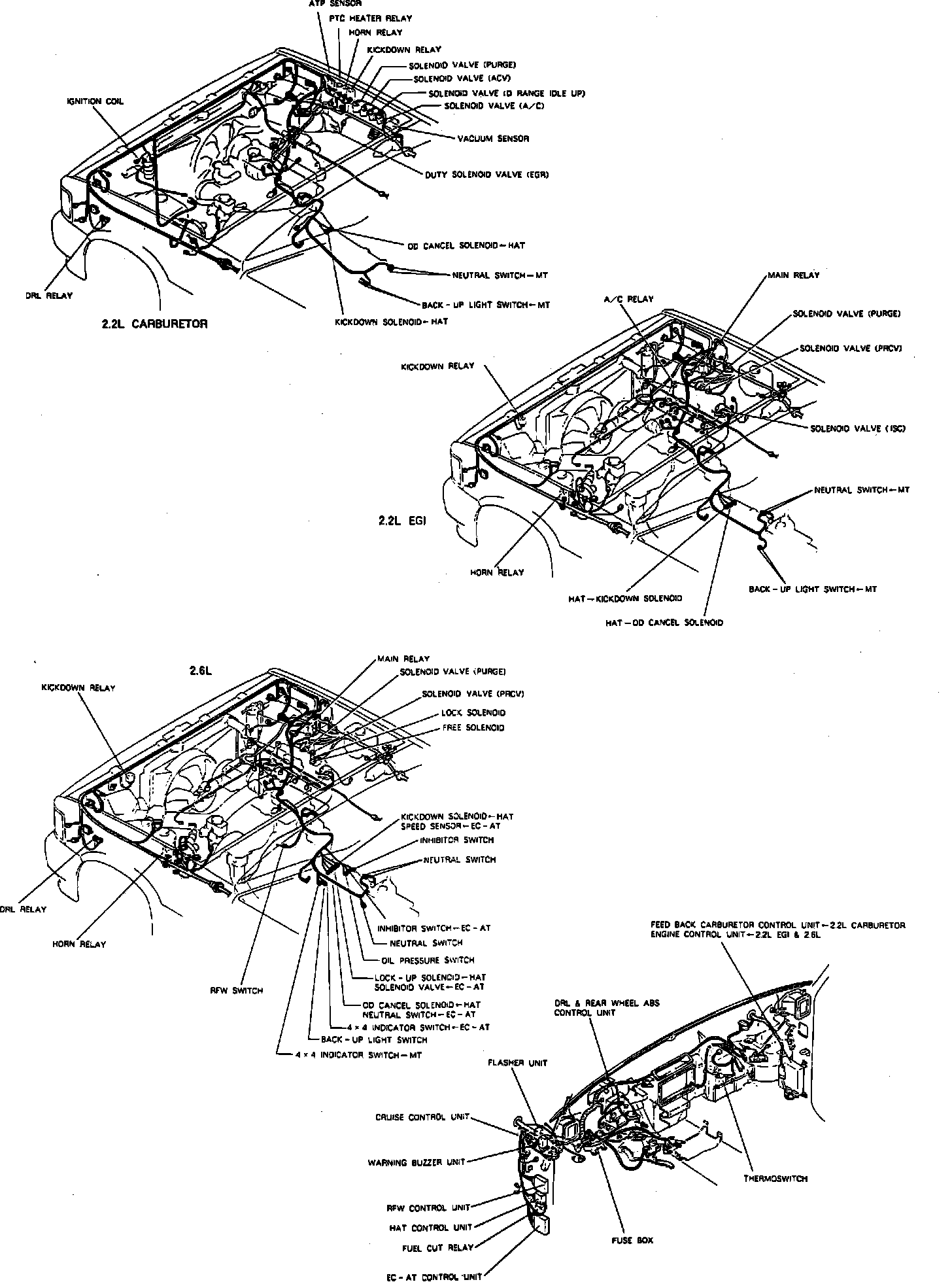

I/P & Engine Compartment Components:




Behind LH Side Of Engine Compartment
