Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
1992
>>
MPV 2WD V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Locations
>>
Front
Front

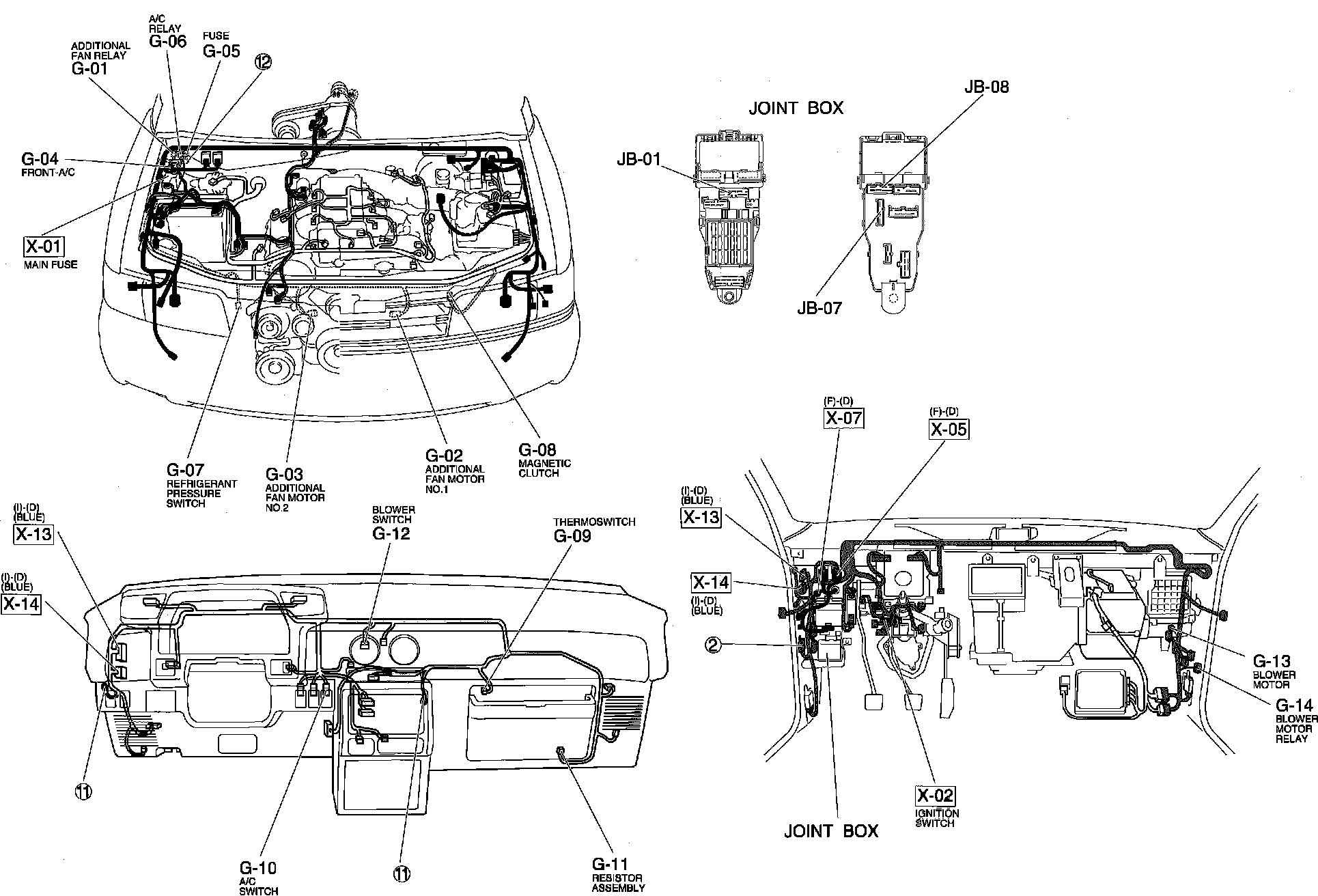

Heater And Air Conditioner. Harness And Connector Locations:
