Pick-Up Coil: Testing and Inspection

Testing Pick-up Coils:

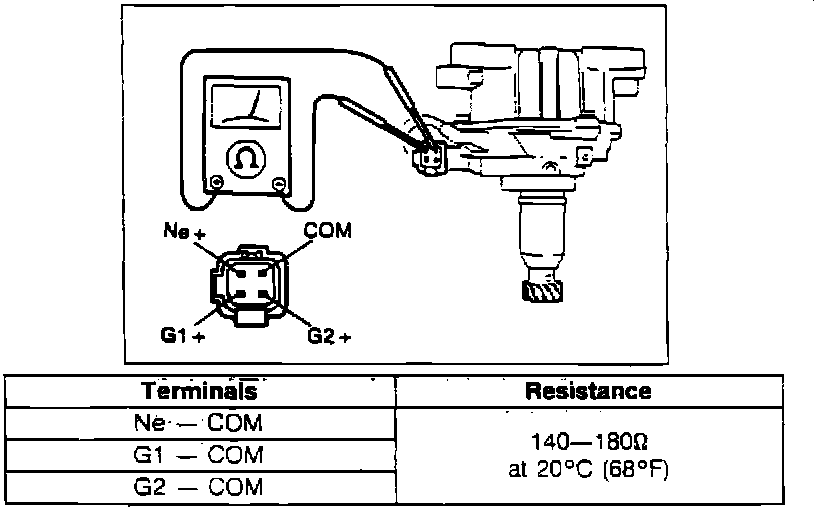

1. Measure resistance through pick-up coils at terminals as shown in illustration.
2. If not within specification, replace pick-up coil assembly.
