AT Control System
AT Control System

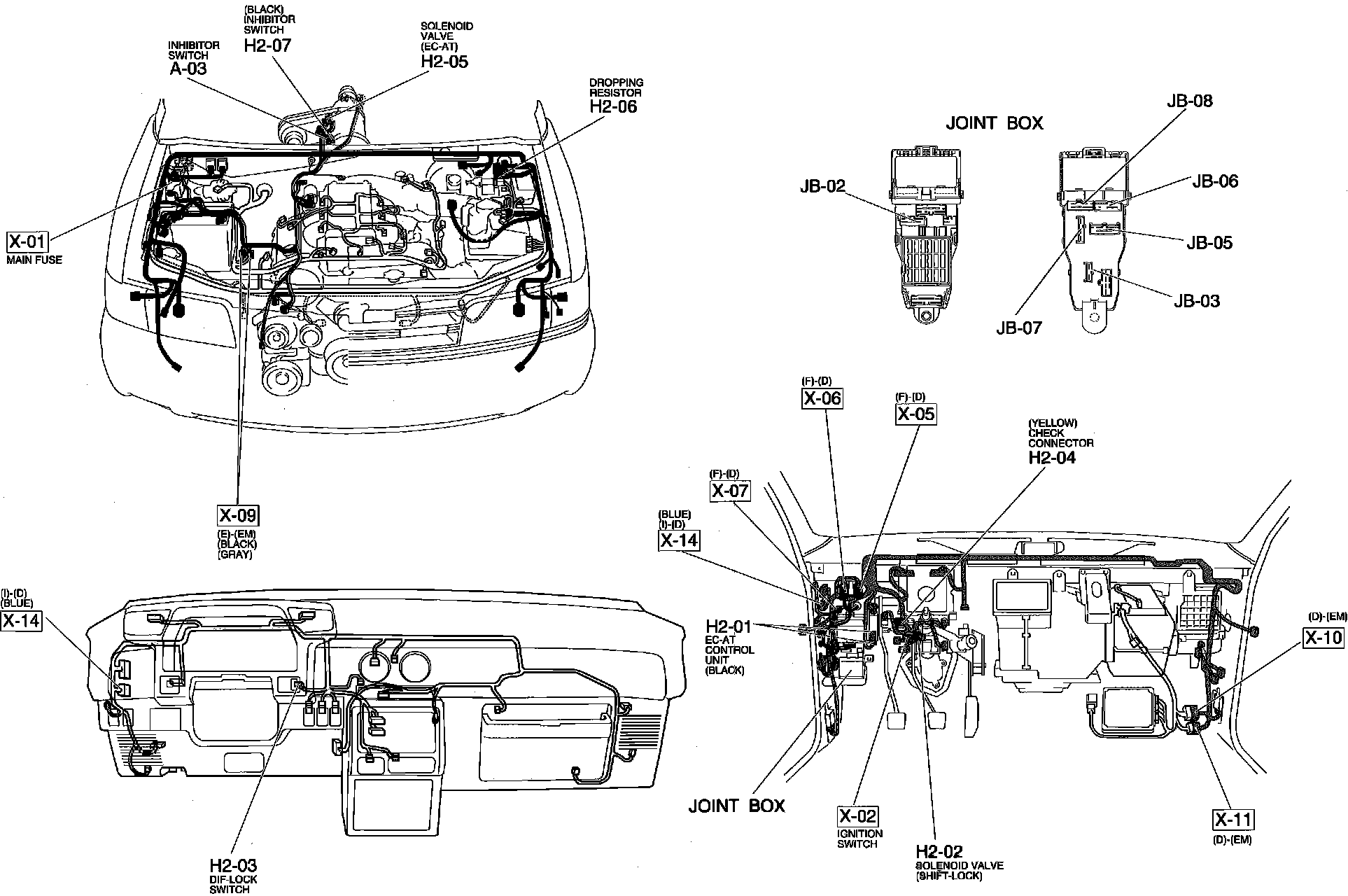

EC-AT Control System And Shift Lock System. Harness And Connector Locations:
