Catalytic Converter: Service and Repair

Catalytic Converter R&R:

^ Remove in sequence shown.
^ Check all components for damage, deterioration, and restriction. Repair or replace as needed.
^ Install in reverse order of removal.

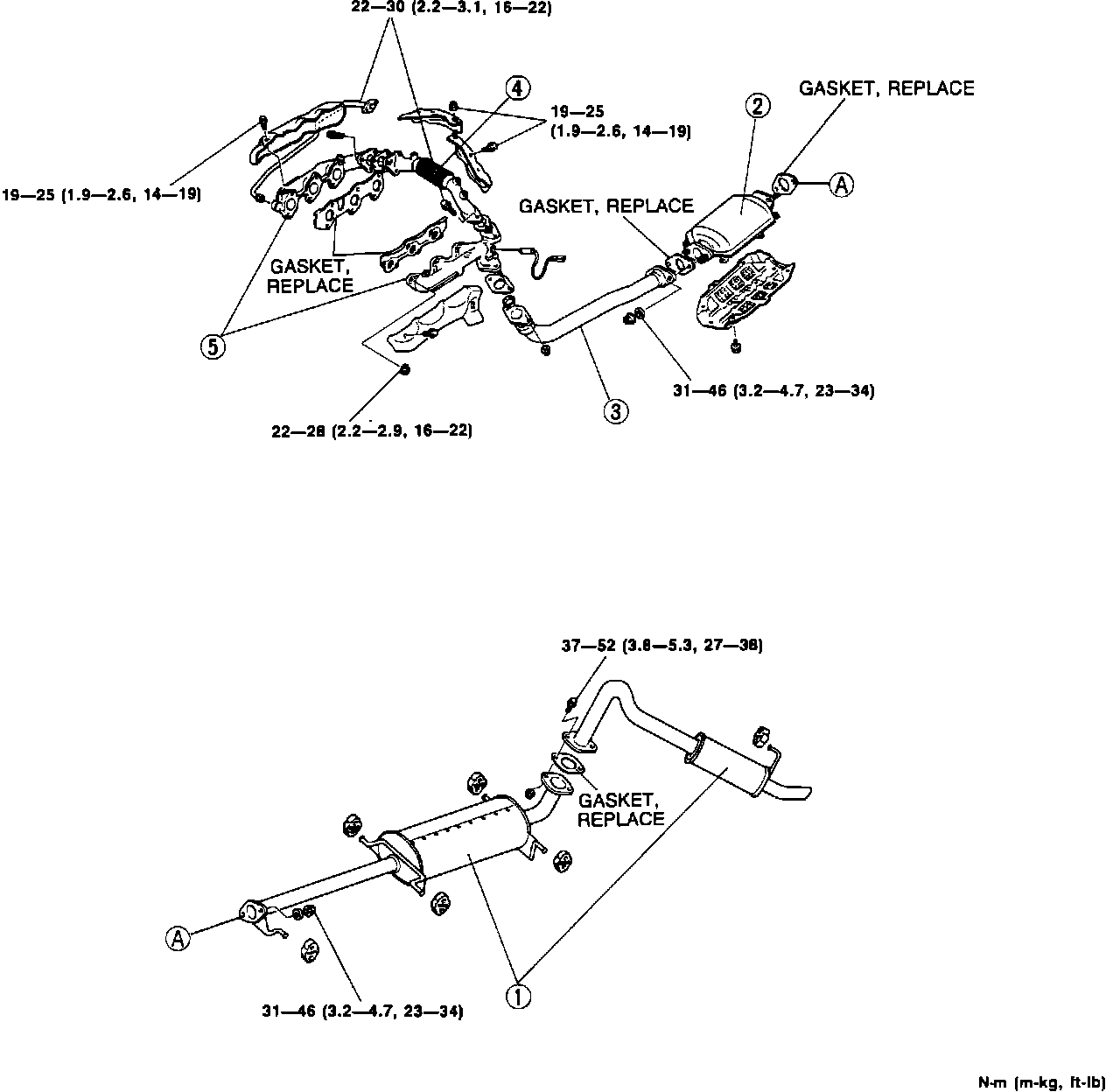

COMPONENTS

1. After silencer and main silencer.
2. Catalytic converter.
3. Front exhaust pipe.
4. Center exhaust pipe.
5. Exhaust manifolds.
