Home >> Mazda >> 1992 >> MPV L4-2606cc 2.6L SOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Automatic Transmission/Transaxle >> Control Module, A/T

Control Module, A/T

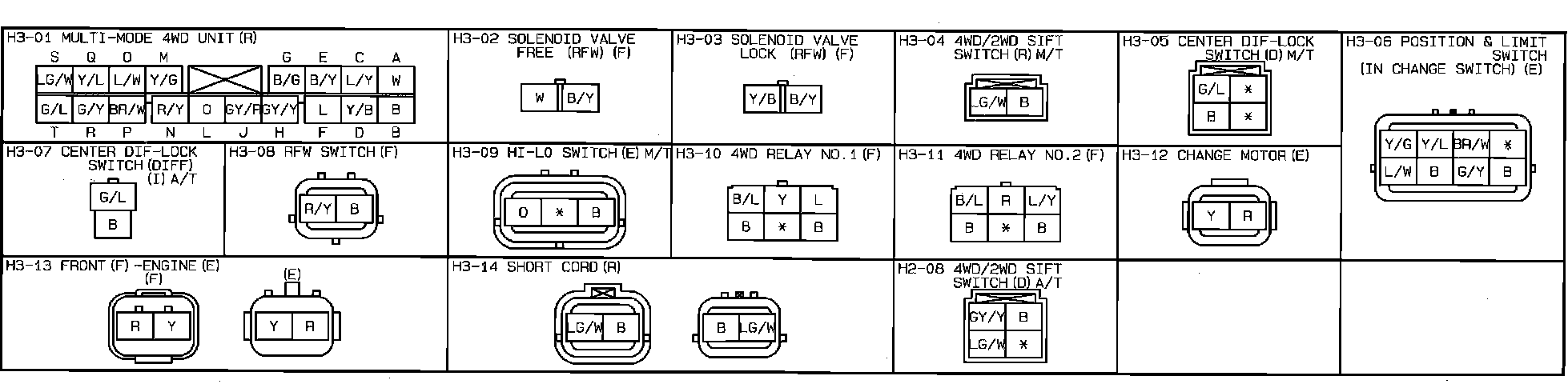

Multi-Mode 4WD System. Connector Identification:
